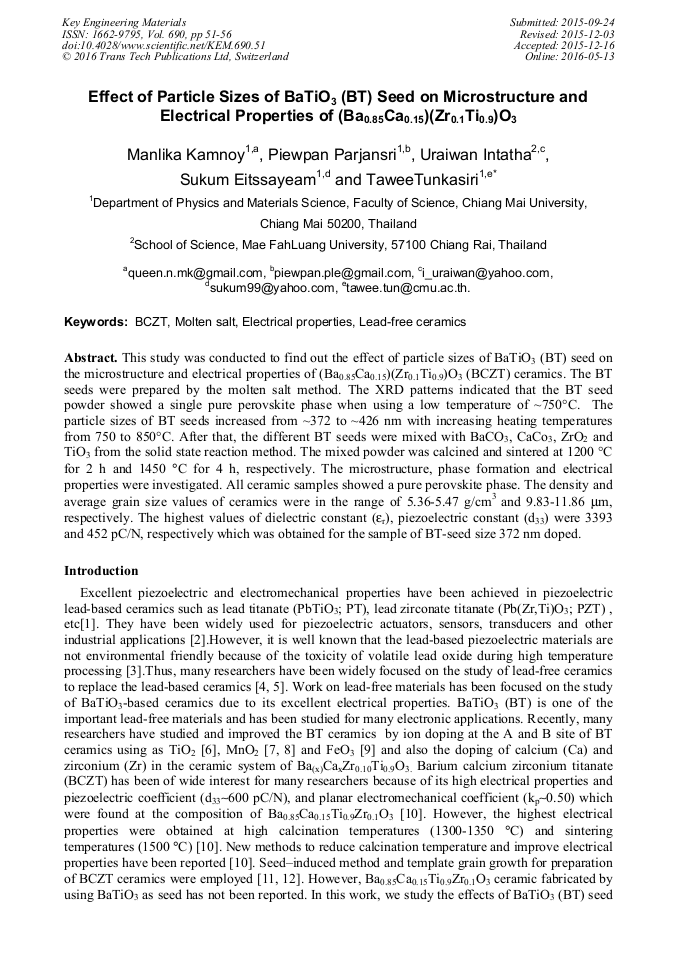

Effect of Particle Sizes of BaTiO₃ (BT) Seed on Microstructure and Electrical Properties of (Ba_0.85Ca_0.15)(Zr_0.1Ti_0.9)O₃

Abstract:

The study was conducted to find out the effect of particle sizes of BaTiO₃ (BT) seed on the microstructure and electrical properties of (Ba_0.85Ca_0.15)(Zr_0.1Ti_0.9)O₃ (BCZT) ceramics. The BT seeds were prepared by the molten salt method. Results indicated that the BT seed powder showed a single pure perovskite phase when using a low temperature of ~750°C. The particle sizes of BT seeds increased from ~381 to ~600 nm with increasing heating temperatures from 750 to 900°C. After that, the different BT seeds were mixed with BaCO₃, CaCo₃, ZrO₂ and TiO₃ via the solid state reaction method. The mixed powder was calcined and sintered at 1200 °C for 2 h and 1450 °C for 4 h, respectively. The microstructure, phase formation and electrical properties were investigated. All ceramic samples showed a pure perovskite phase. The density and average grain size values of ceramics were in the range of 5.36-5.47 g/cm³ and 9.83-11.86 μm, respectively. The highest values of dielectric constant (ε_r), piezoelectric constant (d₃₃) were 3393 and 452 pC/N, respectively which obtained at the sample of BT-seed size 372 nm doped.

• Periodical: Key Engineering Materials (Volume 690)
• Pages: 51-56
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.690.51
• Online since: May 2016
• Authors: Manlika Kamnoy, Piewpan Parjansri, Uraiwan Intatha, Sukum Eitssayeam, Tawee Tunkasiri*
• Keywords: BCZT, Electrical Properties, Lead-Free Ceramics, Molten Salt

References

[1] G. Haertling, Ferroelectric Ceramics: History and Technology, J. Am. Ceram. Soc. 82 (1999) 797–818.

[2] B. Noheda, D.E. Cox, G. Shirane, Stability of the monoclinic phase in the ferroelectric perovskite PbZr1-xTixO3, PhysRevB. 63 (2000) 014103 1-9.

[3] E. Cross, Lead-free at last, Nature. 432 (2004) 24-25.

[4] M. Chandrasekhar, P. Kumar, Synthesis and characterizations of BNT–BT and BNT–BT–KNN ceramics for actuator and energy storage applications, J. ceramint. 41 (2015) 5574–5580.

DOI: 10.1016/j.ceramint.2014.12.136

[5] P. Kumar, M. Pattanaik, Sonia, Synthesis and characterizations of KNN ferroelectric ceramics near 50/50 MPB, J. ceramint. 39 (2013) 65–69.

DOI: 10.1016/j.ceramint.2012.05.093

[6] N. Sawangwan, Dielectric Constant of Ba(Zr0. 05Ti0. 95)O3 Stabilized by TiO2 Doping, Ferroelectrics, 415 (2011) 157–163.

DOI: 10.1080/00150193.2011.577388

[7] Y. Lin, X. Miao, N. Qin, H. Zhou, W. Deng, D. Bao, Thin Solid Films 520 (2012) 5146–5150.

DOI: 10.1016/j.tsf.2012.03.132

[8] A. Di Loreto, A. Frattini, R. Machado, O. de Sanctis, M. G. Stachiotti, Preparation and Characterization of Mn-Doped (Ba0. 85Ca0. 15)(Zr0. 1Ti0. 9)O3 Ceramics, Ferroelectrics, 463 (2014) 105–113.

DOI: 10.1080/00150193.2014.892376

[9] S. Patel, A. Chauhan1, R. Vaish, Enhanced electrocaloric effect in Fe-doped (Ba0. 85Ca0. 15Zr0. 1Ti0. 9)O3 ferroelectric ceramics, j. apmt. 1 (2015) 37–44.

DOI: 10.1016/j.apmt.2015.08.002

[10] W. Liu, X. Ren, Large Piezoelectric Effect in Pb-Free Ceramics, Phys Rev Lett. 103 (2009) 257602 1-4.

[11] P. Parjansri, U. Intatha, S. Eitssayeam, Dielectric, ferroelectric and piezoelectric properties of Nb5+ doped BCZT ceramics, j. materresbull. 65 (2015) 61–67.

DOI: 10.1016/j.materresbull.2015.01.040

[12] K. Sutjarittangtham, U. Intatha, S. Eitssayeam, Influence of Seed Nano-Crystals on Electrical Properties and Phase Transition Behaviors of Ba0. 85Sr0. 15Ti0. 90Zr0. 10O3 Ceramics Prepared by Seed-Induced Method, Electron. Mater. Lett. 11 (2015).

DOI: 10.1007/s13391-015-4427-0

[13] Z. Li, A. Wu, P. M. Vilarinho, Perovskite Phase Stabilization of Pb(Zn1/3Ta2/3)O3 Ceramics Induced by PbTiO3 Seeds, Chem. Mater. 16 (2004) 717-723.

DOI: 10.1021/cm030592v

[14] J. Hao, W. Bai, W. Li, J. Zhai, Correlation Between the Microstructure and Electrical Properties in High-Performance (Ba0. 85Ca0. 15)(Zr0. 1Ti0. 9)O3 Lead-Free Piezoelectric Ceramics, J. Am. Ceram. Soc. 95.

DOI: 10.1111/j.1551-2916.2012.05146.x

[6] (2012) 1998–(2006).
