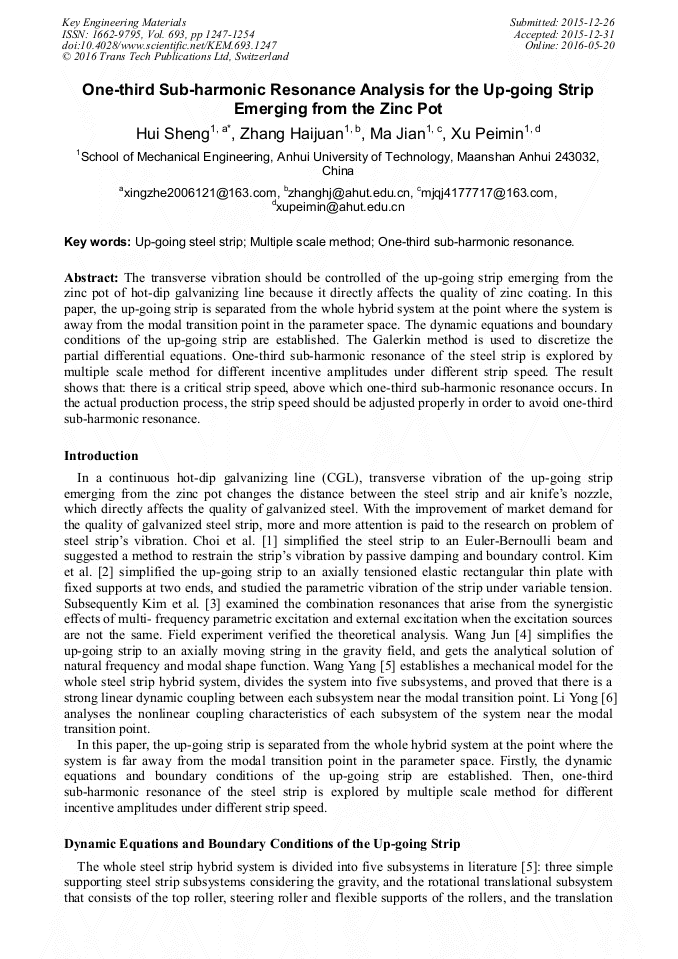

One-Third Sub-Harmonic Resonance Analysis for the Up-Going Strip Emerging from the Zinc Pot

Abstract:

The transverse vibration should be controlled of the up-going strip emerging from the zinc pot of hot-dip galvanizing line because it directly affects the quality of zinc coating. In this paper, the up-going strip is separated from the whole hybrid system at the point where the system is away from the modal transition point in the parameter space. The dynamic equations and boundary conditions of the up-going strip are established. The Galerkin method is used to discretize the partial differential equations. One-third sub-harmonic resonance of the steel strip is explored by multiple scale method for different incentive amplitudes under different strip speed. The result shows that: there is a critical strip speed, above which one-third sub-harmonic resonance occurs. In the actual production process, the strip speed should be adjusted properly in order to avoid one-third sub-harmonic resonance.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 1247-1254
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.1247
• Online since: May 2016
• Authors: Sheng Hui*, Hai Juan Zhang, Jian Ma, Pei Min Xu
• Keywords: Multiple Scale Method, One-Third Sub-Harmonic Resonance, Up-Going Steel Strip

References

[1] Choi J Y, Hong K S, Yang Y J, Exponential stabilization of an axially moving tensioned strip by passive damping and boundary control, J. Journal of Sound and Vibration. 10 (2004) 661-682.

DOI: 10.1177/1077546304038103

[2] Kim C H, Perkins N C, Lee C W, Parametric resonance of plates in a sheet metal coating process, J. Journal of Sound and Vibration. 268(4) (2003) 679-697.

DOI: 10.1016/s0022-460x(02)01538-9

[3] Kim C H, Lee C W , Perkins N C, Nonlinear vibration of sheet metal plates under interacting parametric and external excitation during manufacturing, J. ASME J. Vib. Acoust. 127 (2005) 36-43.

DOI: 10.1115/1.1857924

[4] Wang J, Dynamic study on the transverse vibrations of the steel sheet after the zinc pot in the process of hot-dip galvanizing, D. Anhui University of Technology, Anhui, (2010).

[5] Wang Y, Linear coupling vibration analysis of hybrid systems consisting of flexible boundary strips and rollers, D. Anhui University of Technology, Anhui, (2012).

[6] Li Y, Nonlinear coupling vibration analysis of hybrid systems consisting of strip, rollers and the roller's flexible supports, D. Anhui University of Technology, Anhui, (2013).

[7] Mclver D B, Hamilton's principle for systems of changing mass, J. Journal of Engineering Mathematics. 7(3) (1973) 249-261.

[8] Nayfeh A H, Mook D T, Nonlinear oscillations, John Wiley and Sons, New York, 1979, pp.447-455.

[9] Hu H Y, Application of nonlinear dynamics, Aviation industry press, Beijing, 2000, pp.29-30.
