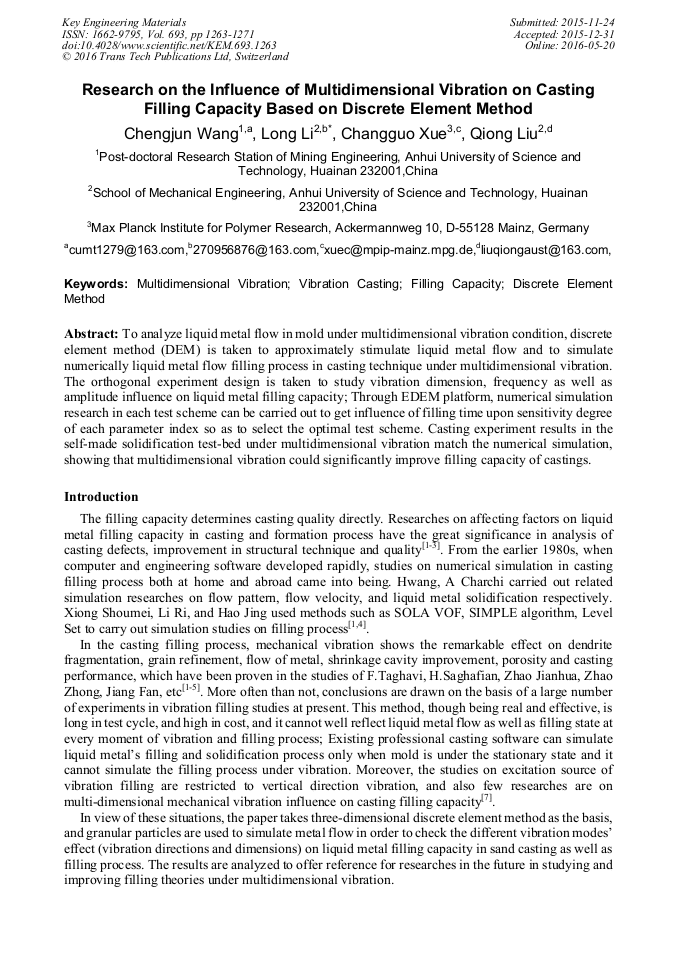

Research on the Influence of Multidimensional Vibration on Casting Filling Capacity Based on Discrete Element Method

Abstract:

To analyze liquid metal flow in mold under multidimensional vibration condition, discrete element method (DEM) is taken to approximately stimulate liquid metal flow and to simulate numerically liquid metal flow filling process in casting technique under multidimensional vibration. The orthogonal experiment design is taken to study vibration dimension, frequency as well as amplitude influence on liquid metal filling capacity; Through EDEM platform, numerical simulation research in each test scheme can be carried out to get influence of filling time upon sensitivity degree of each parameter index so as to select the optimal test scheme. Casting experiment results in the self-made solidification test-bed under multidimensional vibration match the numerical simulation, showing that multidimensional vibration could significantly improve filling capacity of castings.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 1263-1271
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.1263
• Online since: May 2016
• Authors: Cheng Jun Wang*, Long Li, Chang Guo Xue, Qiong Liu
• Keywords: Discrete Element Method, Filling Capacity, Multidimensional Vibration, Vibration Casting

References

[1] J.H. Zhao, Q. Ma, T. Jin, Research on the Impact of Mechanical Vibration on the Filling Ability of Alloy A356, J. Journal of Functional Material. 07 (2014) 13001-13005.

[2] Z. Zhao, Z.T. Fan, P. Cheng, Influence of Mechanical Vibration on the Filling Capacity of A356 and AZ91D in Lost Foam Casting, J. Journal of Huazhong University of Science and Technology. 11 (2009) 82-85.

[3] J.H. Zhao, Z. Hou, Y.J. Wang, Effect of Mechanical Vibration on Filling Ability of AZ91 Magnesium alloy, J. Materials Science and Technology. 6 (2013) 69-73.

[4] S.S. Wu, G. Zhong, L. Wan, Microstructure and properties of rheo-diecast Al-20Si-2Cu-1Ni-0. 4Mg Alloy with Direct Ultrasonic Vibration Process, J. T Nonferr Metal Soc. 20 (2010) 763-767.

DOI: 10.1016/s1003-6326(10)60578-x

[5] F. Taghavi, H. Saghafian, Y.H. K Kharrazi, Study on the Ability of Mechanical Vibration for the Production of Thixotropic Microstructure in A356 Aluminum Alloy, J. Mater Design. 30 (2009) 115-121.

DOI: 10.1016/j.matdes.2008.04.034

[6] T. He, C.J. Wang, D. S Zhang, Sand　Colony　Motion　Characteristics　during　Vibration Molding　Process　for　EPC　Based on　EDEM, J. Journal of Special Casting and Nonferrous Alloys. 33 (2013) 542-545.

[7] F. Jiang, J.M. Feng, Y.J. Wang, Numerical Simulation of Liquid Flow during Filling Process in Vibration Process in Vibration Casting, J. Journal of Special Casting and Nonferrous Alloys. 33 (2013) 1010-1012.

[8] C.J. Wang, D.D. Han, L. Chen, Application and Development of Vibration Technology in Metal Casting Molding, J. Journal of Hebei University of Science and Technology. 6 (2014) 229-232.

[9] C.J. Wang, D.D. Han, L. Chen, Process Optimization of V Belt Pulley with Sand Casting Based on ProCAST, J. Hot Working Technology. 17 (2014) 67-69.

[10] C.J. Wang, K.X. Liu. Y.Z. Shen, C.H. N, Patent 201110078872. 6. (2013).

[11] H.L. Wang, W.D. Shi, W.G. Lu, Optimization Design of Deep Well Pump Based on Latin Square Test, J. Journal of Agricultural Machinery. 5 (2010) 56-63.

[12] Y. Saad, M.H. Schultz. A generalized minimal residual algorithm for solving nonsymmetric linear systems, J. Journal on scientific and statistical computing. 3 (1986) 856-869.

DOI: 10.1137/0907058

[13] C. Zhou, Z. Li. An introduction to Chinese manufacturing research institutions, J. International journal of production research. 12 (2005) 2649-2669.

[14] H. Rhode, S. Kreusch, G.A. Cumme, Search for serum biomarkers using an approach based on native multidimensional fractionation, J. Shock. 4 (2006) 1-5.

DOI: 10.1097/00024382-200610001-00003

[15] J. Friedly, L. Cha, Trends in Lumbar Epidural Steroid Injections, J. American Journal of Physical Medicine & Rehabilitation. 3 (2006) 254-259.

DOI: 10.1097/00002060-200603000-00034
