The Research and the Development of the 3D System Platform of Shafting Parts Based on CAA

Abstract:

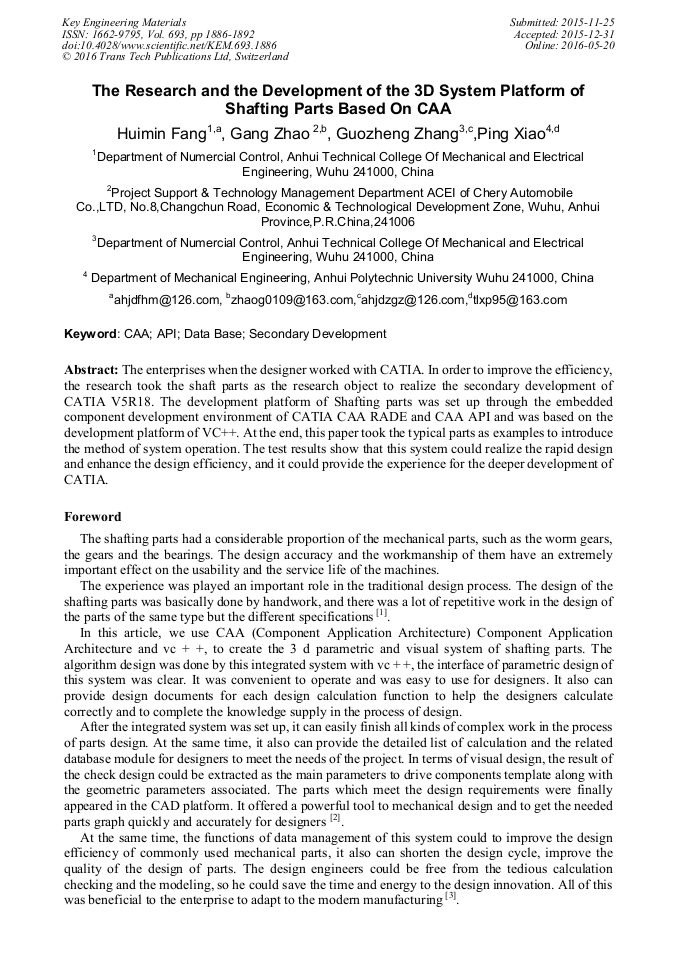

The enterprises when the designer worked with CATIA. In order to improve the efficiency, the research took the shaft parts as the research object to realize the secondary development of CATIA V5R18. The development platform of Shafting parts was set up through the embedded component development environment of CATIA CAA RADE and CAA API and was based on the development platform of VC++. At the end, this paper took the typical parts as examples to introduce the method of system operation. The test results show that this system could realize the rapid design and enhance the design efficiency, and it could provide the experience for the deeper development of CATIA.
