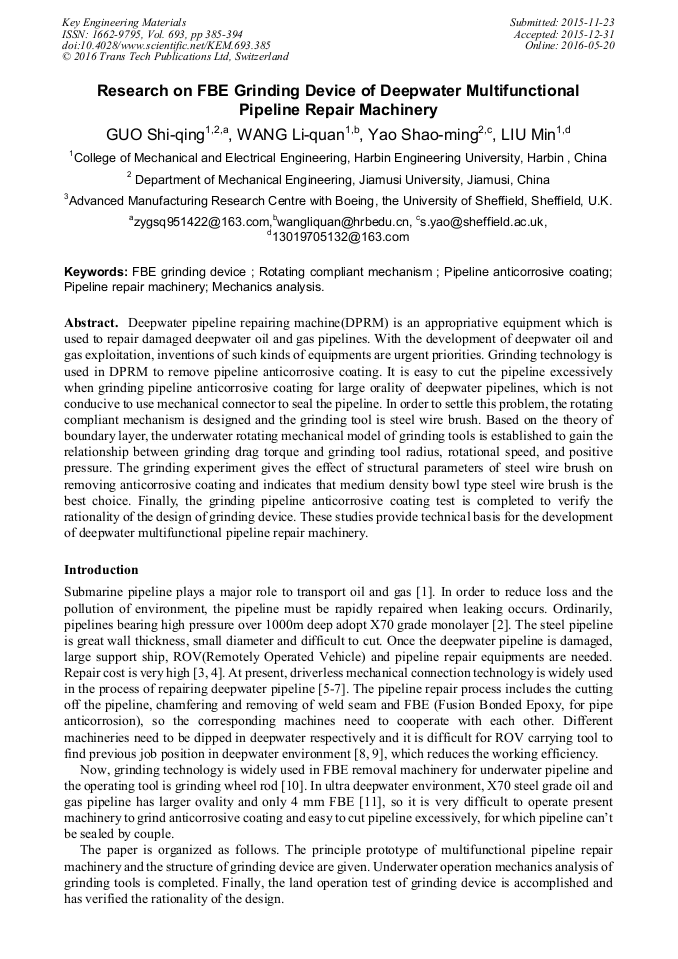

Research on FBE Grinding Device of Deepwater Multifunctional Pipeline Repair Machinery

Abstract:

Deepwater pipeline repairing machine (DPRM) is an appropriative equipment which is used to repair damaged deepwater oil and gas pipelines. With the development of deepwater oil and gas exploitation, inventions of such kinds of equipments are urgent priorities. Grinding technology is used in DPRM to remove pipeline anticorrosive coating. It is easy to cut the pipeline excessively when grinding pipeline anticorrosive coating for large orality of deepwater pipelines, which is not conducive to use mechanical connector to seal the pipeline. In order to settle this problem, the rotating compliant mechanism is designed and the grinding tool is steel wire brush. Based on the theory of boundary layer, the underwater rotating mechanical model of grinding tools is established to gain the relationship between grinding drag torque and grinding tool radius, rotational speed, and positive pressure. The grinding experiment gives the effect of structural parameters of steel wire brush on removing anticorrosive coating and indicates that medium density bowl type steel wire brush is the best choice. Finally, the grinding pipeline anticorrosive coating test is completed to verify the rationality of the design of grinding device. These studies provide technical basis for the development of deepwater multifunctional pipeline repair machinery.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 385-394
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.385
• Online since: May 2016
• Authors: Shi Qing Guo*, Li Quan Wang, Shao Ming Yao, Min Liu
• Keywords: FBE Grinding Device, Mechanics Analysis, Pipeline Anticorrosive Coating, Pipeline Repair Machinery, Rotating Compliant Mechanism

References

[1] F.H. Liang, A.H. Li, Y.X. Zhang, C.S. Miao, J.Y. Chen, China Offshore Oil and Gas, J. Vol. 21(2009), 352-357.

[2] Q.M. Chen, Z.P. Li, Material & Heat Treatment, J. Vol. 39(2010), 41-43.

[3] S. Carlo Maria, B. Giuseppe, F. Sergio, Proceedings of the 2009 International Offshore and Polar Engineering conference, 584-593.

[4] S. Carlo Maria, F. Sergio, Global Pipeline Monthly, J. Ei. Vol. 4(2008), 9-12.

[5] A. Vincent, F. Ian, Oil and Gas Journal, J. Ei. Vol. 100(2002), 96-104.

[6] P. Li, Y.P. Ji, X.D. Jiao, etal, China Petroleum Machinery,J. Vol. 41(2013), 57-60.

[7] P. Fassina, M. guagliano, L. Lazzari, L. vergani and M. vimercati, Engineering Failure Analysis, J. Ei. Vol. 12(2005), 711-719.

DOI: 10.1016/j.engfailanal.2004.12.009

[8] K. Edgar, P. Bo, R. Marcio, M. Helena, Proceedings of the 2011 Offshore Technology Conference, 49-65.

[9] M. Rob, K. Joseph, C. Bruce, Proceedings of the 2004 Offshore Technology Conference, 1426-1435.

[10] C. David S, Pipeline & Gas Journal, J. Ei. Vol. 228(2001), 44-46.

[11] A. Colin, N. David, Journal of Protective Coatings and Linings, J. Ei. Vol. 24(2007), 63-77.

[12] L.Q. Wang, J.B. Dong , L. Zhang, Natural Gas Industry, J. Ei. Vol. 32(2012), 75-78.

[13] Y.M. Li, Q.F. Wang, Underwater Technology, J. Ei. Vol. 26(2005), 89-96.

[14] Q.F. Wang, Y.M. LI, T.Y. Zhong , G.H. Xu, Chinese Journal of Mechanical Engineering (English Edition), J. Sci. Vol. 18(2005), 419-423.

[15] V. karman, Zeit Angew Math Mech, J. Sci. Vol. 1(1921), 233-252.
