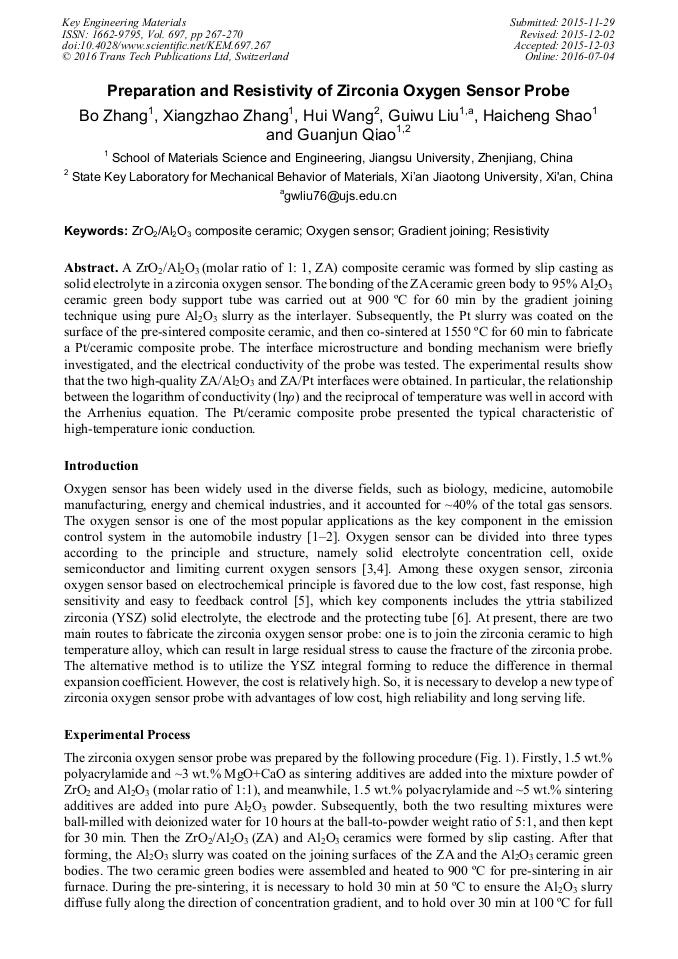

Preparation and Resistivity of Zirconia Oxygen Sensor Probe

Abstract:

A ZrO₂/Al₂O₃ (molar ratio of 1: 1, ZA) composite ceramic was formed by slip casting as solid electrolyte in a zirconia oxygen sensor. The bonding of the ZA ceramic green body to 95% Al₂O₃ ceramic green body support tube was carried out at 900 oC for 60 min by the gradient joining technique using pure Al₂O₃ slurry as the interlayer. Subsequently, the Pt slurry was coated on the surface of the pre-sintered composite ceramic, and then co-sintered at 1550 oC for 60 min to fabricate a Pt/ceramic composite probe. The interface microstructure and bonding mechanism were briefly investigated, and the electrical conductivity of the probe was tested. The experimental results show that the two high-quality ZA/Al₂O₃ and ZA/Pt interfaces were obtained. In particular, the relationship between the logarithm of conductivity (lnρ) and the reciprocal of temperature was well in accord with the Arrhenius equation. The Pt/ceramic composite probe presented the typical characteristic of high-temperature ionic conduction.

• Periodical: Key Engineering Materials (Volume 697)
• Pages: 267-270
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.697.267
• Online since: July 2016
• Authors: Bo Zhang, Xiang Zhao Zhang, Hui Wang, Gui Wu Liu*, Hai Cheng Shao, Guan Jun Qiao
• Keywords: Gradient Joining, Oxygen Sensor, Resistivity, ZrO₂/Al₂O₃ Composite Ceramic

References

[1] Z. A. Luo, J. Z. Xiao, F. Xia, et al., J. Wuhan Univ. Technolo. Mater. Sci. Ed. 2007, 22: 612-616.

[2] H. Neumann, G. Hötzel and G. Lindemann, SAE Paper. 1997, 970459: 89-97.

[3] H. Xia, F. S. Li, W. J. Wu, M. Yang and L. F. Li, J Inorg Mater. 2004, 19(2): 411–416.

[4] X. G. Liu, G. J. Li, J. F. Tong and D. M. Chen, J. Funct. Mater. 2005, 36(5): 767-770.

[5] J. Riegel, H. Neumann, H. -M. Wiedenmann, Solid State Ionics. 2002, 152: 783-800.

[6] S. Lu, J. Lin and J. Chen, Instrument Technique and Sensor. 2007, 3: 000.

[7] J. L. Tian, Y. J. Gao, Z. R. Luo and C. G. Huang, Guangxi Sciences. 2010, 17(4): 332~336.

[8] Z. Wu, J. Ye, Ordnance Material Science and Engineering. 2002, 1: 68-72.

[9] A. V. Durov, Y. V. Naidich and B. D. Kostyuk, J. Mater. Sci. 2005, 40(9-10): 2173-2178.

[10] Z. Lin, L. Zhang, Heat Treatment. 2009, 5: 6-10.
