Preparation of Silicon Carbide Coating Layer by Fluidized Bed Chemical Vapor Deposition Using a Halogen-Free Precursor

Abstract:

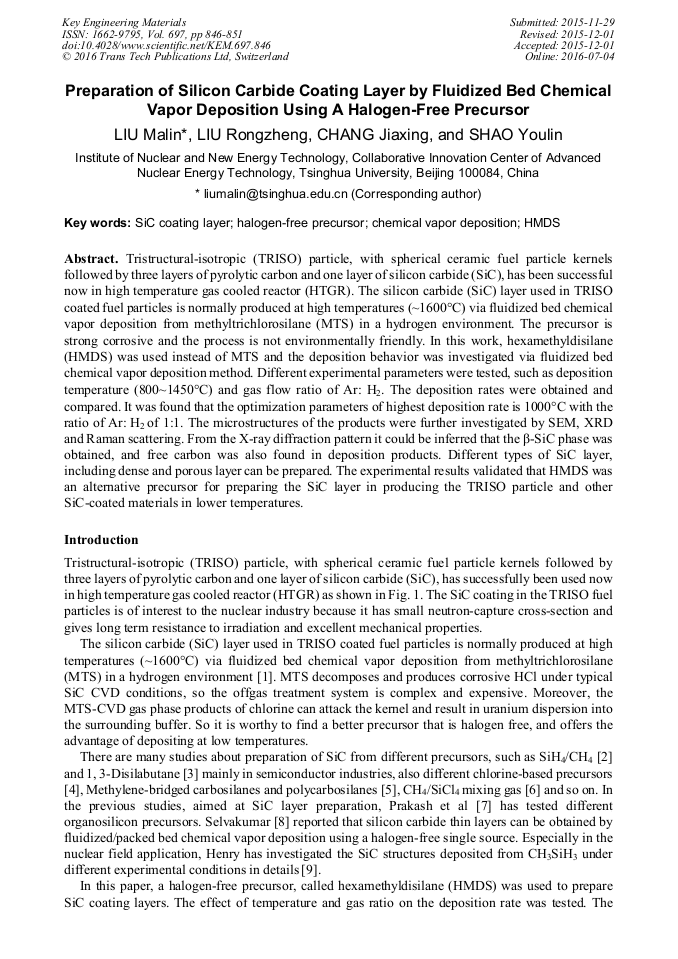

Tristructural-isotropic (TRISO) particle, with spherical ceramic fuel particle kernels followed by three layers of pyrolytic carbon and one layer of silicon carbide (SiC), has been successful now in high temperature gas cooled reactor (HTGR). The silicon carbide (SiC) layer used in TRISO coated fuel particles is normally produced at high temperatures (~1600°C) via fluidized bed chemical vapor deposition from methyltrichlorosilane (MTS) in a hydrogen environment. The precursor is strong corrosive and the process is not environmentally friendly. In this work, hexamethyldisilane (HMDS) was used instead of MTS and the deposition behavior was investigated via fluidized bed chemical vapor deposition method. Different experimental parameters were tested, such as deposition temperature (800~1450°C) and gas flow ratio of Ar: H₂. The deposition rates were obtained and compared. It was found that the optimization parameters of highest deposition rate is 1000°C with the ratio of Ar: H₂ of 1:1. The microstructures of the products were further investigated by SEM, XRD and Raman scattering. From the X-ray diffraction pattern it could be inferred that the β-SiC phase was obtained, and free carbon was also found in deposition products. Different types of SiC layer, including dense and porous layer can be prepared. The experimental results validated that HMDS was an alternative precursor for preparing the SiC layer in producing the TRISO particle and other SiC-coated materials in lower temperatures

• Periodical: Key Engineering Materials (Volume 697)
• Pages: 846-851
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.697.846
• Online since: July 2016
• Authors: Ma Lin Liu*, Rong Zheng Liu, Jia Xing Chang, You Lin Shao
• Keywords: Chemical Vapor Deposition, Halogen-Free Precursor, HMDS, SiC Coating Layer

References

[1] M. Liu, Coating technology of nuclear fuel kernels: a multiscale view, in Aliofkhazraei M. Modern surface engineering treatments. Teheran: InTech, 2013: 184-210.

DOI: 10.5772/55651

[2] C. Liu, C. Lee, K. Cheng, H. Cheng, T. Yew, Effect of SiH4/CH4 flow ratio on the growth of SiC on Si by electron cyclotron resonance chemical vapor deposition at 500 °C, Appl. Phys. Lett. 1995, 66 (2), 9-12.

DOI: 10.1063/1.113552

[3] C. R. Stoldt, M. C. Fritz, C. Carraro, R. Maboudian, Micromechanical properties of silicon-carbide thin films deposited using single-source chemical-vapor deposition, Appl. Phys. Lett., 2001, 79(3): 347-349.

DOI: 10.1063/1.1383277

[4] S. Leone, O. Kordina, A. Henry, S. Nishizawa, O. Danielsson, E. Janze, Gas-Phase Modeling of Chlorine-Based Chemical Vapor Deposition of Silicon Carbide, Cryst. Growth Des. 2012, 12, 1977-(1984).

DOI: 10.1021/cg201684e

[5] Q. Cheng, L Interrante, M. Lienhard, Q, Shen, Z. Wu, Methylene-bridged carbosilanes and polycarbosilanes as precursors to silicon carbide- from ceramic composites to SiC nanomaterials, Journal of the European Ceramic Society, 2005, 25, 233-241.

DOI: 10.1016/j.jeurceramsoc.2004.08.005

[6] X. He, J. Song, J. Tan, et al, SiC coating: An alternative for the protection of nuclear graphite from liquid fluoride salt, Journal of Nuclear Materials, 2014, 448: 1-3.

DOI: 10.1016/j.jnucmat.2014.01.034

[7] J. Prakash, S. Ghosh, R. Venugopalan, D. Sathiyamoorthy, Study of properties of SiC layer in TRISO coated particles grown using different Alkyl-Silicon Compounds, AIP Conf. Proc. 2013, 1538, 26-29.

DOI: 10.1063/1.4810026

[8] J. Selvakumar, D. Sathiyamoorthy, Nanocrystalline silicon carbide thin films by fluidized/packed bed chemical vapor deposition using a halogen-free single source, J. Mater. Chem., 2012, 22, 7551.

DOI: 10.1039/c2jm15561c

[9] M. Henry, Methylsilane derived SiC particle coatings produced by fluid-bed chemical vapor deposition. PhD dissertation, University of Tennessee, (2006).

[10] A. Gupta, C. Jacob, A simple method to synthesize nano-sized 3C-SiC powder using HMDS in a CVD reactor, Materials Science Forum, 2006, 527-529: 767-770.

DOI: 10.4028/www.scientific.net/msf.527-529.767

[11] J. Jeong, K. Jang, H. Lee, G. Chung, G. Kim, Raman scattering studies of polycrystalline 3C-SiC deposited on SiO2 and AlN thin films, Physica B, 2009, 404: 7-10.

DOI: 10.1016/j.physb.2008.09.040
