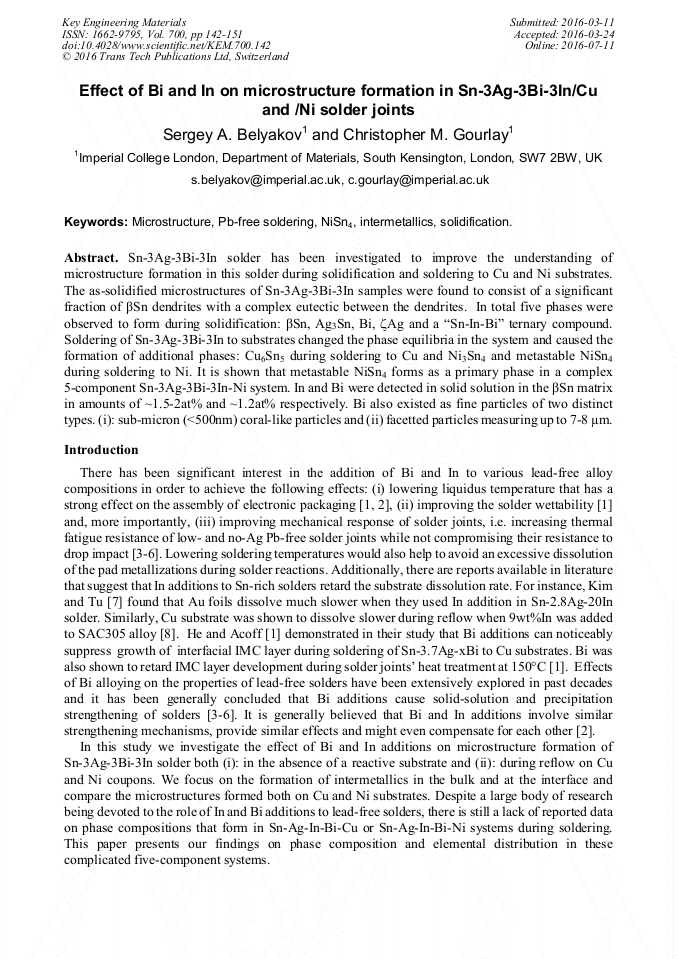

Effect of Bi and In on Microstructure Formation in Sn-3Ag-3Bi-3In/Cu and /Ni Solder Joints

Abstract:

Sn-3Ag-3Bi-3In solder has been investigated to improve the understanding of microstructure formation in this solder during solidification and soldering to Cu and Ni substrates. The as-solidified microstructures of Sn-3Ag-3Bi-3In samples were found to consist of a significant fraction of βSn dendrites with a complex eutectic between the dendrites. In total five phases were observed to form during solidification: βSn, Ag₃Sn, Bi, ζAg and a “Sn-In-Bi” ternary compound. Soldering of Sn-3Ag-3Bi-3In to substrates changed the phase equilibria in the system and caused the formation of additional phases: Cu₆Sn₅ during soldering to Cu and Ni₃Sn₄ and metastable NiSn₄ during soldering to Ni. It is shown that metastable NiSn₄ forms as a primary phase in a complex 5-component Sn-3Ag-3Bi-3In-Ni system. In and Bi were detected in solid solution in the βSn matrix in amounts of ~1.5-2at% and ~1.2at% respectively. Bi also existed as fine particles of two distinct types. (i): sub-micron (<500nm) coral-like particles and (ii) facetted particles measuring up to 7-8 μm.

• Periodical: Key Engineering Materials (Volume 700)
• Pages: 142-151
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.700.142
• Online since: July 2016
• Authors: Sergey A. Belyakov*, Christopher M. Gourlay
• Keywords: Intermetallic, Microstructure, NiSn₄, Pb-Free Soldering, Solidification

References

[1] M. He and V.L. Acoff: J Electron Mater, Vol. 37 (2008), p.288.

[2] Y.Y. Chiang, R. Cheng and A. Wu: J Electron Mater, Vol. 39 (2010), p.2397.

[3] Y. Kariya and M. Otsuka: J Electron Mater, Vol. 27 (1998), p.1229.

[4] P.T. Vianco and J.A. Rejent: J Electron Mater, Vol. 28 (1999), p.1127.

[5] P.T. Vianco and J.A. Rejent: J Electron Mater, Vol. 28 (1999), p.1138.

[6] S.W. Shin and J. Yu: J Electron Mater, Vol. 34 (2005), p.188.

[7] P.G. Kim and K.N. Tu: Mater Chem and Phys, Vol. 53 (1998), p.165.

[8] A. Sharif and Y.C. Chan: J Alloy and Compound, Vol. 390 (2005), p.67.

[9] A.T. Dinsdale et al., Atlas of Phase Diagrams for Lead-Free Soldering. Action Number: 531 Vol. 1. The European Science Foundation (2008).

[10] S.A. Belyakov and C.M. Gourlay: J Electron Mater, Vol. 41 (2012), p.3331.

[11] S.A. Belyakov and C.M. Gourlay: Mater Letters, Vol. 148 (2015), p.91.

[12] S.A. Belyakov and C.M. Gourlay: J Electron Mater, (2015) DOI: 10. 1007/s11664-015-3964-5.

[13] S.A. Belyakov and C.M. Gourlay: Intermetal, Vol. 25 (2012), p.48.

[14] T. Laurila, V. Vuorinen, and J.K. Kivilahti: Mater Sci & Eng R-Reports, Vol. 49 (2005), p.1.

[15] Z.Q. Mei et al.: in 48th Electronic Components & Technology Conference - 1998 Proceedings (1998), New York: IEEE. pp.952-961.

[16] M.O. Alam et al.: in IEEE Transactions on Device and Materials Reliability (2006) Vol. 6(3), pp.421-428.

[17] X.J. Huang: in 54th Electronic Components & Technology Conference, Vols 1 and 2, Proceedings (2004), IEEE: New York, pp.400-406.

[18] C.E. Ho et al.: J Electron Mater, Vol. 41 (2012), p.3266.
