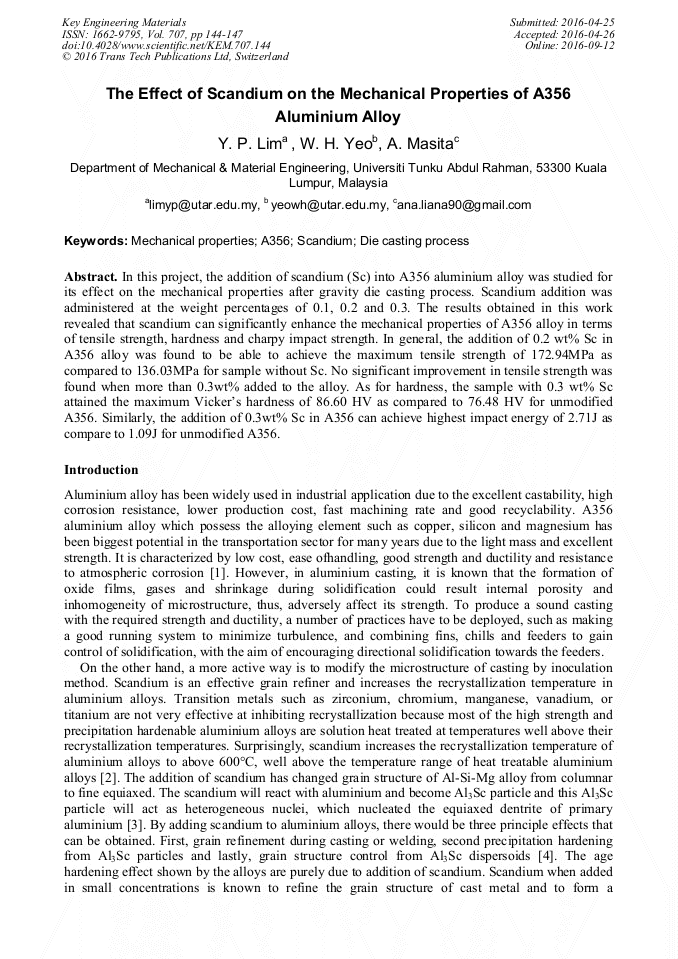

The Effect of Scandium on the Mechanical Properties of A356 Aluminium Alloy

Abstract:

In this project, the addition of scandium (Sc) into A356 aluminium alloy was studied for its effect on the mechanical properties after gravity die casting process. Scandium addition was administered at the weight percentages of 0.1, 0.2 and 0.3. The results obtained in this work revealed that scandium can significantly enhance the mechanical properties of A356 alloy in terms of tensile strength, hardness and charpy impact strength. In general, the addition of 0.2 wt% Sc in A356 alloy was found to be able to achieve the maximum tensile strength of 172.94MPa as compared to 136.03MPa for sample without Sc. No significant improvement in tensile strength was found when more than 0.3wt% added to the alloy. As for hardness, the sample with 0.3 wt% Sc attained the maximum Vicker’s hardness of 86.60 HV as compared to 76.48 HV for unmodified A356. Similarly, the addition of 0.3wt% Sc in A356 can achieve highest impact energy of 2.71J as compare to 1.09J for unmodified A356.

• Periodical: Key Engineering Materials (Volume 707)
• Pages: 144-147
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.707.144
• Online since: September 2016
• Authors: Ying Pio Lim*, W. H. Yeo, A. Masita
• Keywords: A356, Die Casting Process, Mechanical Properties, Scandium

References

[1] A. Vencl, I. Bobic, S. Arostegui, B. Bobic, Mechanical and Tribological Properties of A356 aluminium alloy reinforced with Al2O3, SiC and SiC +graphite particles, J Alloys Compound 506 (2010) 631–9.

DOI: 10.1016/j.jallcom.2010.07.028

[2] M. S. Kaiser, S. Datta, A. Roychowdhury, and M. K. Banerjee, Effect of scandium on themicrostructure and ageing behaviour of cast Al-6Mg alloy, Materials Characterization, Vol. 59 (2008) 1661-1666.

DOI: 10.1016/j.matchar.2008.03.006

[3] W. Prukkanon, N. Srisukhumbowornchai, C. Limmaneevichitr , Grain refinement mechanism in Al-Si-Mg alloy with Scandium, Journal of alloy and Compounds, 542 (2012) 177-186.

DOI: 10.1016/j.jallcom.2012.07.018

[4] M. S. Kaiser , Effect of scandium on the softening behaviour of different degree of cold rolled al-6mg alloy annealed at different temperature. Bangladesh University of Engineering and Technology, Dhaka- 1000, Bangladesh. Advances in Materials Science and Engineering: An International Journal (MSEJ), Vol. 1 (2014).

DOI: 10.3329/jme.v45i1.24381

[5] M. S. Kaiser, Grain Refinement and Precipitation Hardening of Cast Al-6Mg Alloy through Ternary Scandium and Quaternary Zirconium and Titanium Addition. Bangladesh University of Engineering and Technology, Dhaka-1000, Bangladesh. IJRMET Vol. 1 (2011).

DOI: 10.17706/ijmse.2015.3.2.147-158

[6] M. S. Kaiser, M. R. Basher, A. S. W. Kurny, Effect of Scandium on The Cast Al-Si-Mg Alloy, Bangladesh University of Engineering and Technology, Dhaka-1000, Bangladesh (2009).

[7] JIS H 5202. Aluminium alloy castings. Japanese Standards Association, Akasaka, Minota-ku, Tokyo, (2010).

[8] ASTM E384. Standard Test Method for Knoop and Vickers Hardness of Materials. ASTM International, West Conshohocken, PA, (2011).

[9] ASTM E23. Standard Test Methods for Notched Bar Impact Testing of Metallic Materials. ASTM International, West Conshohocken, PA, (2012).

[10] S. Lathabai, P.G. Lloyd, The effect of scandium on the microstructure, mechanical properties and weldability of a cast Al–Mg alloy. Acta Materialia, 50 (2002) 4275-4292.

DOI: 10.1016/s1359-6454(02)00259-8

[11] W-G. Zhang, L-J. He, P-J. Li, Y-C. Ye, X. Feng, L.S. Novikov, Dynamic response and numerical simulation of Al−Sc and Al−Ti alloys under high-speed impact, Trans. Nonferrous Met. Soc. China 25(2015) 559−570.

DOI: 10.1016/s1003-6326(15)63638-x
