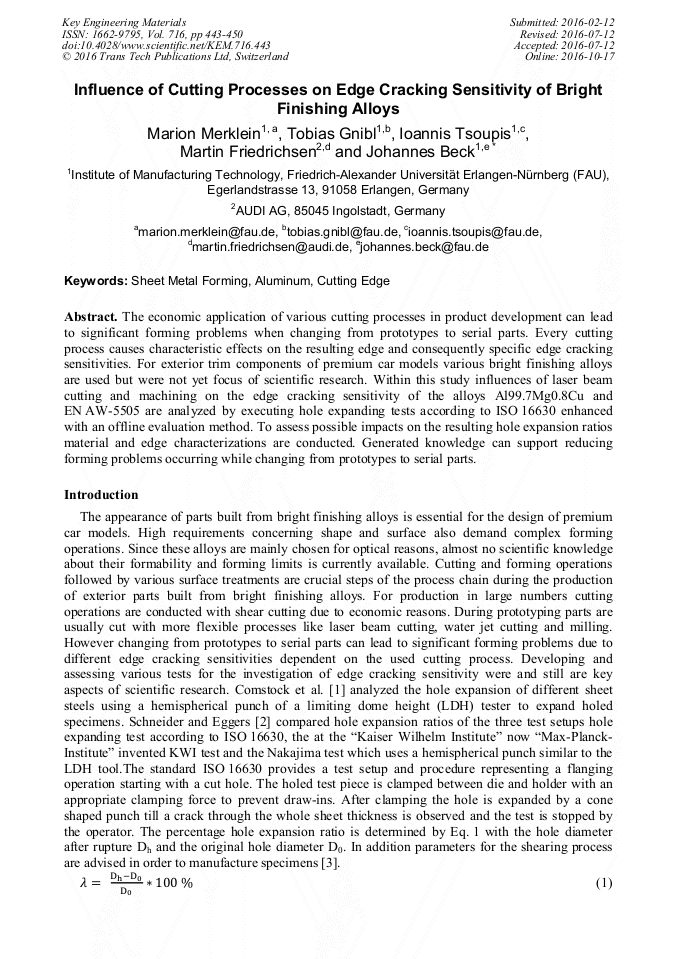

Influence of Cutting Processes on Edge Cracking Sensitivity of Bright Finishing Alloys

Abstract:

The economic application of various cutting processes in product development can lead to significant forming problems when changing from prototypes to serial parts. Every cutting process causes characteristic effects on the resulting edge and consequently specific edge cracking sensitivities. For exterior trim components of premium car models various bright finishing alloys are used but were not yet focus of scientific research. Within this study influences of laser beam cutting and machining on the edge cracking sensitivity of the alloys Al99.7Mg0.8Cu and EN AW-5505 are analyzed by executing hole expanding tests according to ISO 16630 enhanced with an offline evaluation method. To assess possible impacts on the resulting hole expansion ratios material and edge characterizations are conducted. Generated knowledge can support reducing forming problems occurring while changing from prototypes to serial parts.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 443-450
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.443
• Online since: October 2016
• Authors: Marion Merklein, Tobias Gnibl, Ioannis Tsoupis, Martin Friedrichsen, Johannes Beck*
• Keywords: Aluminium, Cutting Edge, Sheet Metal Forming

References

[1] R.J. Comstock, D.K. Scherer, R.D. Adamczyk, Hole expansion in a variety of sheet steels. J. Mater. Eng. Perform. 15(6) (2006) 675-683.

[2] M. Schneider, U. Eggers.: Investigation on punched edge formability. Conference Proceedings IDDRG (2011).

[3] ISO 16630: 2009, Metallic materials – Sheet and strip – Hole expanding test.

[4] T. Gläsner, C. Sunderkötter, S. Rommel, W. Volk, H. Hoffmann, R. Golle: Evaluation eines Verfahrens zur Bestimmung der Kantenrisssensitivität von hochfesten Stählen. UTF Science, Meisenbach-Verlag, (2015).

[5] J. Degner, S. Suttner, I. Tsoupis, M. Lechner, M. Merklein: Manufacturing of Innovative Aluminum Components by Combining Shear Cutting Operation and Tailor Heat Treated Blank Technique. 5th International Conference on Accuracy in Forming Technology (2015).

[6] I. Tsoupis, S. Hildering, M. Merklein: Bending of high-strength low-alloyed steel with respect to edge crack sensitivity caused by shearing operations. Procedia Engineering 81 (2014) 712-717.

DOI: 10.1016/j.proeng.2014.10.065

[7] M. Dünckelmeyer, A. Karelova, C. Krempaszky, E. Werner: Instrumented hole expansion test. Proceedings of International Doctoral Seminar 2009, Smolenice Castle, Slovakia 17-19 May (2009).

[8] M. Braun, M. Borsutzki, M. Bülter, B. Carlsson, P. Larour, A. Richter, E. Atzema, S. Geisler: Ergebnisse eines europäischen Ringversuchs zum Lochaufweitungsversuch nach ISO 16630. Tagung Werkstoffprüfung (2011) 317-326.

[9] J. Goncalves, D. Fouques, X. Bellut, L. Zhang, M. Huang, J. V. Deventer, B. Farrand: More Fruitful and Robust Hole Expansion Testing Conditions. Conference Proceedings IDDRG (2014) 216-221.

[10] N. Pathak, C. Butcher, M. Worswick: Influence of the Sheared Edge Condition on the Hole Expansion of Dual Phase Steel. Conference Proceedings IDDRG (2013) 213-218.

[11] C. Held,R. Schleich, M. Sindel, M. Liewald: Untersuchungen zum Einfluss der Verfestigung von schergeschnittenen Kanten auf folgende Umformprozesse. UTF Science, Meisenbach-Verlag, (2009).

[12] Prüf- und Dokumentationsrichtlinie für die mechanischen Kennwerte von Walzprodukten aus Aluminium. (PuD-Al). Revision number: 01, 04. 02. (2005).
