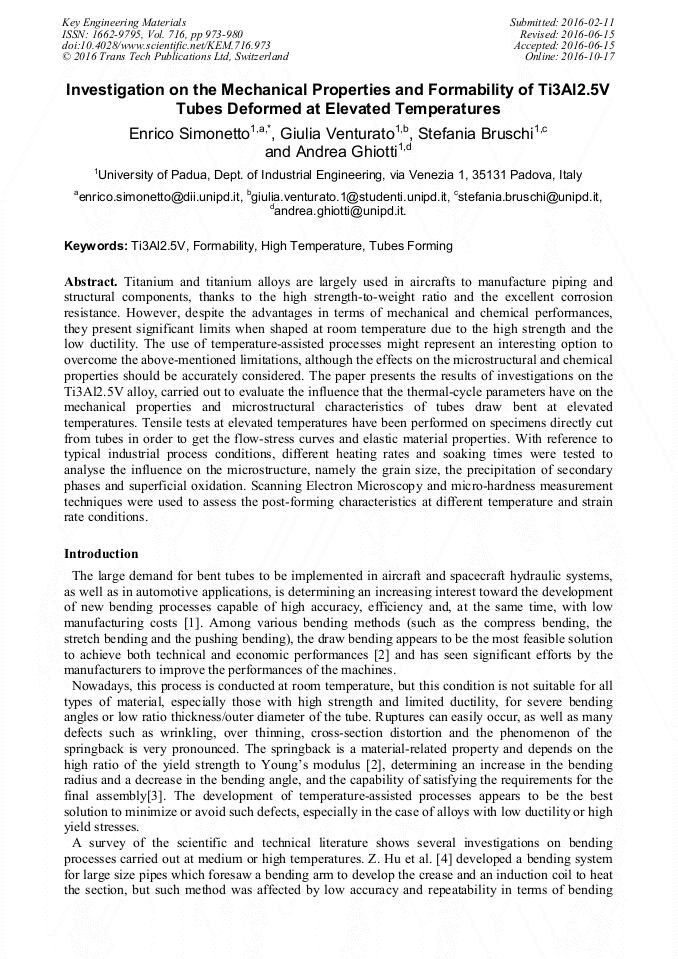

Investigation on the Mechanical Properties and Formability of Ti3Al2.5V Tubes Deformed at Elevated Temperatures

Abstract:

Titanium and titanium alloys are largely used in aircrafts to manufacture piping and structural components, thanks to the high strength-to-weight ratio and the excellent corrosion resistance. However, despite the advantages in terms of mechanical and chemical performances, they present significant limits when shaped at room temperature due to the high strength and the low ductility. The use of temperature-assisted processes might represent an interesting option to overcome the above-mentioned limitations, although the effects on the microstructural and chemical properties should be accurately considered.The paper presents the results of investigations on the Ti3Al2.5V alloy, carried out to evaluate the influence that the thermal cycle parameters have on the mechanical properties and microstructural characteristics of tubes draw bent at elevated temperatures. Tensile tests at elevated temperatures have been performed on specimens directly cut from tubes in order to get the flow-stress curves and elastic material properties. With reference to typical industrial process conditions, different heating rates and soaking times were tested to analyse the influence on the microstructure, namely the grain size, the precipitation of secondary phases and superficial oxidation. Scanning Electron Microscopy and micro-hardness measurement techniques were used to assess the post-forming characteristics at different temperature and strain rate conditions.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 973-980
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.973
• Online since: October 2016
• Authors: Enrico Simonetto*, Giulia Venturato, Stefania Bruschi, Andrea Ghiotti
• Keywords: Formability, High Temperature, Ti3Al2.5V, Tubes Forming

References

[1] M. Zhan, Z.Q. Jiang, H. Yang, X. XU, G.J. Li, Numerically controlled bending performance of medium strength TA18 titanium alloy tubes under different die sets, Sci. China Tech. Sci. 54 (2011) 841-852.

DOI: 10.1007/s11431-010-4241-8

[2] H. Li, H. Yang, F.F. Song, M. Zhan, G.J. Li, Springback characterization and behaviors of high-strength Ti–3Al–2. 5V tube in cold rotary draw bending, J. Mater. Process. Tech. 212 (2012) 1973– (1987).

DOI: 10.1016/j.jmatprotec.2012.04.022

[3] Z.Q. Jiang, H. Yang, M. Zhan, X.D. Xu, G.J. Li, Coupling effects of material properties and the bending angle on the springback angle of a titanium alloy tube during numerically controlled bending, Materials and Design 31 (2010) 2001–(2010).

DOI: 10.1016/j.matdes.2009.10.029

[4] Z. Hu, J.Q. Li, Computer simulation of pipe-bending processes with small bending radius using local induction heating, J. Mater. Process. Tech. 91 (1999) 75–79.

DOI: 10.1016/s0924-0136(98)00425-7

[5] W. Wu, P. Zhang, X. Zeng, L. Jin, S. Yao, A.A. Luo, Bendability of the wrought magnesium alloy AM30 tubes using a rotary draw bender, Mat. Sci. Eng. A-Struct. 486 (2008) 596–601.

DOI: 10.1016/j.msea.2007.09.033

[6] K. Mori, T. Maeno, K. Adachi, Gas forming of ultra-high strength steel hollow part using air filled into sealed tube and resistance heating, J. Mater. Process. Tech. 214 (2014) 97– 105.

DOI: 10.1016/j.jmatprotec.2013.08.004

[7] J. Yanagimoto, R. Izumi, Continuous electric resistance heating—Hot forming system for high-alloy metals with poor workability, J. Mater. Process. Tech. 209 (2009) 3060–3068.

DOI: 10.1016/j.jmatprotec.2008.07.010

[8] T. Altan, R. Neugebauer, M. Geiger, M. Kleiner, A. Sterzing, Sheet metal forming at elevated temperatures, Annals of the CIRP Vol. 55 (2/2006) 793-816.

DOI: 10.1016/j.cirp.2006.10.008

[9] E.H. Lee, J.S. Hwang, C. W Lee, D.Y. Yang, W. H Yang, A local heating method by near-infrared rays for forming of non-quenchable advanced high-strength steels, J. Mater. Process. Tech. 214 (2014) 784– 793.

DOI: 10.1016/j.jmatprotec.2013.11.023

[10] M. Miller, T. Chavez, M. Dearbom, E. Tong, R. Marloth, Y.J. Li, L. Zeng, B. Ramsey, H. Mulazimoglu, J. Guerra, J. Foyos, N. Ula, H. Gamestani, O.S. Es-Said, Effect of heat treatments on the mechanical properties of Ti-3Al-2. 5V alloy, J. Mater. Eng. Perform. 24 (2015).

DOI: 10.1007/s11665-015-1628-5

[11] R.R. Boyer, An overview on the use of titanium in the aerospace industry, Mat. Sci. Eng. A-Struct. 213 (1996) 103-114.

[12] R. Boyer, G. Welsch, E.W. Codings, Materials Properties Handbook: Titanium Alloys, ASM International, (1994).
