Study on Factor of the Quenching Performance on the Polymer Material Characteristics of an Air Circuit Breaker

Abstract:

Usage of polymer materials in a quenching chamber is one of the most effective methods of improving performance of an air circuit breaker [1, 2]. During a high current interruption in the air circuit breaker, an arc discharge touches the insulator, and ablation gasses are emitted [3]. It is considered that the quenching performance and an arc characteristic are affected by this ablation gasses. In order to clarify the quenching performance of each polymer material, we are conducting the experiments. With these experiments, the relationships of the ablation gasses among the number of arcing cycles, arcing peak voltage, arcing conductances, and the pressure rise will be discussed with four kinds of polymer materials.

You might also be interested in these eBooks

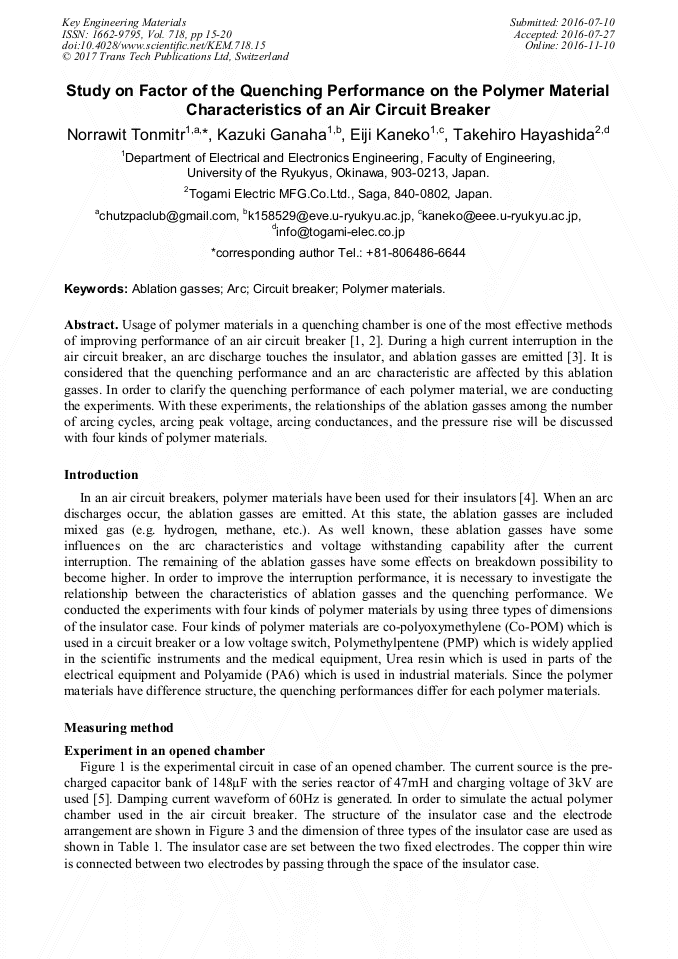

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 718)

Pages:

15-20

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.718.15

Citation:

Cite this paper

Online since:

November 2016

Authors:

Norrawit Tonmitr*, Kazuki Ganaha, Eiji Kaneko, Takehiro Hayashida

Keywords:

Ablation Gasses, Arc, Circuit Breaker, Polymer Materials

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] N. Tonmitr, Y. Goto, K. Ganaha, E. Kaneko, Study on Polymer Material Influences on the Characteristics of an Air Arc, IEEJ P&ES – IEEE PES Thailand Joint Symposium 2016, Advanced Technology in Power Systems, TJS-16-011, (2016) 49-52.

Google Scholar

[2] Y. Goto, Y. Okano, E. Kaneko, Investigation Concerned with an Influence of Insulator to Air Discharge, IWHV2014, ED-14-117, SP-14-073, HV-14-129, (2014) 53-56.

Google Scholar

[3] Y. Okano, Effect of polymer material to air arc characteristics, Master's Thesis of Engineering (University of the Ryukyus), (2015) 86-91.

Google Scholar

[4] T. Matsumura, K. Yamamoto, Y. Yokomizu, Current interruption phenomena of Co2 arc quenching chamber with puffer mechanism, The Papers of Joint Technical Meeting on Electrical Discharge, Switching and Protecting Engineering and High Voltage, IEE Japan, ED-02-56, HV-02-40, (2003).

Google Scholar

[5] Y. Okano, E. Kaneko, T. Hayashida, Study of the polymer insulators used for the air circuit breaker, IEEJ Transactions on Power and Energy, 135 (2013) 41-42.

Google Scholar
