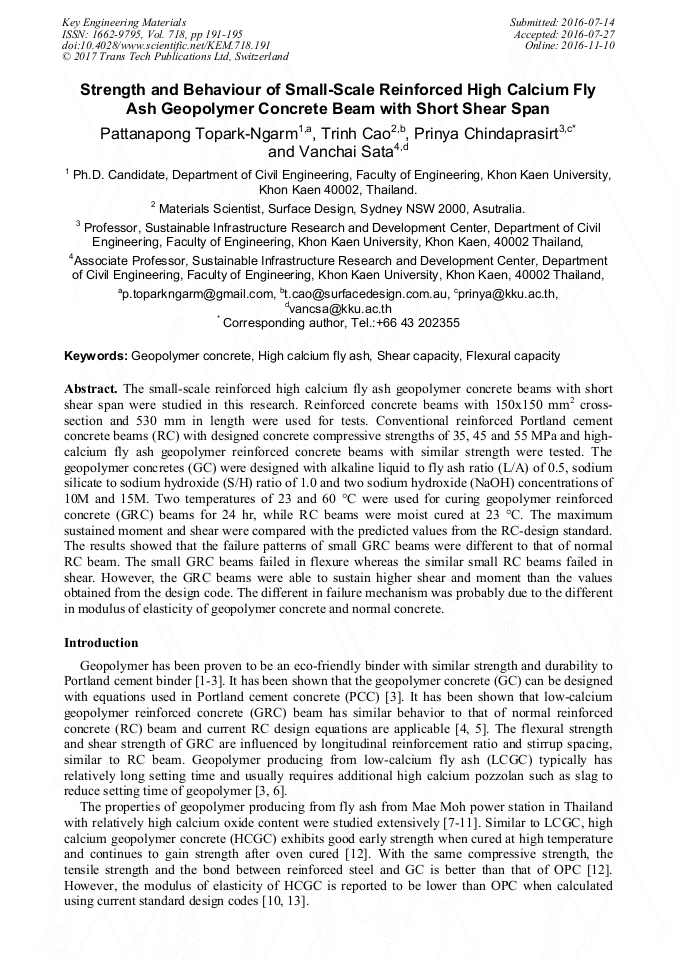

Strength and Behaviour of Small-Scale Reinforced High Calcium Fly Ash Geopolymer Concrete Beam with Short Shear Span

Abstract:

The small-scale reinforced high calcium fly ash geopolymer concrete beams with short shear span were studied in this research. Reinforced concrete beams with 150x150 mm² cross-section and 530 mm in length were used for tests. Conventional reinforced Portland cement concrete beams (RC) with designed concrete compressive strengths of 35, 45 and 55 MPa and high-calcium fly ash geopolymer reinforced concrete beams with similar strength were tested. The geopolymer concretes (GC) were designed with alkaline liquid to fly ash ratio (L/A) of 0.5, sodium silicate to sodium hydroxide (S/H) ratio of 1.0 and two sodium hydroxide (NaOH) concentrations of 10M and 15M. Two temperatures of 23 and 60 °C were used for curing geopolymer reinforced concrete (GRC) beams for 24 hr, while RC beams were moist cured at 23 °C. The maximum sustained moment and shear were compared with the predicted values from the RC-design standard. The results showed that the failure patterns of small GRC beams were different to that of normal RC beam. The small GRC beams failed in flexure whereas the similar small RC beams failed in shear. However, the GRC beams were able to sustain higher shear and moment than the values obtained from the design code. The different in failure mechanism was probably due to the different in modulus of elasticity of geopolymer concrete and normal concrete.

• Periodical: Key Engineering Materials (Volume 718)
• Pages: 191-195
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.718.191
• Online since: November 2016
• Authors: Pattanapong Topark-Ngarm, Trinh Cao, Prinya Chindaprasirt*, Vanchai Sata
• Keywords: Flexural Capacity, Geopolymer Concrete, High Calcium Fly Ash, Shear Capacity

References

[1] J. A. Fernandez, L. I. Garcia, A. Palomo, Durability of alkali-activated fly ash cementitious materials, J Mater Sci. 42 (2007) 3055-65.

DOI: 10.1007/s10853-006-0584-8

[2] P. Chindaprasirt, T. Chareerat, W. Kunawanakit, Geopolymer from mae moh fly ash, KKU En. J. 32 (2005) 715-24.

[3] D. Hardjito, B.V. Rangan, Development and properties of low-calcium fly ash-based geopolymer concrete, Perth, Curtin University of Technology, Australia, (2005).

[4] M.D.J. Sumajouw, B.V. Rangan, Low-Calcium Fly Ash-Based Geopolymer Concrete: Reinforced Beams and Columns, Perth, Curtin University of Technology, Australia , (2006).

[5] C.K. Madheswaran, Ambily PS, Lakhsmanan N, Dattatreya JK, Jaffer Sathik SA, Shear behavior of reinforced geopolymer concrete thin webbed t-beams, ACI Mater. J. 111 (2014) 89-98.

DOI: 10.14359/51686449

[6] T. Sugama, L.E. Brothers, Putte TRVd. Acid-resistant cements for geothermal wells: sodium silicate activated slag/fly ash blends, Advances in Cement Research, 2005. pp.65-75.

DOI: 10.1680/adcr.2005.17.2.65

[7] P. Chindaprasirt, T. Chareerat, V. Sirivivatnanon, Workability and strength of coarse high calcium fly ash geopolymer, Cement Concrete Comp. 29 (2007) 224-9.

DOI: 10.1016/j.cemconcomp.2006.11.002

[8] U. Rattanasak, P. Chindaprasirt, Influence of NaOH solution on the synthesis of fly ash geopolymer, Miner Eng. 22 (2009) 1073-8.

DOI: 10.1016/j.mineng.2009.03.022

[9] P. Chindaprasirt, T. Chareerat, S. Hatanaka, T. Cao, High-strength geopolymer using fine high-calcium fly ash, J. Mater. Civ. Eng. 23 (2010) 264-70.

DOI: 10.1061/(asce)mt.1943-5533.0000161

[10] J. Wongpa, K. Kiattikomol, C. Jaturapitakkul, P. Chindaprasirt, Compressive strength, modulus of elasticity, and water permeability of inorganic polymer concrete, Mater. Des. 31 (2010) 4748-54.

DOI: 10.1016/j.matdes.2010.05.012

[11] K. Somna, C. Jaturapitakkul, P. Kajitvichyanukul, P. Chindaprasirt, Immobilization of heavy metals by fly ash-based geopolymer. KKU Res. J. 13 (2008) 1191-8.

DOI: 10.1016/j.fuel.2011.01.018

[12] N.P. Topark, P. Chindaprasirt, V. Sata, Setting Time, strength, and bond of high-calcium fly ash geopolymer concrete, J. Mater. Civ. Eng. 27 (2014) 04014198.

DOI: 10.1061/(asce)mt.1943-5533.0001157

[13] W. Prachasaree, S. Limkatanyu, A. Hawa, A. Samakrattakit, Development of equivalent stress block parameters for fly-ash-based geopolymer concrete, Arab. J. Sci. Eng. 39 (2014) 8549-58.

DOI: 10.1007/s13369-014-1447-2

[14] P. Kong, B.V. Rangan, Shear Strength of High-Performance Concrete Beams. ACI. S. J. 95 (1998) 677-88.

[15] K.H. Yang, H.S. Chung, E.T. Lee, H.C. Eun, Shear characteristics of high-strength concrete deep beams without shear reinforcements. Eng. Struct. 25 (2003) 1343-52.

DOI: 10.1016/s0141-0296(03)00110-x

[16] W. Joost, L. Norbert, Size Effects in Short Beams Loaded in Shear. Structural Journal. 91 (1994).

[17] G. Kani, How Safe are Our Large Reinforced Concrete Beams?. ACI. J. P. 64 (1967) 128-40.

DOI: 10.14359/7549
