Evaluation of Residual Stresses in PVD Coatings by Means of the Curvature Method of Plate

Abstract:

Physical Vapor Deposition (PVD) coatings are primarily designed for metal cutting tools operating in extreme machining and blanking conditions. Residual stresses arising during coating deposition exert an important effect on the service life of the coating through influencing mechanical and tribological properties and adhesion. To determine macroscopic residual stresses, the conventional curvature method was used. As an application, residual stresses in four aluminum based PVD hard coatings, i.e. AlTiN, AlTiSiN, AlCrN, and AlCrSiN, were investigated in the presence of the Ti adhesion layer. Nickel steel plates and steel plates were used as the substrate. Residual stresses were compressive and high (3.0-7.5 GPa) in all coatings. Compressive stresses in coatings are desirable in cohesive tool damage as they strengthen the coating. The values of residual stresses were not significantly dependent on the angle of plate placement (parallel (0°), inclined (45°) and perpendicular (90°)) in relation to the PVD cathode in the deposition chamber. The magnitude of residual stresses is influenced by intrinsic strain at layer growth rather than by thermal stress.

You might also be interested in these eBooks

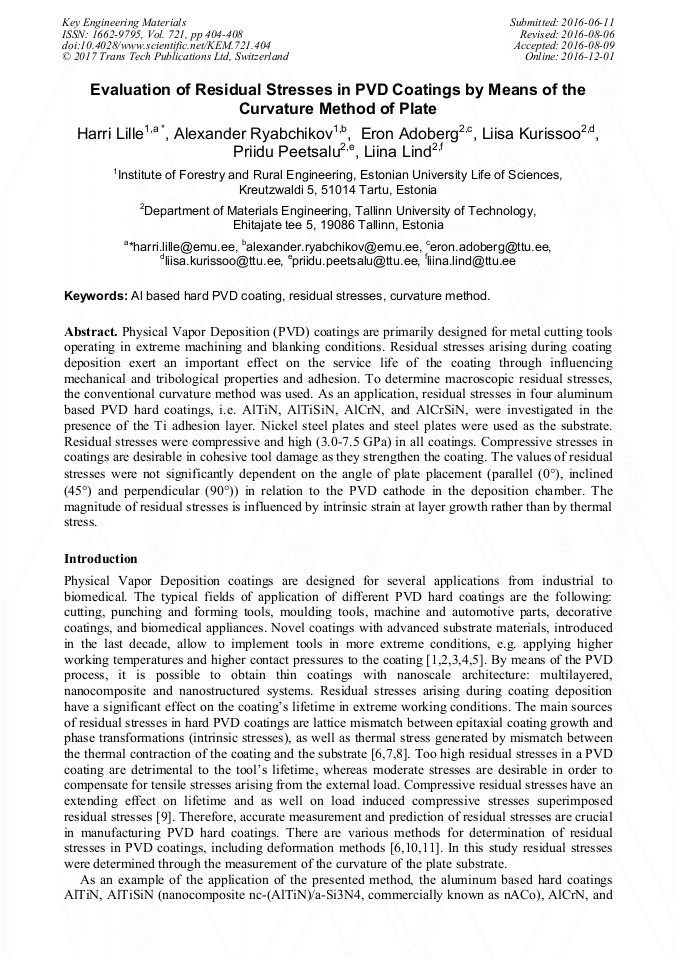

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 721)

Pages:

404-408

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.721.404

Citation:

Cite this paper

Online since:

December 2016

Authors:

Harri Lille*, Alexander Ryabchikov, Eron Adoberg, Liisa Kurissoo, Priidu Peetsalu, Liina Lind

Keywords:

Al Based Hard PVD Coating, Curvature Method, Residual Stresses

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Dennis. T. Quinto, Twenty-five years of PVD coatings at the cutting edge. Fall Bulletin. (2007) 17-22.

Google Scholar

[2] J.L. Endrino, G.S. Fox-Rabinovich, C. Gey, Hard AlTiN, AlCrN PVD coatings for machining of austenitic stainless steel. Surf. Coat. Tech. 200 (2006) 6840-6845.

DOI: 10.1016/j.surfcoat.2005.10.030

Google Scholar

[3] T. Sampath Kumar, S. Balasivanandha Prabu, Geetha Manivasagam, and K. A. Padmanabhan, Comparison of TiAlN, AlCrN and AlCrN/TiAlN coatings for cutting-tool applications. Int. J. Min. Met. Mater. 21 (2014) 796-805.

DOI: 10.1007/s12613-014-0973-y

Google Scholar

[4] A.I. Fernández-Abia, J. Barreiro, J. Fernández-Larrinoa, L.N. López de Lacalle, A. Fernández-Valdivielso, O.M. Pereira, Behaviour of PVD coatings in turning of austenitic stainless steels. Procedia Eng. 63 (2013) 133-141.

DOI: 10.1016/j.proeng.2013.08.241

Google Scholar

[5] Yin-Yu Chang, Da-Yung Wang, Characterization of nanocrystalline AlTiN coatings synthesized by a cathodic-arc deposition process. Surf. Coat. Tech. 201 (2007) 6699-6701.

DOI: 10.1016/j.surfcoat.2006.09.036

Google Scholar

[6] J. Gunnars, U. Wiklund, Determination of Growth-induced Strain and Thermo-elastic Properties of Coatings by Curvature Measurements. Mater. Sci. Eng. A336 (2002) 7-21.

DOI: 10.1016/s0921-5093(01)01979-7

Google Scholar

[7] O.B. Soroka, S. A. Klymenko, M. Yu. Kopeikina, Evaluation of residual stresses in PVD-coatings. Part 2. Strength Mater. 42/4 (2010) 450-458.

DOI: 10.1007/s11223-010-9236-y

Google Scholar

[8] K. Yamamoto, T. Sato, E. Iwamura, Temperature dependence of thermal expansion coefficient and bi-axial modulus of arc-ion plated TiN, CrN, Cr2N and AlTiN coatings. J. Surface Finish. Soc. Jpn. 50 (1999) 52-57 (in Japanese).

DOI: 10.4139/sfj.50.52

Google Scholar

[9] B. Denkena, B. Breidenstein. Residual stress distribution in PVD-coated carbide cutting tools – origin of cohesive damage. Tribology in industry. 34/3 (2012) 158-165.

DOI: 10.1002/adem.200800063

Google Scholar

[10] H. Lille, J. Kõo, A. Gregor, A. Ryabchikov, F. Sergejev, R. Traksmaa, P. Kulu, Comparison of curvature and X-Ray methods for measuring of residual stresses in hard PVD coatings. Mater. Sci. Forum. 681 (2011) 455-460.

DOI: 10.4028/www.scientific.net/msf.681.455

Google Scholar

[11] J. Kõo. Determination of residual stresses in growing coatings on strip and plate by method of measuring the strain. Izvestiya vuzov, Mashinostroyeniye, 12 (1969), 47-51 (in Russian).

Google Scholar

[12] J. Kõo, Determination of residual stresses in coatings and coated parts. Thesis of Dr. Sc. Eng., Tallinn Technical University, Tallinn, (1994).

Google Scholar

[13] A. Ryabchikov, H. Lille, R. Laaneots, Evaluation of uncertainties of measurement for residual stresses in coatings determined by the dilatometric method, Mat. Sci. Forum. 524-525 (2006) 259−264.

DOI: 10.4028/www.scientific.net/msf.524-525.259

Google Scholar
