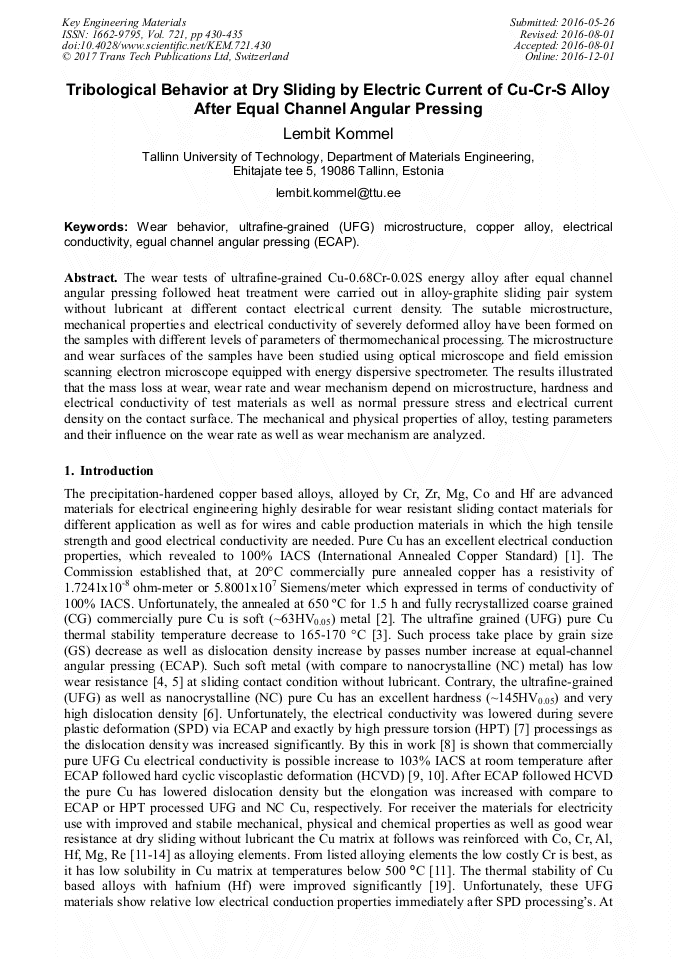

Tribological Behavior at Dry Sliding by Electric Current of Cu-Cr-S Alloy after Equal Channel Angular Pressing

Abstract:

The wear tests of ultrafine-grained Cu-0.68Cr-0.02S energy alloy after equal channel angular pressing followed heat treatment were carried out in alloy-graphite sliding pair system without lubricant at different contact electrical current density. The sutable microstructure, mechanical properties and electrical conductivity of severely deformed alloy have been formed on the samples with different levels of parameters of thermomechanical processing. The microstructure and wear surfaces of the samples have been studied using optical microscope and field emission scanning electron microscope equipped with energy dispersive spectrometer. The results illustrated that the mass loss at wear, wear rate and wear mechanism depend on microstructure, hardness and electrical conductivity of test materials as well as normal pressure stress and electrical current density on the contact surface. The mechanical and physical properties of alloy, testing parameters and their influence on the wear rate as well as wear mechanism are analyzed.

• Periodical: Key Engineering Materials (Volume 721)
• Pages: 430-435
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.721.430
• Online since: December 2016
• Authors: Lembit Kommel*
• Keywords: Copper Alloy, Egual Channel Angular Pressing (ECAP), Electrical Conductivity, Ultrafine-Grained (UFG) Microstructure, Wear Behavior

References

[1] Information on http: /www. Wikibedia, International Standard of Resistance for Copper (1914).

[2] L. Kommel, I. Hussainova, O. Volobueva, Microstructure and properties development of copper during severe plastic deformation, Mater. Design. 28 (2007) 2121-2128.

DOI: 10.1016/j.matdes.2006.05.021

[3] N. Lugo, N. Llorca, J.J. Suňol, J.M. Cabrera, Thermal stability of ultrafine grains size of pure copper obtained by equal-channel angular pressing, J. Mater. Sci. 45 (2010) 2264-2273. DOI: 10. 1007/s10853-009-4139-7.

DOI: 10.1007/s10853-009-4139-7

[4] W.L. Li, N.R. Tao. Z. Han, K. Lu, Comparisons of dry sliding tribological behaviors between coarse-grained and nanocrystalline copper, Wear. 274-275 (2012) 306-312.

DOI: 10.1016/j.wear.2011.09.010

[5] B. Yao, Z. Han, K. Lu, Correlation between wear resistance and subsurface recrystallization structure in copper, Wear 294-295 (2012) 438-445.

DOI: 10.1016/j.wear.2012.07.008

[6] Y. Estrin, A. Vinogradov (2013) Extreme grain refinement by severe plastic deformation: A wealth of challenging science. Acta Materialia, 61, pp.782-817.

DOI: 10.1016/j.actamat.2012.10.038

[7] M. Yu Murashkin, I. Sabirov, X. Sauvage, R. Z. Valiev. Nanostructured Al and Cu alloys with superior strength and electrical conductivity. J Mater Sci, (2015) DOI 10. 1007/s10853-015-9354-9.

DOI: 10.1007/s10853-015-9354-9

[8] L. Kommel, Properties development of ultrafine-grained copper under hard cyclic viscoplastic deformation, Mater. Letters 64 (2010) 1580-1582.

DOI: 10.1016/j.matlet.2010.04.056

[9] L. Kommel, R. Veinthal, HCV deformation – method to study the viscoplastic behavior of nanaocrystalline metallic materials, Rev. Adv. Mater. Sci. 10 (2005) 442-446.

[10] L. Kommel. The effect of HCV deformation on hardening/softening of SPD copper. Ultrafine Grained Materials III. Edited by Y.T. Zhu, T.G. Langdon, R.Z. Valiev, S.L. Semiatin, D.H. Shin, and T.C. Lowe. TMS, 2004, pp.571-576.

[11] D. Shangina, Y. Maksimenkova, N. Bochvar, V. Serebryany, G. Raab, A. Vinogradov, W. Skrotzki, S. Dobatkin. Influence of alloying with hafnium on the microstructure, texture and properties of Cu-Cr alloy after equal channel angular pressing. J Mater Sci 51 (2016).

DOI: 10.1007/s10853-016-9854-2

[12] L. Kommel, A. Pokatilov, Electrical conductivity and mechanical properties of Cu-0. 7 wt. % Cr and Cu-1. 0 wt. % Cr alloys processed by severe plastic deformation, IOP Conf. Series: Mater. Sci. Eng. 63 (2014) 012169-1 – 012169-7.

DOI: 10.1088/1757-899x/63/1/012169

[13] R.K. Islamgaliev, K.M. Nesterov, J. Bourgon, Y. Champion, R.Z. Valiev, Nanostructured Cu-Cr alloy with high strength and electrical conductivity, J. Appl. Physics 115 (2014) 194301-1-4.

DOI: 10.1063/1.4874655

[14] S.V. Dobatkin, J. Gubicza, D.V. Shangina, N.R. Bochvar, N.Y. Tabachkova, High strength and good electrical conductivity in Cu–Cr alloys processed by severe plastic deformation, Mater. Lettes 153 (2015) 5-9.

DOI: 10.1016/j.matlet.2015.03.144

[15] K.X. Wei, W. Wei, F. Wang, Q.B. Du, I.V. Alexandrov, J. Hu, Microstructure, mechanical properties and electrical conductivity of industrial Cu–0. 5%Cr alloy processed by severe plastic deformation, Mater. Sci. Eng. A 528 (2011) 1478-1484.

DOI: 10.1016/j.msea.2010.10.059

[16] M. I. Aleutdinova, V. V. Fadin, A.V. Kolubaev, V. A. Aleutdinova, Contact Characteristics of Metallic Materials in Conditions of Heavy Loading by Friction or by Electric Current, Frict. Wear Res. 2 (2014) 22-28.

DOI: 10.1063/1.4898903

[17] L. Kommel, R. Veinthal, V. Mikli, A. Dedov. Study of the ultrafine-grains intrinsic nanostructure refinement by severe plastic deformation of copper alloys. Proc. 3rd. Int. Conf. Optimization and Analysis of Structures (OAS 2015), Tartu, Estonia, August 23-25, 2015, Tartu University press.
