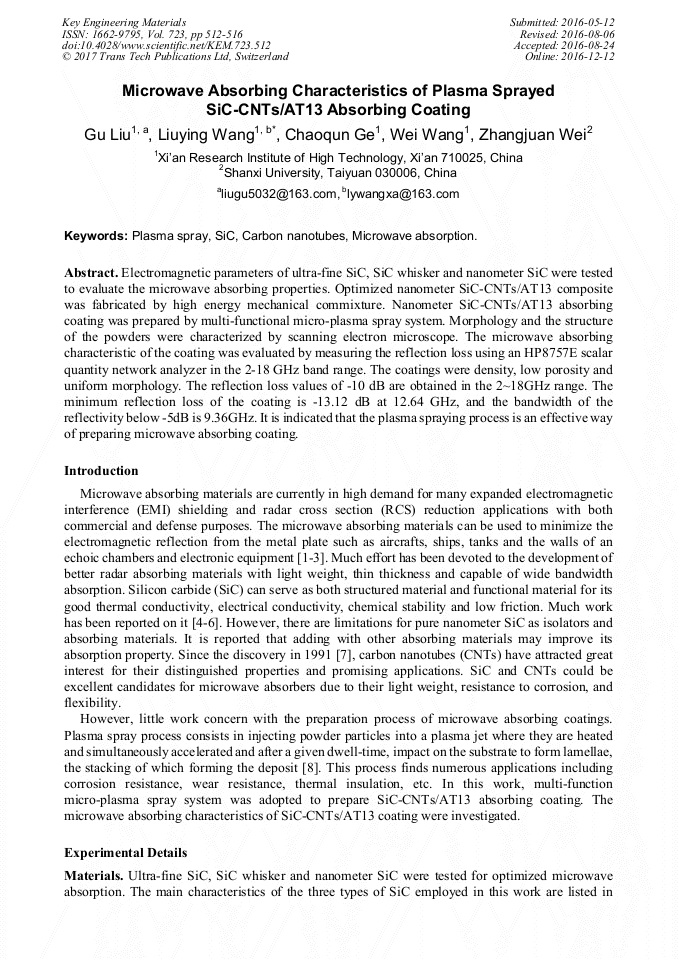

Microwave Absorbing Characteristics of Plasma Sprayed SiC-CNTs/AT13 Absorbing Coating

Abstract:

Electromagnetic parameters of ultra-fine SiC, SiC whisker and nanometer SiC were tested to evaluate the microwave absorbing properties. Optimized nanometer SiC-CNTs/AT13 composite was fabricated by high energy mechanical commixture. Nanometer SiC-CNTs/AT13 absorbing coating was prepared by multi-functional micro-plasma spray system. Morphology and the structure of the powders were characterized by scanning electron microscope. The microwave absorbing characteristic of the coating was evaluated by measuring the reflection loss using an HP8757E scalar quantity network analyzer in the 2-18 GHz band range. The coatings were density, low porosity and uniform morphology. The reflection loss values of -10 dB are obtained in the 2~18GHz range. The minimum reflection loss of the coating is -13.12 dB at 12.64 GHz, and the bandwidth of the reflectivity below -5dB is 9.36GHz. It is indicated that the plasma spraying process is an effective way of preparing microwave absorbing coating.

• Periodical: Key Engineering Materials (Volume 723)
• Pages: 512-516
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.723.512
• Online since: December 2016
• Authors: Gu Liu, Liu Ying Wang*, Chao Qun Ge, Wei Wang, Zhang Juan Wei
• Keywords: Carbon Nanotubes, Microwave Absorption, Plasma Spray, SiC

References

[1] H. Liu, H. Cheng, H. Tian, Design, preparation and microwave absorbing properties of resin matrix composites reinforced by SiC fibers with different electrical properties, Mater. Sci. Eng. B, 179 (2014) 17-24.

DOI: 10.1016/j.mseb.2013.09.019

[2] F. Ye, L. Zhang, X. Yin, et al. Dielectric and EMW absorbing properties of PDCs-SiBCN annealed at different temperatures, J. Eur. Ceram. Soc., 33 (2013) 1469-1477.

DOI: 10.1016/j.jeurceramsoc.2013.01.006

[3] X. G. Liu, B. Li, D. Y. Geng, et al. (Fe, Ni)/C nanocapsules for electromagnetic-wave-absorber in the whole Ku-band, Carbon, 47 (2009) 470-474.

DOI: 10.1016/j.carbon.2008.10.028

[4] H. Liu, H. Tian, H. Cheng, Dielectric properties of SiC fiber-reinforced SiC matrix composites in the temperature range from 25 to 700 ℃ at frequencies between 8. 2 and 18 GHz, J. Nucl. Mater. 432 (2013) 57-60.

DOI: 10.1016/j.jnucmat.2012.08.026

[5] X. L. Su, W. C. Zhou, J. Xu, et al. Preparation and dielectric property of B and N-codoped SiC powder by combustion synthesis, J. Alloys Compd., 551(2013) 343–347.

DOI: 10.1016/j.jallcom.2012.10.153

[6] F. Ye1, L. T. Zhang, X. W. Yin, et al. Dielectric and Electromagnetic Wave Absorbing Properties of Two Types of SiC Fibres with Different Compositions, J. Mater. Sci. Technol., 29 (2013) 55-58.

DOI: 10.1016/j.jmst.2012.11.006

[7] S. Iijima. Helical microtubules of graphitic carbon. Nature, 354 (1991) 56-61.

[8] A. F. Kanta, M. P. Planche, G. Montavon, et al. In-flight and upon impact particle characteristics modelling in plasma spray process. Surf. Coat. Technol., 204(2010) 1542-1548.

DOI: 10.1016/j.surfcoat.2009.09.076

[9] L. Y. Wang, H. G. Wang, S. C. Hua, et al. Study of Multi-Function Micro-Plasma Spraying Technology. Plasma Sci. Technol. 9 (2007) 52-56.

[10] G. Liu, L. Y. Wang, G. M. Chen, et al. Comparison Study on Microwave Absorbing Properties of SiC Absorbers. Appl. Mech. Mater. 117-119 (2012) 1057-1060.
