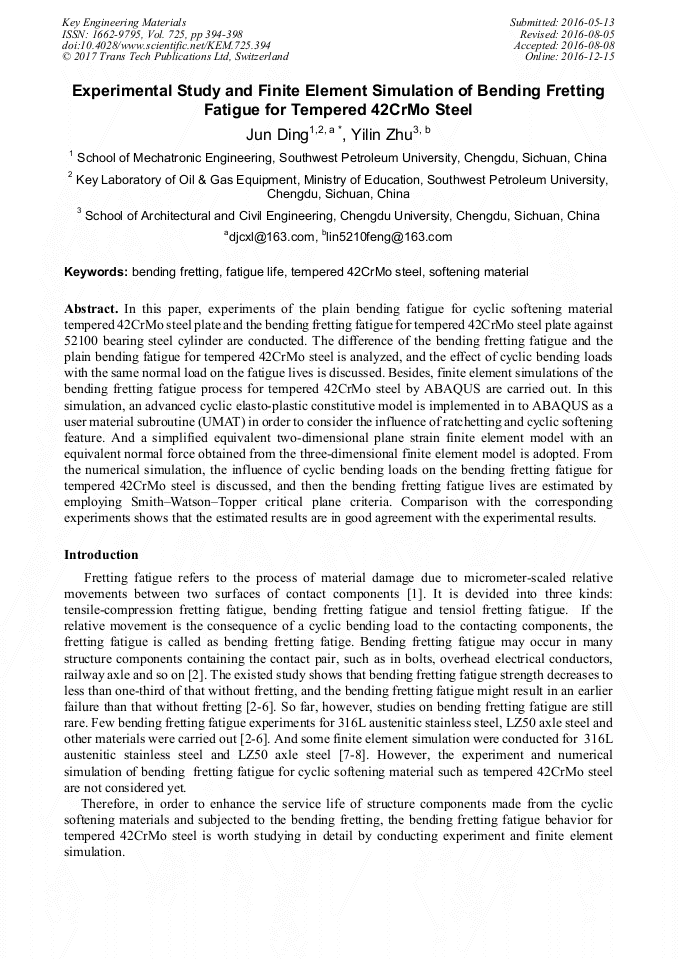

Experimental Study and Finite Element Simulation of Bending Fretting Fatigue for Tempered 42CrMo Steel

Abstract:

In this paper, experiments of the plain bending fatigue for cyclic softening material tempered 42CrMo steel plate and the bending fretting fatigue for tempered 42CrMo steel plate against 52100 bearing steel cylinder are conducted. The difference of the bending fretting fatigue and the plain bending fatigue for tempered 42CrMo steel is analyzed, and the effect of cyclic bending loads with the same normal load on the fatigue lives is discussed. Besides, finite element simulations of the bending fretting fatigue process for tempered 42CrMo steel by ABAQUS are carried out. In this simulation, an advanced cyclic elasto-plastic constitutive model is implemented in to ABAQUS as a user material subroutine (UMAT) in order to consider the influence of ratchetting and cyclic softening feature. And a simplified equivalent two-dimensional plane strain finite element model with an equivalent normal force obtained from the three-dimensional finite element model is adopted. From the numerical simulation, the influence of cyclic bending loads on the bending fretting fatigue for tempered 42CrMo steel is discussed, and then the bending fretting fatigue lives are estimated by employing Smith–Watson–Topper critical plane criteria. Comparison with the corresponding experiments shows that the estimated results are in good agreement with the experimental results.

• Periodical: Key Engineering Materials (Volume 725)
• Pages: 394-398
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.725.394
• Online since: December 2016
• Authors: Jun Ding*, Yi Lin Zhu
• Keywords: Bending Fretting, Fatigue Life, Softening Material, Tempered 42CrMo Steel

References

[1] D. Nowell, D. Dini, D.A. Hills, Recent developments in the understanding of fretting fatigue, Eng. Fract. Mech. 73(2006) 207- 222.

DOI: 10.1016/j.engfracmech.2005.01.013

[2] J.F. Peng, M.X. Shen, J.F. Zheng, X.Z. Lin, C. Song, G.Z. Kang, M.H. Zhu, An experimental study on bending fretting fatigue characteristics of LZ50 railway axle steel, In: FM2009-Transferability and Application of Current Mechanics Approaches, Eds. G.C. Sih, S.T. Tu and Z.D. Wang, East China University of Science and Technology Press, Shanghai, China, 2009, pp.495-499.

DOI: 10.1111/j.1460-2695.2012.01705.x

[3] L. Tian, H. Chen, J.F. Peng, F. Cao, J.H. Liu, C. Song, M.H. Zhu, Bending Fretting Fatigue Characteristics of 40CrNi2MoA Alloy Steel, Lubr. Eng. 39(2014)14-18 (in Chinese).

[4] J.F. Peng, C. Song, M.X. Shen, J.F. Zheng, Z.R. Zhou, M.H. Zhu, An experimental study on bending fretting fatigue characteristics of 316L austenitic stainless steel, Tribol. Int. 44(2011) 1417-1426.

DOI: 10.1016/j.triboint.2010.11.013

[5] D.W. Liu, J.F. Peng, L. Tian, C. Song, J.H. Liu, M.H. Zhu, Bending fretting fatigue characteristics of 30CrNiMo alloy steel, Mater. Mech. Eng. 38(2014)48-52. (in Chinese).

[6] C.S. Jiang, J.F. Peng, M.X. Shen, C. Song, Y.L. Zhu, M.H. Zhu, Finite element simulation of bending fretting and fatigue life prediction for 316L stainless steel component, Mater. Mech. Eng. 37 (2013) 81-84. (in Chinese).

[7] Y.L. Zhu, G.Z. Kang, J. Ding, M.H. Zhu, Study on Bending Fretting Fatigue of LZ50 Axle Steel Considering Ratchetting by Finite Element Method, Fatigue Fract. Eng. Mater. Struct. 36(2012) 127-138.

DOI: 10.1111/j.1460-2695.2012.01705.x

[8] J. Ding, G.Z. Kang, Y.L. Zhu, M.H. Zhu, Finite element analysis on bending fretting fatigue of 316L stainless steel considering ratchetting and cyclic hardening, Int. J. Mech. Sci. 86(2014)26-33.

DOI: 10.1016/j.ijmecsci.2013.09.015

[9] Y.J. Liu, G.Z. Kang, Q. Gao, J. Ding, Ratcheting-fatigue interaction of tempered 42CrMo steel and its damage-coupled visoco-plastic constitutive model, Chinese J. Solid Mech. 30(2009)109-115. (in Chinese).

DOI: 10.1016/j.ijplas.2008.06.004

[10] M. Abdel-Karim, N. Ohno, Kinematic hardening model suitable for ratchetting with steady-state, Int. J. Plasticity. 16(2000)225-240.

DOI: 10.1016/s0749-6419(99)00052-2
