Study of Large-Expansion-Ratio Tube Hydroforming with Movable Dies

Abstract:

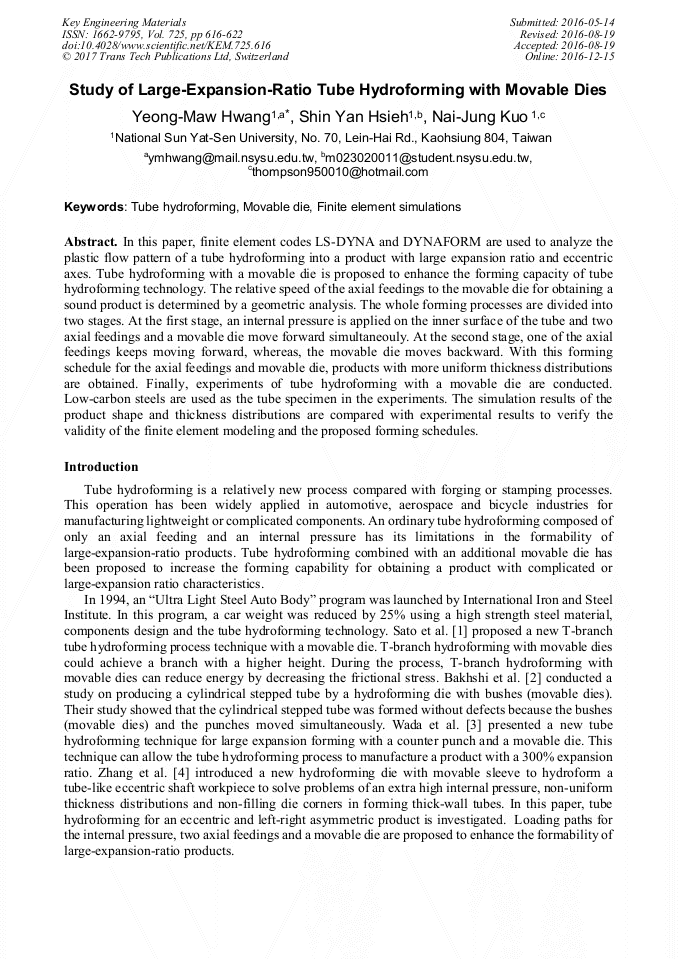

In this paper, finite element codes LS-DYNA and DYNAFORM are used to analyze the plastic flow pattern of a tube hydroforming into a product with large expansion ratio and eccentric axes. Tube hydroforming with a movable die is proposed to enhance the forming capacity of tube hydroforming technology. The relative speed of the axial feedings to the movable die for obtaining a sound product is determined by a geometric analysis. The whole forming processes are divided into two stages. At the first stage, an internal pressure is applied on the inner surface of the tube and two axial feedings and a movable die move forward simultaneouly. At the second stage, one of the axial feedings keeps moving forward, whereas, the movable die moves backward. With this forming schedule for the axial feedings and movable die, products with more uniform thickness distributions are obtained. Finally, experiments of tube hydroforming with a movable die are conducted. Low-carbon steels are used as the tube specimen in the experiments. The simulation results of the product shape and thickness distributions are compared with experimental results to verify the validity of the finite element modeling and the proposed forming schedules.

• Periodical: Key Engineering Materials (Volume 725)
• Pages: 616-622
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.725.616
• Online since: December 2016
• Authors: Yeong Maw Hwang*, Shin Yan Hsieh, Nai Jung Kuo
• Keywords: Finite Element Simulation, Movable Die, Tube Hydroforming
