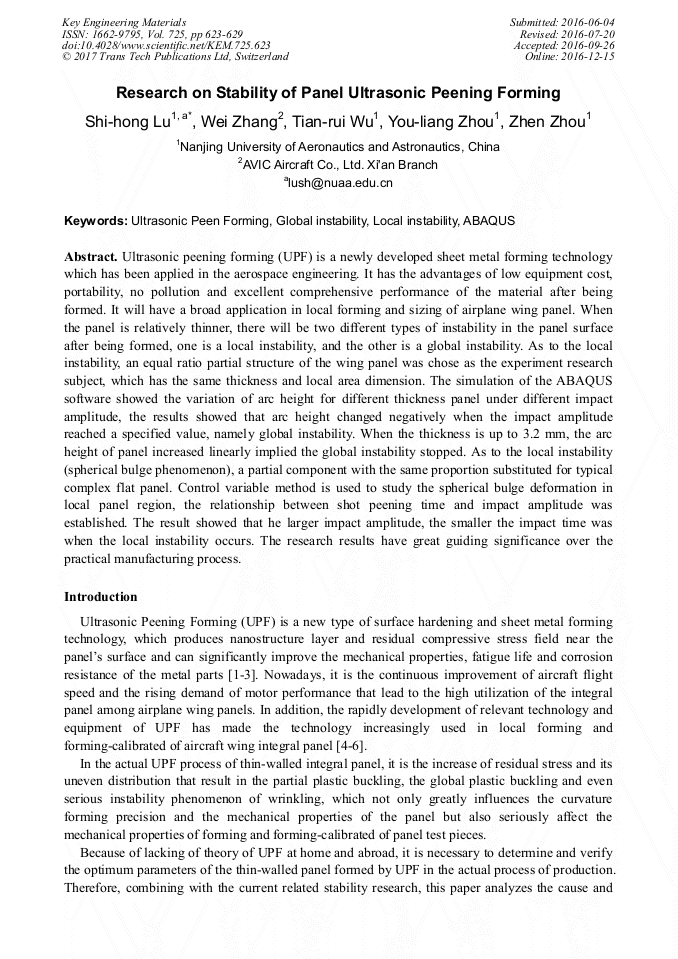

Research on Stability of Panel Ultrasonic Peening Forming

Abstract:

Ultrasonic peening forming (UPF) is a newly developed sheet metal forming technology which has been applied in the aerospace engineering. It has the advantages of low equipment cost, portability, no pollution and excellent comprehensive performance of the material after being formed. It will have a broad application in local forming and sizing of airplane wing panel. When the panel is relatively thinner, there will be two different types of instability in the panel surface after being formed, one is a local instability, and the other is a global instability. As to the local instability, an equal ratio partial structure of the wing panel was chose as the experiment research subject, which has the same thickness and local area dimension. The simulation of the ABAQUS software showed the variation of arc height for different thickness panel under different impact amplitude, the results showed that arc height changed negatively when the impact amplitude reached a specified value, namely global instability. When the thickness is up to 3.2mm, the arc height of panel increased linearly implied the global instability stopped. As to the local instability (spherical bulge phenomenon), a partial component with the same proportion substituted for typical complex flat panel. Control variable method is used to study the spherical bulge deformation in local panel region, the relationship between shot peening time and impact amplitude was established. The result showed that he larger impact amplitude, the smaller the impact time was when the local instability occurs. The research results have great guiding significance over the practical manufacturing process.

• Periodical: Key Engineering Materials (Volume 725)
• Pages: 623-629
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.725.623
• Online since: December 2016
• Authors: Shi Hong Lu*, Wei Zhang, Tian Rui Wu, You Liang Zhou, Zhen Zhou
• Keywords: ABAQUS, Global Instability, Local Instability, Ultrasonic Peen Forming

References

[1] H. Luong, M.R. Hill, The effects of laser peening and shot peening on high cycle fatigue in 7050-T7451 aluminum alloy [J], Mater. Sci. Eng. A. 527(3) (2010) 699-707.

DOI: 10.1016/j.msea.2009.08.045

[2] S. Bagherifard, M. Guagliano, Fatigue behavior of a low-alloy steel with nanostructure surface obtained by severe shot peening [J], Eng. Fract. Mech. 81 (2011) 56-68.

DOI: 10.1016/j.engfracmech.2011.06.011

[3] S.M. Hassani-Gangaraj, A. Moridi, M. Guagliano et al., The effect of nitriding, severe shot peening and their combination on the fatigue behavior and micro-structure of a low-alloy steel [J], Int. J. Fatigue. 62(2) (2014) 67-76.

DOI: 10.1016/j.ijfatigue.2013.04.017

[4] Application and Development Trend of Advanced Sheet Metal Forming Technology [J]. Aerosp. Sci. Technol. 1 (2012) 1-4.

[5] The researches and applications of advanced aeronautical metal sheet forming technology, Dual Use Technologies & Products, 7 (2012) 9-11.

[6] X. Shi, S. Lu, W. Zhang, Study on Surface Integrity of Aluminum Alloy Ultrasonic Shot Peening Forming Workpieces [J], China Mechanical Engineering, (2013).

[7] L. Arnold, Bifurcation Theory [J], Itogi Nauki I Tekhniki. ser. sovrem. probl. mat. fund. napr. 5(2) (1986) 5-218.

[8] P.P. Mu, X.P. Wan, M.Y. Zhao, A Study of the Stability of Composite Stiffened Plate [J], Mech. Sci. Technol. Aerosp. Eng. 28(9) (2009) 1190-1193.

[9] G.H. Zeng, C. Dong, M. Zhao, Analysis on Stability of the Thin Wall Stiffened Plate [C], The first national conference on mechanical problems in the field of aerospace, (2010).

[10] S.J. Hamedani, A.R. Ranji, Buckling analysis of stiffened plates subjected to non-uniform biaxial compressive loads using conventional and super finite elements [J], Thin Wall. Struct. 64(64) (2013) 41-49.

DOI: 10.1016/j.tws.2012.12.004

[11] D. Wang, M.M. Abdalla, Global and local instability analysis of grid-stiffened composite panels [J], Compos. Struct. 119(119) (2015) 767-776.

DOI: 10.1016/j.compstruct.2014.09.050

[12] M. Ouadia, K. Abdellatif, Reliability Analysis of Dynamic Buckling Stiffened Panels [J], Procedia Technol. 22 (2016) 139-145.

DOI: 10.1016/j.protcy.2016.01.022
