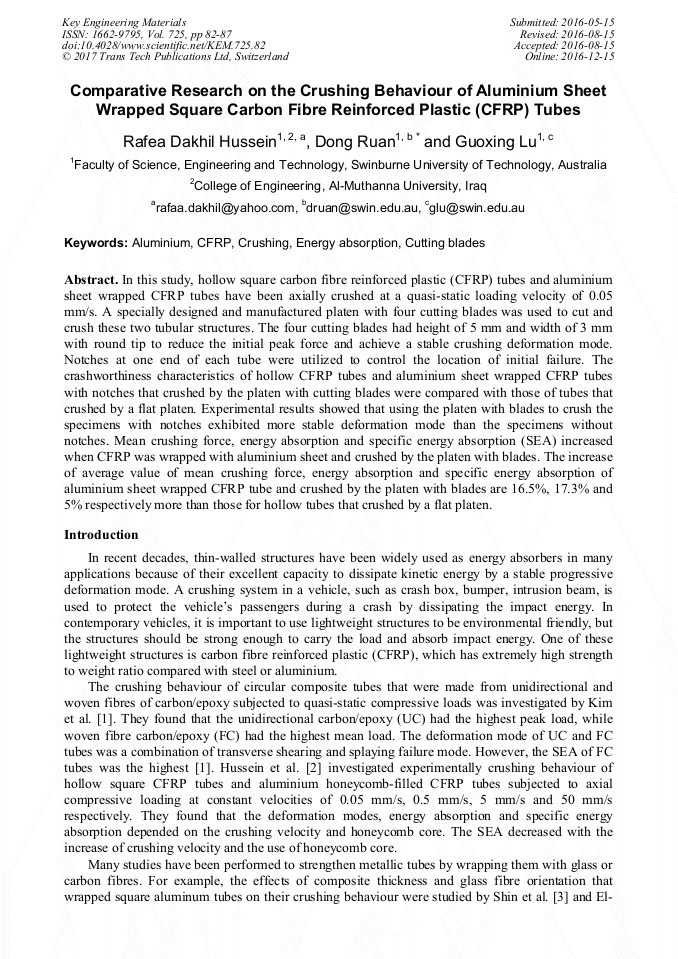

Comparative Research on the Crushing Behaviour of Aluminium Sheet Wrapped Square Carbon Fibre Reinforced Plastic (CFRP) Tubes

Abstract:

In this study, hollow square carbon fibre reinforced plastic (CFRP) tubes and aluminium sheet wrapped CFRP tubes have been axially crushed at a quasi-static loading velocity of 0.05 mm/s. A specially designed and manufactured platen with four cutting blades was used to cut and crush these two tubular structures. The four cutting blades had height of 5 mm and width of 3 mm with round tip to reduce the initial peak force and achieve a stable crushing deformation mode. Notches at one end of each tube were utilized to control the location of initial failure. The crashworthiness characteristics of hollow CFRP tubes and aluminium sheet wrapped CFRP tubes with notches that crushed by the platen with cutting blades were compared with those of tubes that crushed by a flat platen. Experimental results showed that using the platen with blades to crush the specimens with notches exhibited more stable deformation mode than the specimens without notches. Mean crushing force, energy absorption and specific energy absorption (SEA) increased when CFRP was wrapped with aluminium sheet and crushed by the platen with blades. The increase of average value of mean crushing force, energy absorption and specific energy absorption of aluminium sheet wrapped CFRP tube and crushed by the platen with blades are 16.5%, 17.3% and 5% respectively more than those for hollow tubes that crushed by a flat platen.

• Periodical: Key Engineering Materials (Volume 725)
• Pages: 82-87
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.725.82
• Online since: December 2016
• Authors: Rafea Dakhil Hussein, Dong Ruan*, Guo Xing Lu
• Keywords: Aluminium, CFRP, Crushing, Cutting Blades, Energy Absorption

References

[1] J.S. Kim, H.J. Yoon, K.B. Shin, A study on crushing behaviors of composite circular tubes with different reinforcing fibers, Int. J. Impact Eng. 38 (2011) 198-207.

DOI: 10.1016/j.ijimpeng.2010.11.007

[2] R.D. Hussein, D. Ruan, G. Lu, I. Sbarski, Axial crushing behaviour of honeycomb-filled square carbon fibre reinforced plastic (CFRP) tubes, Compos. Struct. 140 (2016) 166-179.

DOI: 10.1016/j.compstruct.2015.12.064

[3] K.C. Shin, J.J. Lee, K.H. Kim, M.C. Song, J.S. Huh, Axial crush and bending collapse of an aluminum/GFRP hybrid square tube and its energy absorption capability, Compos. Struct. 57 (2002) 279-287.

DOI: 10.1016/s0263-8223(02)00094-6

[4] H. El-Hage, P.K. Mallick, N. Zamani, A numerical study on the quasi-static axial crush characteristics of square aluminum - Composite hybrid tubes, Compos. Struct. 73 (2006) 505-514.

DOI: 10.1016/j.compstruct.2005.03.004

[5] M.R. Bambach, M. Elchalakani, X.L. Zhao, Composite steel-CFRP SHS tubes under axial impact, Compos. Struct. 87 (2009) 282-292.

DOI: 10.1016/j.compstruct.2008.02.008

[6] M.R. Bambach, Axial capacity and crushing behavior of metal-fiber square tubes - steel, stainless steel and aluminum with CFRP, Composite Part B 41 (2010) 550-559.

DOI: 10.1016/j.compositesb.2010.06.002

[7] S.Y. Jin, W. Altenhof, T. Kapoor, An experimental investigation into the cutting deformation mode of AA6061-T6 round extrusions, Thin-Walled Struct. 44 (2006) 773-786.

DOI: 10.1016/j.tws.2006.05.009

[8] S.Y. Jin, W. Altenhof, Comparison of the load/displacement and energy absorption performance of round and square AA6061-T6 extrusions under a cutting deformation mode, Int. J. Crashworthiness 12 (2007) 265-278.

DOI: 10.1080/13588260701441183

[9] ASTM D3039/D3039M, A 2014, Standard test method for tensile properties of polymer matrix composite materials, US.

[10] ASTM E8/E8M, A 2015, Standard test methods for tension testing of metallic materials, US.
