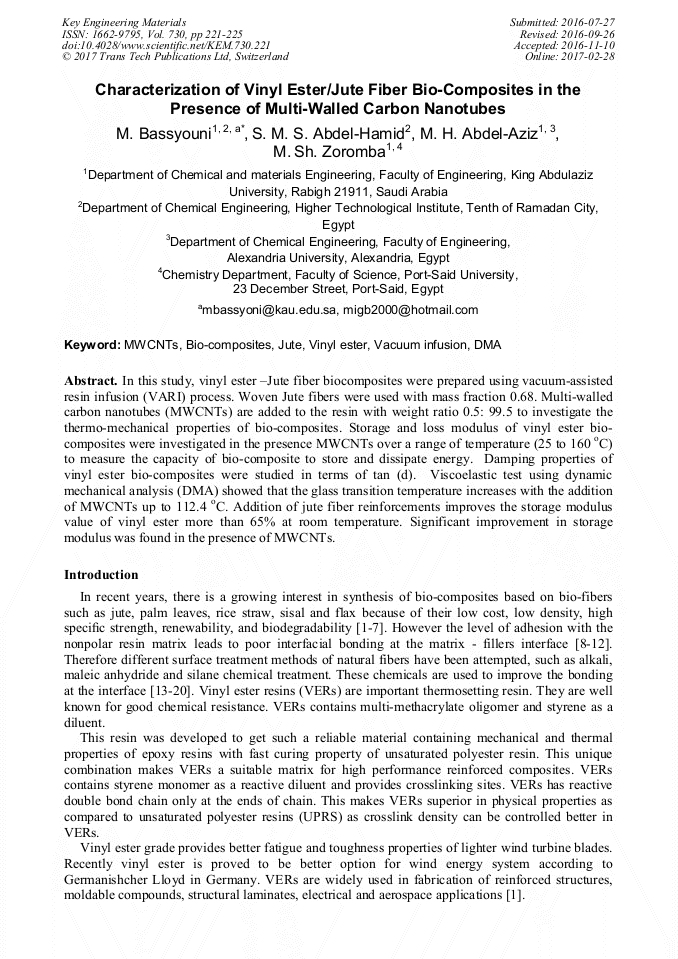

Characterization of Vinyl Ester/Jute Fiber Bio-Composites in the Presence of Multi-Walled Carbon Nanotubes

Abstract:

In this study, vinyl ester –Jute fiber biocomposites were prepared using vacuum-assisted resin infusion (VARI) process. Woven Jute fibers were used with mass fraction 0.68. Multi-walled carbon nanotubes (MWCNTs) are added to the resin with weight ratio 0.5: 99.5 to investigate the thermo-mechanical properties of bio-composites. Storage and loss modulus of vinyl ester bio-composites were investigated in the presence MWCNTs over a range of temperature (25 to 160 ^oC) to measure the capacity of bio-composite to store and dissipate energy. Damping properties of vinyl ester bio-composites were studied in terms of tan (d). Viscoelastic test using dynamic mechanical analysis (DMA) showed that the glass transition temperature increases with the addition of MWCNTs up to 112.4 ^oC. Addition of jute fiber reinforcements improves the storage modulus value of vinyl ester more than 65% at room temperature. Significant improvement in storage modulus was found in the presence of MWCNTs.

• Periodical: Key Engineering Materials (Volume 730)
• Pages: 221-225
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.730.221
• Online since: February 2017
• Authors: Mohamed Bassyouni*, Shereen M.S. Abdel-Hamid, Mohamed H. Abdel-Aziz, M.Sh. Zoromba
• Keywords: Bio-Composites, DMA, Jute, MWCNTs, Vacuum Infusion, Vinyl Ester

References

[1] J. Umair, M. K. Zaffar, M. B. Khan, M. Bassyouni, S. M. S. Abdel-Hamid, M. H. Abdel-Aziz, Syed W. Hasan, Fabrication and thermo-mechanical characterization of glass fiber/vinyl ester wind turbine rotor blade, Compos. Part B: Eng. 91 (2016).

DOI: 10.1016/j.compositesb.2015.12.034

[2] M. Bassyouni, A. S. Sayed, M. A. Sadek, F. H. Ashour, Synthesis and characterization of Polyurethane – treated waste milled light bulbs composites, Compos. Part B: Eng. 43(3) (2012) 1439-1444.

DOI: 10.1016/j.compositesb.2011.08.014

[3] M. Bassyouni, N. Iqbal, S. S. Iqbal, S. M. S. Abdel-hamid, M. H. Abdel-Aziz, Ablation and thermo-mechanical investigation of short carbon fiber impregnated elastomeric ablatives for ultrahigh temperature applications, Polymer Degradation and Stability, 110 (2014).

DOI: 10.1016/j.polymdegradstab.2014.08.032

[4] Al-Qabandi, D. S. Anjali, Salah Al-Enezi, M. Bassyouni, Synthesis, fabrication and mechanical characterization of reinforced epoxy and polypropylene composites for wind turbine blades, J. Reinforced Plast. Compos. 33(24) (2014) 2287-2299.

DOI: 10.1177/0731684414561538

[5] M. Youssef, M. Bassyouni, M. Almutawa, Materials Selection, Synthesis and Dielectric Properties of PVC Nano-composites, J. Adv. Mater. Sci. Eng. 2013(12) (2013).

[6] M. Bassyouni, A. G. Saud. Materials Selection strategy and surface treatment of polymer composites for wind turbine blades fabrication, Polym. polym. Compos. J. 21(7) (2013).

DOI: 10.1177/096739111302100708

[7] I. Nadeem, S. Sadia, B. K. Mohammad, Bassyouni Mohamed, M. K. ZaffarKhan, Aluminum silicate fibers impregnated acrylonitrile butadiene rubber composites: Ablation, thermal transport/stability, and mechanical inspection, Appl. Polym. 130(6) (2013).

DOI: 10.1002/app.39717

[8] A. S. Sayed, M. A. Sadek, F. H. Ashour, M. Bassyouni, Effects of surface treatment of ground rice husk on the polyurethane based on castor oil, Polym. Polym. Compos. 17(8) (2009) 467-471.

DOI: 10.1177/096739110901700802

[9] M. Bassyouni, S. W. Hasan, The use of rice straw and husk fibers as reinforcements in composites, Biofib. Reinforcem. Comp. Mater. 1 (2014) 385-421, 1 edition.

DOI: 10.1533/9781782421276.4.385

[10] M Bassyouni, S. W Hasan, M. H. Abdel-Aziz, S. M. S Abdel-hamid, S. Naveed, Date palm waste gasification in downdraft gasifier and simulation using ASPEN HYSYS, Energ. Convers. Manag. 88 (2014) 693-699.

DOI: 10.1016/j.enconman.2014.08.061

[11] M. Hosny, N. Nowesser, A. S. Al Hussaini, M. Sh. Zoromba, Doped copolymer of polyanthranilic acid and o-aminophenol (AA-co-OAP): Synthesis, spectral characterization and the use of the doped copolymer as precursor of α-Fe2O3 nanoparticles, J. Molecul. Struct. 1106 (2016).

DOI: 10.1016/j.molstruc.2015.10.103

[12] N. M Hosny, A. S. Al-Hussaini, N. Nowesser and M. Sh. Zoromba, Polyanthranilic acid: Effect of inclusion of some transition metal ions and use of the doped polymer in synthesizing a-Fe2O3 nanoparticles via thermal decomposition route, J. Therm. Anal. Calorim. (2015).

DOI: 10.1007/s10973-015-5121-z

[13] N. M. Hosny, N. Nowesser, A. S. Al Hussaini, M. Sh. Zoromba, Solid State Synthesis of Hematite Nanoparticles from Doped Poly o-aminophenol (POAP), J. Inorg. Organomet. Polym. 26(1) (2016) 41-47.

DOI: 10.1007/s10904-015-0284-4

[14] M. Sh. Zoromba, M. Bassyouni, S. M. S. Abdel-Hamid, Effect of modified kaolinite by using fatty acids on NR and SBR reinforced composites, Rubb. Chem. Tech. 88(3) (2015) 449-462.

DOI: 10.5254/rct.15.84910

[15] M. Sh. Zoromba, N. A. El-Ghamaz, A. Samir, Effect of doping with nickel ions on the electrical properties of poly (aniline-co-o-anthranilic acid) and doped copolymer as precursor of NiO nanoparticles, J. Inorg. Organometal. Polym. Mater. 25 (4) (2015).

DOI: 10.1007/s10904-015-0199-0

[16] N. A. El-Ghamaz, M. A. Diab, M. Sh. Zoromba, A. Z. El-Sonbati, O. El-Shahat, Conducting Polymers. VII. Effect of doping with iodine on the dielectrical and electrical conduction properties of polyaniline Synthesis and Reactivity in Inorganic, Metal-Organ. and Nano-Metal Chemistry, 46 (8) (2016).

DOI: 10.1080/15533174.2015.1004435

[17] M. Sh. Zoromba, N. M. Hosny, Synthesis of Fe2O3, Co3O4 and NiO nanoparticles by thermal decomposition of doped polyaniline precursors, J. Therm. Anal. Calorim. 119(1) (2015) 605-611.

DOI: 10.1007/s10973-014-4170-z

[18] M. Sh. Zoromba, A. S. Al-Hussaini, Terpolymers as precursors for CuO nanoparticles synthesis, J. Appl. Polym. Sci. 131(23) (2014) 41150.

DOI: 10.1002/app.41150

[19] N. A. El-Ghamaz, M. A. Diab, M. Sh. Zoromba, A. Z. El-Sonbati, O. El-Shahat, Conducting polymers. VI. Effect of doping with iodine on the dielectrical and electrical conduction properties of polyacrylonitrile, Solid State Sci. 24(8) (2013).

DOI: 10.1016/j.solidstatesciences.2013.07.016

[20] M. H. Nasser, S. Z. Mohamed, S. Ghada, A. Samir, Synthesis, structural and optical properties of Eskolaite nanoparticles derived from Cr doped polyanthranilic acid (CrPANA), J. Molec. Struct. 1122 (15) (2016) 117-122.

DOI: 10.1016/j.molstruc.2016.05.071
