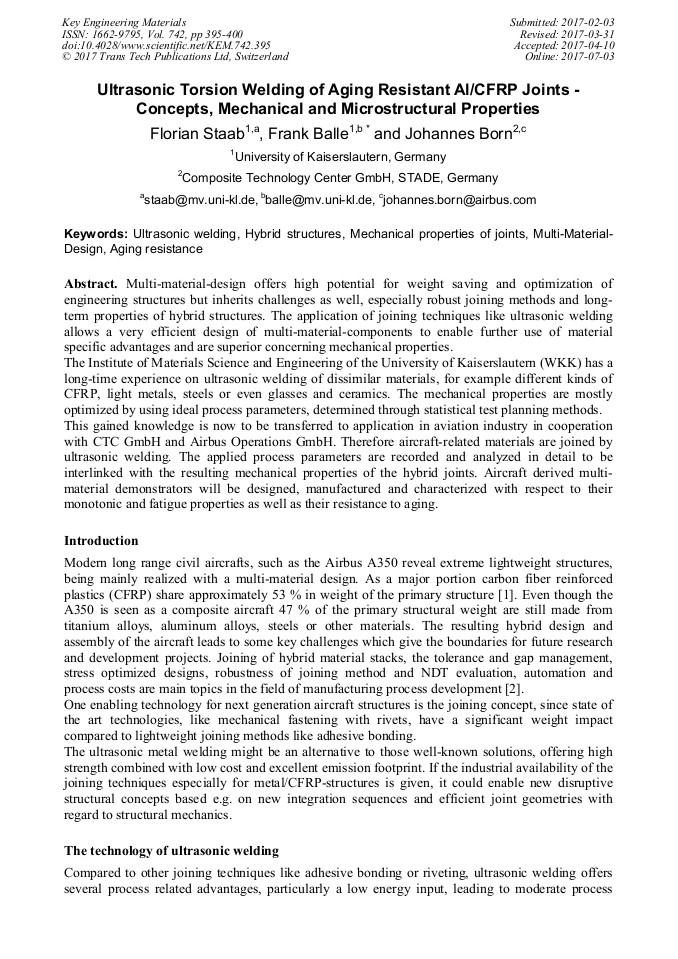

Ultrasonic Torsion Welding of Aging Resistant Al/CFRP Joints - Concepts, Mechanical and Microstructural Properties

Abstract:

Multi-material-design offers high potential for weight saving and optimization of engineering structures but inherits challenges as well, especially robust joining methods and long-term properties of hybrid structures. The application of joining techniques like ultrasonic welding allows a very efficient design of multi-material-components to enable further use of material specific advantages and are superior concerning mechanical properties.The Institute of Materials Science and Engineering of the University of Kaiserslautern (WKK) has a long-time experience on ultrasonic welding of dissimilar materials, for example different kinds of CFRP, light metals, steels or even glasses and ceramics. The mechanical properties are mostly optimized by using ideal process parameters, determined through statistical test planning methods.This gained knowledge is now to be transferred to application in aviation industry in cooperation with CTC GmbH and Airbus Operations GmbH. Therefore aircraft-related materials are joined by ultrasonic welding. The applied process parameters are recorded and analyzed in detail to be interlinked with the resulting mechanical properties of the hybrid joints. Aircraft derived multi-material demonstrators will be designed, manufactured and characterized with respect to their monotonic and fatigue properties as well as their resistance to aging.

• Periodical: Key Engineering Materials (Volume 742)
• Pages: 395-400
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.742.395
• Online since: July 2017
• Authors: Florian Staab, Frank Balle*, Johannes Born
• Keywords: Aging Resistance, Hybrid Structure, Mechanical Properties of Joints, Multi-Material-Design, Ultrasonic Welding

References

[1] http: /www. airbusgroup. com/int/en/investors-shareholders/Publications. html#chapter-04; Guy Hellard; Composites in Airbus-A Long Story of Innovations and Experiences, (2016).

[2] B. Knickrehm, J. Jendrny, A brief story of technical challenges in the aerospace industry – Of rates and reach; 18. Paderborner Symposium Fügetechnik; Oral presentation, (2013).

[3] K. Graeff, Ultrasonic Metal Welding, In: New developments in advanced welding, Woodhead Publishing, (2005).

[4] I.E. Gunduz, T. Ando, E. Shattuck, P.Y. Wong, C.C. Doumanidis, Enhanced Diffusion and Phase Transformations During Ultrasonic Welding of Zinc and Aluminium, Scripta Materialia, 52, p.939–943, (2005).

DOI: 10.1016/j.scriptamat.2004.12.015

[5] F. Balle, D. Eifler, Statistical test planning for ultrasonic welding of dissimilar materials using the example of aluminum-carbon fiber reinforced polymers (CFRP) joints, Materialwiss. Werkstofftech., vol. 43, no. 4, 286-292, (2012).

DOI: 10.1002/mawe.201200943

[6] F. Balle, G. Wagner, D. Eifler, Ultrasonic Spot Welding of Aluminum Sheet/Carbon Fiber Reinforced Polymer Joints", Mat. Sci. and Eng. Techn., 38(11), 934-938, (2007).

DOI: 10.1002/mawe.200700212

[7] G. Wagner, F. Balle, D. Eifler, Ultrasonic Welding of Hybrid Joints, Journal of the Minerals, Metals and Materials Society (JOM), 64(3), 401-406, (2012).

DOI: 10.1007/s11837-012-0269-5

[8] F. Balle, S. Emrich, G. Wagner, D. Eifler, A. Brodyanski and M. Kopnarski, Improvement of ultrasonically welded aluminum/carbon fiber reinforced polymer-joints by surface technology and high resolution analysis. Adv. Eng. Mat., 15, 814-820, (2013).

DOI: 10.1002/adem.201200282

[9] Z. Peng, X. Nie, Galvanic corrosion property of contacts between carbon fiber cloth materials and typical metal alloys in an aggressive environment, Surf. Coat. Technol., 215, p.85–89, (2013).

DOI: 10.1016/j.surfcoat.2012.08.098

[10] D. Montgomery, Design and analysis of experiments, Wiley, New York, (2013).

[11] G. Box, Statistics for Experimenters: An Introduction to Design, Data Analysis, and Model Building, Wiley, New York, (1978).
