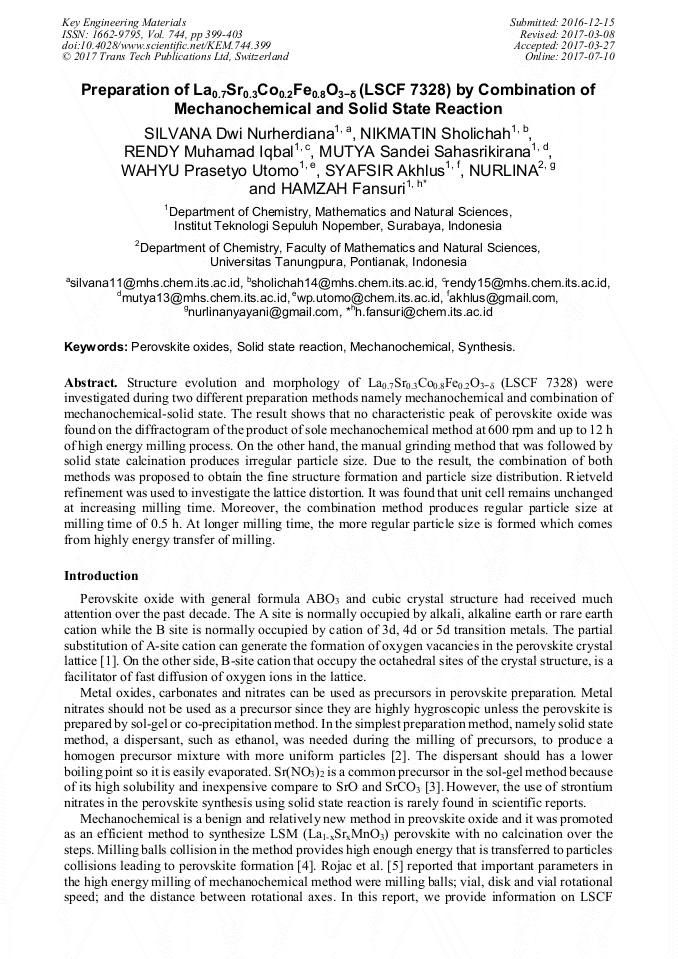

Preparation of La0.7Sr0.3Co0.2Fe0.8O3-δ (LSCF 7328) by Combination of Mechanochemical and Solid State Reaction

Article Preview

Abstract:

Structure evolution and morphology of La0.7Sr0.3Co0.8Fe0.2O3-δ (LSCF 7328) were investigated during two different preparation methods namely mechanochemical and combination of mechanochemical-solid state. The result shows that no characteristic peak of perovskite oxide was found on the diffractogram of the product of sole mechanochemical method at 600 rpm and up to 12 h of high energy milling process. On the other hand, the manual grinding method that was followed by solid state calcination produces irregular particle size. Due to the result, the combination of both methods was proposed to obtain the fine structure formation and particle size distribution. Rietveld refinement was used to investigate the lattice distortion. It was found that unit cell remains unchanged at increasing milling time. Moreover, the combination method produces regular particle size at milling time of 0.5 h. At longer milling time, the more regular particle size is formed which comes from highly energy transfer of milling.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

399-403

Citation:

Online since:

July 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R. Watanabe, Y. Saito, C. Fukuhara, Enhancement of ethylbenzene dehydrogenation of perovskite-type BaZrO3 catalyst by a small amount of Fe substitution in the B-site, J. Mol. Catal. A Chem. 404-405 (2015) 57-64.

DOI: 10.1016/j.molcata.2015.04.010

Google Scholar

[2] Y. Zou, W. Zhou, S. Liu, Z. Shao, Sintering and oxygen permeation studies of La0. 6Sr0. 4Co0. 2Fe0. 8O3-δ ceramic membranes with improved purity, J. Eur. Ceram. Soc. 31 (2011) 2931-2938.

DOI: 10.1016/j.jeurceramsoc.2011.07.028

Google Scholar

[3] Y. Kathiraser, Z. Wang, N. T. Yang, S. Zahid, S. Kawi, Oxygen permeation and stability study of La0. 6Sr0. 4Co0. 8Ga0. 2O3-δ (LSCG) hollow fiber membrane with exposure to CO2, CH4 and He, J. Memb. Sci. 427 (2013) 240–249.

DOI: 10.1016/j.memsci.2012.09.014

Google Scholar

[4] Q. Zhang, T. Nakagawa, F. Saito, Mechanochemical synthesis of La0. 7Sr0. 3MnO3 by grinding constituent oxides. J. Alloys Compd. 308 (2000) 121–125.

DOI: 10.1016/s0925-8388(00)00901-4

Google Scholar

[5] T. Rojac, M. Kosec, B. Malič, J. Holc, The application of a milling map in the mechanochemical synthesis of ceramic oxides, J. Eur. Ceram. Soc. 26 (2006) 3711–3716.

DOI: 10.1016/j.jeurceramsoc.2005.11.013

Google Scholar

[6] H. Fansuri, M. I. Syafi'i, S. Romdoni, A. D. Mayitoh, W. P. Utomo, D. Prasetyoko, N. Widiastuti, I. K. Murwani, Subaer, Preparation of dense BaxSr1-xCo0. 8Fe0. 2O3 membranes: Effect of Ba2+ substituents and sintering method to the density, hardness and thermal expansion coefficient of the membranes, Adv. Mat. Lett. (Article in Press) (2017).

DOI: 10.5185/amlett.2017.6948

Google Scholar

[7] D. L. Perry, S. L Philips, Handbook of Inorganic Compounds, CRC Press, New York, (1995).

Google Scholar

[8] H. J. Wei, Y. Cao, W. J. Ji and C. T. Au, Lattice oxygen of La1-xSrxMO3 (M = Mn, Ni) and LaMnO3-α perovskite oxides for the partial oxidation of methane to synthesis gas, Catal. Commun. 9 (2008) 2509–2514.

DOI: 10.1016/j.catcom.2008.06.019

Google Scholar

[9] X. Dai, C. Yu, Q. Wu, Comparison of LaFeO3, La0. 8Sr0. 2FeO3, and La0. 8Sr0. 2Fe0. 9Co0. 1O3 perovskite oxides as oxygen carrier for partial oxidation of methane, J. Nat. Gas Chem. 17 (2008) 415–418.

DOI: 10.1016/s1003-9953(09)60019-0

Google Scholar

[10] Y. Sun, N. Yan, J. Li, H. Wu, J. L. Luo, K. T. Chuang, The effect of calcination temperature on the electrochemical properties of La0. 3Sr0. 7Fe0. 7Cr0. 3O3-x (LSFC) perovskite oxide anode of solid oxide fuel cells (SOFCs), Sustain. Energy Technol. Assessments, 8 (2014).

DOI: 10.1016/j.seta.2014.08.001

Google Scholar
