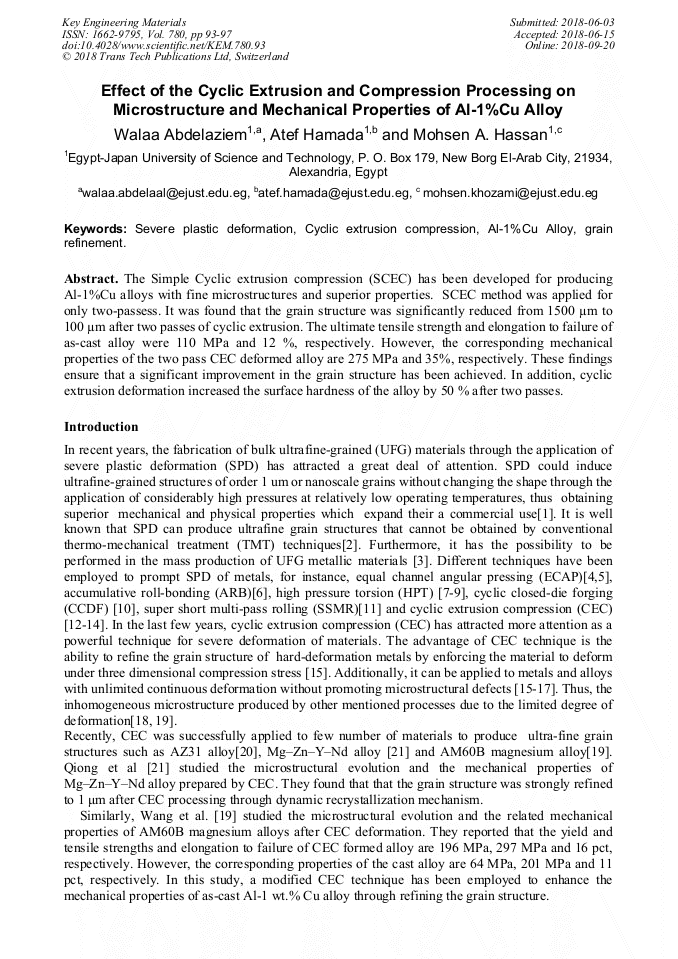

Effect of the Cyclic Extrusion and Compression Processing on Microstructure and Mechanical Properties of Al-1%Cu Alloy

Abstract:

The Simple Cyclic extrusion compression (SCEC) has been developed for producing Al-1%Cu alloys with fine microstructures and superior properties. SCEC method was applied for only two-passess.It was found that the grain structure was significantly reduced from 1500 μm to 100 μm after two passes of cyclic extrusion. The ultimate tensile strength and elongation to failure of as-cast alloy were 110 MPa and 12 %, respectively. However, the corresponding mechanical properties of the two pass CEC deformed alloy are 275 MPa and 35%, respectively. These findings ensure that a significant improvement in the grain structure has been achieved. In addition, cyclic extrusion deformation increased the surface hardness of the alloy by 50 % after two passes.

• Periodical: Key Engineering Materials (Volume 780)
• Pages: 93-97
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.780.93
• Online since: September 2018
• Authors: Walaa Abdelaziem*, Atef S. Hamada, Mohsen A. Hassan
• Keywords: Al-1%Cu Alloy, Cyclic Extrusion Compression, Grain Refinement, Severe Plastic Deformation

References

[1] R. Valiev, Y. Estrin, Z. Horita, T. Langdon, M. Zehetbauer and Y. Zhu. Mater. Res. Let.Vol. 1 (2016), pp.1-21.

[2] D. M. Jafarlou, E. Zalnezhad, A. S. Hamouda, G. Faraji, N. A. B. Mardi and M. A. H. Mohamed. Metall Mater. Trans A.Vol. 5 (2015), pp.2172-84.

[3] R. Valiev. Nature materials.Vol. 8 (2004), p.511.

[4] V. Segal. Mater. Sci. Eng. A.Vol. 1-2 (2002), pp.331-44.

[5] R. Z. Valiev and T. G. Langdon. Progress in materials science.Vol. 7 (2006), pp.881-981.

[6] L. Ghalandari, M. Mahdavian and M. Reihanian. Mater. Sci. Eng. A. Vol.593 (2014), pp.145-52.

[7] A. Zhilyaev, G. Nurislamova, B.-K. Kim, M. Baró, J. Szpunar and T. Langdon. Acta Materialia.Vol. 3 (2003), pp.753-65.

DOI: 10.1016/s1359-6454(02)00466-4

[8] A. Zhilyaev, K. Oh-Ishi, T. Langdon and T. McNelley. Mater. Sci. Eng. A. Vol. 410 (2005), pp.277-80.

[9] A. P. Zhilyaev and T. G. Langdon. Progress in Materials Science.Vol. 6 (2008), pp.893-979.

[10] W. Guo, Q. Wang, B. Ye and H. Zhou. J. Alloys and Compounds.Vol. 558 (2013), pp.164-71.

[11] T. Tomida, N. Imai, K. Miyata, S. Fukushima, M. Yoshida, M. Wakita, M. Etou, T. Sasaki, Y. Haraguchi and Y. Okada. ISIJ international.Vol. 8 (2008), pp.1148-57.

DOI: 10.2355/isijinternational.48.1142

[12] Y. Chen, Q. Wang, H. Roven, M. Liu, M. Karlsen, Y. Yu and J. Hjelen. Scripta Mater. Vol. 4 (2008), pp.311-4.

[13] Q. Wang, Y. Chen, M. Liu, J. Lin and H. J. Roven. Mater. Sci. Eng. A.Vol. 9(2010), pp.2265-73.

[14] T. Peng, Q. Wang and J. Lin. Mater. Sci. Eng. A.Vol. 1 (2009), pp.23-30.

[15] J. Richert and M. Richert. Aluminium.Vol. 8 (1986), pp.604-7.

[16] S. W. Lee, J. W. Yeh and Y. S. Liao. Adv. Eng. Mater.Vol. 12 (2004), pp.936-43.

[17] Y. T. Zhu, T. C. Lowe and T. G. Langdon. Scripta Materialia.Vol. 8 (2004), pp.825-30.

[18] G. Lei, R.-S. Chen and E.-H. Han. Transactions of Nonferrous Metals Society of China.Vol. 4 (2011), pp.863-8.

[19] L.-p. Wang, C. Tian, W.-y. Jiang, Y.-c. Feng, G.-j. Cao and Z. Yan. Transactions of nonferrous metals society of China.Vol. 11 (2013), pp.3200-5.

[20] Y. Chen, Q. Wang, H. Roven, M. Karlsen, Y. Yu, M. Liu and J. Hjelen. J. Alloys and Compounds. Vol. 1-2 (2008), pp.192-200.

[21] Q. Wu, S. Zhu, L. Wang, Q. Liu, G. Yue, J. Wang and S. Guan. J. the mechanical behavior of biomedical materials.Vol. 8 (2012), pp.1-7.

[22] H. Lin, J. Wang, H. Wang and Q. Jiang. J. alloys and compounds.Vol. 1 (2007), pp.141-7.

[23] Y. Wang, G. Liu and Z. Fan. Acta Materialia.Vol. 3 (2006), pp.689-99.

[24] A. Azimi, S. Tutunchilar, G. Faraji and M. B. Givi. Mater. & Design.Vol. 42 (2012), pp.388-94.

[25] S. Morattab, K. Ranjbar and M. Reihanian. Mater. Sci. Eng. A.Vol. 22 (2011), pp.6912-8.
