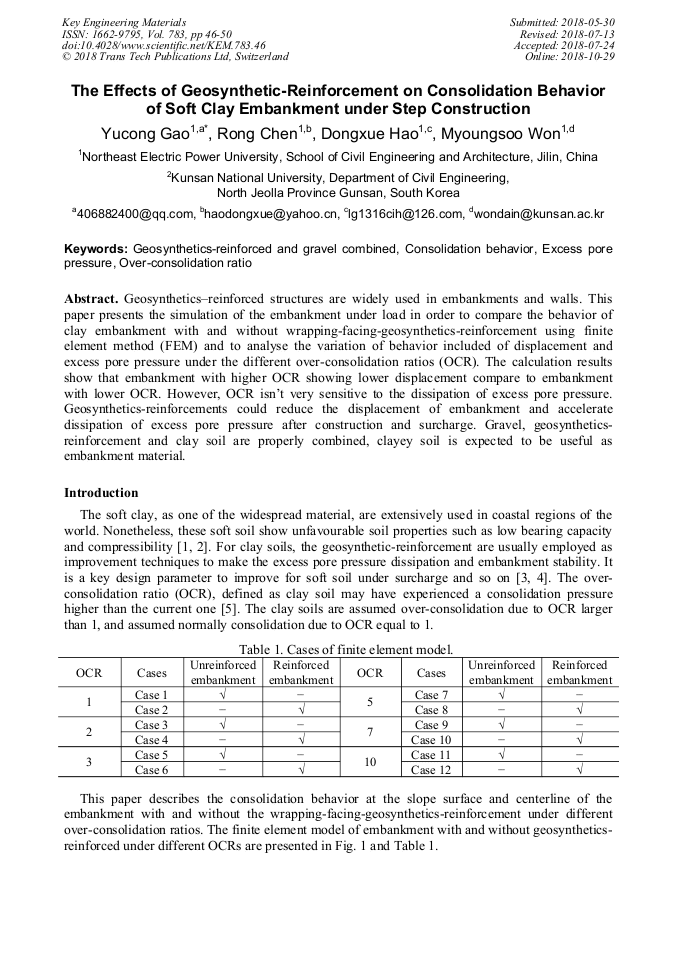

The Effects of Geosynthetic-Reinforcement on Consolidation Behavior of Soft Clay Embankment under Step Construction

Abstract:

Geosynthetics–reinforced structures are widely used in embankments and walls. This paper presents the simulation of the embankment under load in order to compare the behavior of clay embankment with and without wrapping-facing-geosynthetics-reinforcement using finite element method (FEM) and to analyse the variation of behavior included of displacement and excess pore pressure under the different over-consolidation ratios (OCR). The calculation results show that embankment with higher OCR showing lower displacement compare to embankment with lower OCR. However, OCR isn’t very sensitive to the dissipation of excess pore pressure. Geosynthetics-reinforcements could reduce the displacement of embankment and accelerate dissipation of excess pore pressure after construction and surcharge. Gravel, geosynthetics-reinforcement and clay soil are properly combined, clayey soil is expected to be useful as embankment material.

You might also be interested in these eBooks

International Conference on Material Science and Engineering III

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 783)

Pages:

46-50

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.783.46

Citation:

Cite this paper

Online since:

October 2018

Authors:

Yu Cong Gao*, Rong Chen, Dong Xue Hao, Myoung Soo Won

Keywords:

Consolidation Behavior, Excess Pore Pressure, Geosynthetics-Reinforced, Gravel Combined, Over-Consolidation Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Indraratna, M. E. Kan, Analytical solution and numerical simulation of vacuum consolidation by vertical drains beneath circular embankments, Comput. Geotech. 80 (2016) 83-96.

DOI: 10.1016/j.compgeo.2016.06.008

Google Scholar

[2] N. Muthing, C.Y. Zhao, R. Holter, T. Schanz, Settlement prediction for an embankment on soft clay, Comput. Geotech. 93 (2018) 87-103.

Google Scholar

[3] T. Yetimoglu, M. Inanir, O. Esat Inanir, A study on bearing capacity of randomly distributed fiber-reinforced sand fills overlying soft clay, Geotext. Geomembr. 23 (2006) 174-183.

DOI: 10.1016/j.geotexmem.2004.09.004

Google Scholar

[4] M.A. EI Sawwaf, Behavior of strip footing on geogrid-reinforced sand over a soft clay slope, Geotext. Geomembr. 25 (2007) 50-60.

DOI: 10.1016/j.geotexmem.2006.06.001

Google Scholar

[5] D.J. Henkel, The effect of overconsolidation on the behavior of clays during shear, Geotech. 6(4) (1956) 139-150.

Google Scholar

[6] H.Y. Lei, Y.G. Xu, X. Li, G. Zheng, G.X. Liu, Effects of ployacrylamide on the consolidation behavior of dredged clay, J. Mater. Civ. Eng. 30 (2018) 04018022.

DOI: 10.1061/(asce)mt.1943-5533.0002201

Google Scholar
