Study of Cutting Force and Surface Roughness on Drilling Stainless Steel 316L under Various Coolant Condition

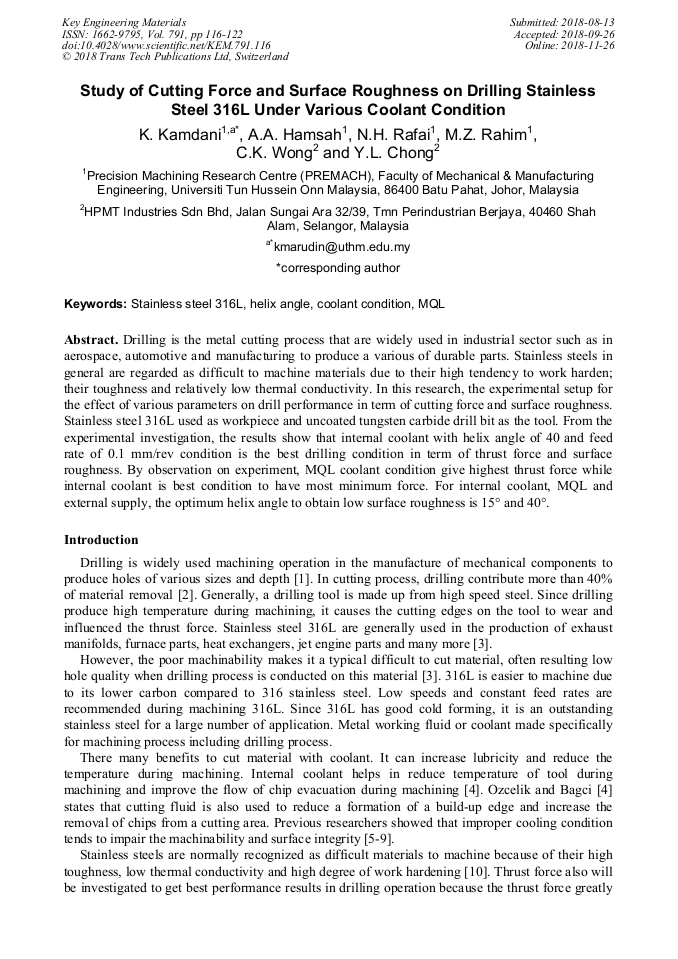

Article Preview

Abstract:

Drilling is the metal cutting process that are widely used in industrial sector such as in aerospace, automotive and manufacturing to produce a various of durable parts. Stainless steels in general are regarded as difficult to machine materials due to their high tendency to work harden; their toughness and relatively low thermal conductivity. In this research, the experimental setup for the effect of various parameters on drill performance in term of cutting force and surface roughness. Stainless steel 316L used as workpiece and uncoated tungsten carbide drill bit as the tool. From the experimental investigation, the results show that internal coolant with helix angle of 40 and feed rate of 0.1 mm/rev condition is the best drilling condition in term of thrust force and surface roughness. By observation on experiment, MQL coolant condition give highest thrust force while internal coolant is best condition to have most minimum force. For internal coolant, MQL and external supply, the optimum helix angle to obtain low surface roughness is 15° and 40°.

You might also be interested in these eBooks
Synergizing Sustainable Design and Engineering Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 791)

Pages:

116-122

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.791.116

Citation:

Cite this paper

Online since:

November 2018

Authors:

Kamaruddin Kamdani*, A.A. Hamsah, N.H. Rafai, M.Z. Rahim, C.K. Wong, Y.L. Chong

Keywords:

Coolant Condition, Helix Angle, MQL, Stainless Steel 316L

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M. Sato, T. Aoki, H. Tanaka, and S. Takeda, Variation of temperature at the bottom surface of a hole during drilling and its effect on tool wear, Int. J. Mach. Tools Manuf., 68 (2013) 40–47.

DOI: 10.1016/j.ijmachtools.2013.01.007

Google Scholar

[2] E. Brinksmeier, Prediction of tool fracture in drilling, CIRP Ann. - Manuf. Technol., 39-1 (1990) 97–100.

DOI: 10.1016/s0007-8506(07)61011-7

Google Scholar

[3] A. Z. Sultan, S. Sharif, and D. Kurniawan, Effect of machining parameters on tool wear and hole quality of AISI 316L stainless steel in conventional drilling, Procedia Manuf., 2 (2015) 202–207.

DOI: 10.1016/j.promfg.2015.07.035

Google Scholar

[4] B. Ozcelik and E. Bagci, Experimental and numerical studies on the determination of twist drill temperature in dry drilling: A new approach, Mater. Des., 27(10) (2006) 920–927.

DOI: 10.1016/j.matdes.2005.03.008

Google Scholar

[5] I. Rasidi, E. A. Rahim, A. A. Ibrahim, N. A. Maskam, and S. C. Ghani, The effect on the application of coolant and ultrasonic vibration assisted micro milling on machining performance, Appl. Mech. Mater., 660 (2014) 65–69.

DOI: 10.4028/www.scientific.net/amm.660.65

Google Scholar

[6] I. Rasidi, E. A. Rahim, M. I. Ghazali, M. H. Chai, and Z. O. Goh, Experimental analysis on ultrasonic assisted turning (UAT) based on innovated tool holder in the scope of dry & wet machining, Appl. Mech. Mater., 660 (2014) 104–108.

DOI: 10.4028/www.scientific.net/amm.660.104

Google Scholar

[7] E. A. Rahim and H. Sasahara, Effect of MQL liquids on surface integrity when high speed drilling titanium alloy, Key Eng. Mater., 443 (2010) 359–364.

DOI: 10.4028/www.scientific.net/kem.443.359

Google Scholar

[8] E. A. Rahim and H. Sasahara, Surface Integrity in MQL Drilling Nickel-Based Superalloy,, Key Eng. Mater., 447–448 (2010) 811–815.

DOI: 10.4028/www.scientific.net/kem.447-448.811

Google Scholar

[9] E. A. Rahim and H. Sasahara, Application of minimum quantity lubrication when drilling nickel-based superalloy at high cutting speed, Key Eng. Mater., 407–409 (2009) 612–615.

DOI: 10.4028/www.scientific.net/kem.407-408.612

Google Scholar

[10] J. Paro, H. Hänninen, and V. Kauppinen, Tool wear and machinability of HIPed P/M and conventional cast duplex stainless steels, Wear, 249(3–4) (2001) 279–284.

DOI: 10.1016/s0043-1648(01)00570-1

Google Scholar

[11] R. Heinemann, S. Hinduja, G. Barrow, and G. Petuelli, Effect of MQL on the tool life of small twist drills in deep-hole drilling, Int. J. Mach. Tools Manuf., 46(1) (2006) 1–6.

DOI: 10.1016/j.ijmachtools.2005.04.003

Google Scholar

[12] Y. Wei, Q. An, W. Ming, and M. Chen, Effect of drilling parameters and tool geometry on drilling performance in drilling carbon fiber-reinforced plastic/titanium alloy stacks, Adv. Mech. Eng., 8(9) (2016) 1–16.

DOI: 10.1177/1687814016670281

Google Scholar

[13] G. Boothroyd and W. A. Knight, Fundamentals of machinning and machine tools. (1989).

Google Scholar

[14] M. Pradeep Kumar and L. Shakeel Ahmed, Drilling of AISI 304 stainless steel under liquid nitrogen cooling: A comparison with flood cooling, Mater. Today Proc., 4(2) (2017) 1518–1524.

DOI: 10.1016/j.matpr.2017.01.174

Google Scholar

[15] S. Ankalagi, V. N. Gaitonde, and P. Petkar, Experimental studies on hole quality in drilling of SA182 steel, Mater. Today Proc., 4(10) (2017) 11201–11209.

DOI: 10.1016/j.matpr.2017.09.041

Google Scholar

[16] E. Bagci and B. Ozcelik, Effects of different cooling conditions on twist drill temperature, Int. J. Adv. Manuf. Technol., 34(9–10) (2007) 867–877.

DOI: 10.1007/s00170-006-0668-2

Google Scholar

[17] D. M. Haan, S. A. Batzer, W. W. Olson, and J. W. Sutherland, An experimental study of cutting fluid effects in drilling, J. Mater. Process. Technol., 71(2) (1997) 305–313.

DOI: 10.1016/s0924-0136(97)00089-7

Google Scholar

[18] J. Sun and Y. B. Guo, A comprehensive experimental study on surface integrity by end milling Ti-6Al-4V, J. Mater. Process. Technol., 209(8) (2009) 4036–4042.

DOI: 10.1016/j.jmatprotec.2008.09.022

Google Scholar

[19] S. Sharif and E. A. Rahim, Performance of coated- and uncoated-carbide tools when drilling titanium alloy-Ti-6Al4V, J. Mater. Process. Technol., 185(1–3) (2007) 72–76.

DOI: 10.1016/j.jmatprotec.2006.03.142

Google Scholar

[20] M. Balaji, K. Venkata Rao, N. Mohan Rao, and B. S. N. Murthy, Optimization of drilling parameters for drilling of TI-6Al-4V based on surface roughness, flank wear and drill vibration, Meas. J. Int. Meas. Confed., 114 (2018) 332–339.

DOI: 10.1016/j.measurement.2017.09.051

Google Scholar

[21] H. Ding, S. J. Chen, R. Ibrahim, and K. Cheng, Investigation of the size effect on burr formation in two-dimensional vibration-assisted micro end milling, Proc. Inst. Mech. Eng. Part B J. Eng. Manuf., 225(11) (2011) 2032–(2039).

DOI: 10.1177/0954405411400820

Google Scholar

[22] M. Hayajneh., Hole quality on deep drilling, Mater. Manuf. Process., 16(2) (2001) 147–164.

Google Scholar
