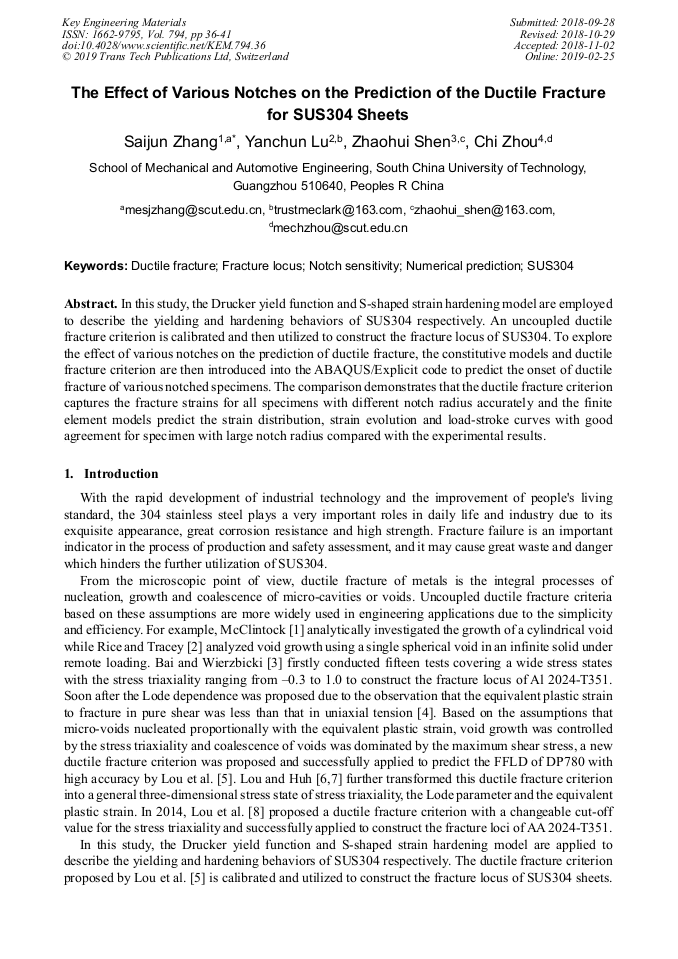

The Effect of Various Notches on the Prediction of the Ductile Fracture for SUS304 Sheets

Abstract:

In this study, the Drucker yield function and S-shaped strain hardening model are employed to describe the yielding and hardening behaviors of SUS304 respectively. An uncoupled ductile fracture criterion is calibrated and then utilized to construct the fracture locus of SUS304. To explore the effect of various notches on the prediction of ductile fracture, the constitutive models and ductile fracture criterion are then introduced into the ABAQUS/Explicit code to predict the onset of ductile fracture of various notched specimens. The comparison demonstrates that the ductile fracture criterion captures the fracture strains for all specimens with different notch radius accurately and the finite element models predict the strain distribution, strain evolution and load-stroke curves with good agreement for specimens with large notch radius compared with the experimental results.

• Periodical: Key Engineering Materials (Volume 794)
• Pages: 36-41
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.794.36
• Online since: February 2019
• Authors: Sai Jun Zhang*, Yan Chun Lu, Zhao Hui Shen, Chi Zhou
• Keywords: Ductile Fracture, Fracture Locus, Notch Sensitivity, Numerical Prediction, SUS304

References

[1] F.A. Mcclintock, A Criterion for Ductile Fracture by the Growth of Holes, J.Appl. Mech. 35 (1968) 363-371.

[2] J.R. Rice, D.M. Tracey on the ductile enlargement of voids in triaxial stress fields, J. Mech. Phys. Solids 17 (1969) 201-217.

DOI: 10.1016/0022-5096(69)90033-7

[3] Y. Bao, T. Wierzbicki, On fracture locus in the equivalent strain and stress triaxiality space, Int. J. Mech. Sci. 46 (2004) 81-98.

DOI: 10.1016/j.ijmecsci.2004.02.006

[4] L. Xue, Damage accumulation and fracture initiation in uncracked ductile solids subject to triaxial loading, Int. J. Solids Struct. 44 (2007) 5163-5181.

DOI: 10.1016/j.ijsolstr.2006.12.026

[5] Y.S. Lou, H. Huh, S. Lim, et al. New ductile fracture criterion for prediction of fracture forming limit diagrams of sheet metals, Int. J. Solids Struct. 49 (2012) 3605-3615.

DOI: 10.1016/j.ijsolstr.2012.02.016

[6] H. Huh, Y.S. Lou, Evaluation of ductile fracture criteria in a general three-dimensional stress state considering the stress triaxiality and the lode parameter, Acta Mech. Solida Sin. 26 (2013) 642-658.

DOI: 10.1016/s0894-9166(14)60008-2

[7] Y. Lou, H. Huh, Prediction of ductile fracture for advanced high strength steel with a new criterion: Experiments and simulation, J. Mater. Process. Tech. 213 (2013) 1284-1302.

DOI: 10.1016/j.jmatprotec.2013.03.001

[8] Y Lou, J.W. Yoon, H. Huh. Modeling of shear ductile fracture considering a changeable cut-off value for stress triaxiality, Int. J. Plast. 54 (2014) 56-80.

DOI: 10.1016/j.ijplas.2013.08.006

[9] J. Blaber, B. Adair, A. Antoniou. Ncorr: Open-Source 2D Digital Image Correlation Matlab Software, Exp. Mech. 55 (2015) 1105-1122.

DOI: 10.1007/s11340-015-0009-1

[10] Y.S. Lou, J.W. Yoon, Anisotropic yield function based on stress invariants for BCC and FCC metals and its extension to ductile fracture criterion, Int. J. Plast. 101 (2018) 125-155.

DOI: 10.1016/j.ijplas.2017.10.012

[11] S.J. Zhang, Q.X. Xia, W. Li, et al. Ductile damage measurement and necking analysis of metal sheets based on digital image correlation and direct current potential drop methods, Int. J. Damage Mech. 23 (2014) 1133-1149.

DOI: 10.1177/1056789514527978
