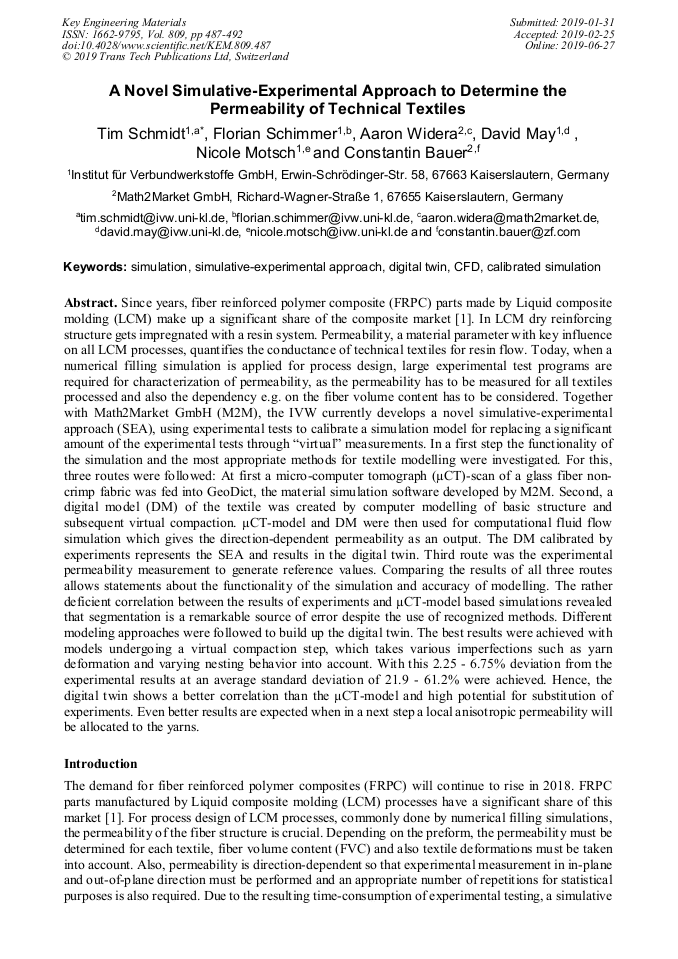

A Novel Simulative-Experimental Approach to Determine the Permeability of Technical Textiles

Abstract:

Since years, fiber reinforced polymer composite (FRPC) parts made by Liquid composite molding (LCM) make up a significant share of the composite market. In LCM dry reinforcing structure gets impregnated with a resin system. Permeability, a material parameter with key influence on all LCM processes, quantifies the conductance of technical textiles for resin flow. Today, when a numerical filling simulation is applied for process design, large experimental test programs are required for characterization of permeability, as the permeability has to be measured for all textiles processed and also the dependency e.g. on the fiber volume content has to be considered. Together with Math2Market GmbH (M2M), the IVW currently develops a novel simulative-experimental approach (SEA), using experimental tests to calibrate a simulation model for replacing a significant amount of the experimental tests through “virtual” measurements. In a first step the functionality of the simulation and the most appropriate methods for textile modelling were investigated. For this, three routes were followed: At first a micro-computer tomograph (μCT)-scan of a glass fiber non-crimp fabric was fed into GeoDict, the material simulation software developed by M2M. Second, a digital model (DM) of the textile was created by computer modelling of basic structure and subsequent virtual compaction. μCT-model and DM were then used for computational fluid flow simulation which gives the direction-dependent permeability as an output. The DM calibrated by experiments represents the SEA and results in the digital twin. Third route was the experimental permeability measurement to generate reference values. Comparing the results of all three routes allows statements about the functionality of the simulation and accuracy of modelling. The rather deficient correlation between the results of experiments and μCT-model based simulations revealed that segmentation is a remarkable source of error despite the use of recognized methods. Different modeling approaches were followed to build up the digital twin. The best results were achieved with models undergoing a virtual compaction step, which takes various imperfections such as yarn deformation and varying nesting behavior into account. With this 2.25 - 6.75% deviation from the experimental results at an average standard deviation of 21.9 - 61.2% were achieved. Hence, the digital twin shows a better correlation than the μCT-model and high potential for substitution of experiments. Even better results are expected when in a next step a local anisotropic permeability will be allocated to the yarns.

• Periodical: Key Engineering Materials (Volume 809)
• Pages: 487-492
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.809.487
• Online since: June 2019
• Authors: Tim Schmidt*, Florian Schimmer, Aaron Widera, David May, Nicole Motsch, Constantin Bauer
• Keywords: Calibrated Simulation, CFD, Digital Twin, Simulation, Simulative-Experimental Approach

References

[1] E. Witten, V. Mathes, M. Sauer, and M. Kühnel, Composites-Marktbericht 2018: Marktentwicklungen, Trends, Ausblicke und Herausforderungen,, Nov. (2018).

[2] H. Darcy, Les fontaines publiques de la ville de Dijon. Paris: Victor Dalmont, 1856.

[3] H. Grössing, N. Stadlmajer, E. Fauster, M. Fleischmann, and R. Schledjewski, Flow front advancement during composite processing: Predictions from numerical filling simulation tools in comparison with real-world experiments,, Polym. Compos. 37 (2016).

DOI: 10.1002/pc.23474

[4] D. Becker et al., An evaluation of the reproducibility of ultrasonic sensor-based out-of-plane permeability measurements: A Benchmarking Study,, Advanced Manufacturing: Polymer & Composites Science No. 2 (2016).

DOI: 10.1080/20550340.2016.1182783

[5] N. Blessing, Segmentierung von industriellen 3D-CT-Voxelmodellen durch dynamische Schwellwertberechnung,, Dissertation, Universität Stuttgart, Stuttgart, (2008).

[6] N. Otsu, A Threshold Selection Method from Gray-Level Histograms,, IEEE transactions on systems, man, and cybernetics Vol. SMC-9, No. 1, Jan. (1979).

DOI: 10.1109/tsmc.1979.4310076

[7] B. Verleye et al., Permeability of textile reinforcements: Simulation, influence of shear and validation,, Comp. Sc. Tech. 68 (2008).

[8] M. Nordlund and T. S. Lundstrom, Numerical Study of the Local Permeability of Non crimp Fabrics,, J. Comp. Mat. 39 (2015) 10.

[9] Z.-R. Chen, L. Ye, and M. Lu, Permeability Predictions for Woven Fabric Preforms,, J. Comp. Mat. 13 (2009).

[10] S. D. Green, A. C. Long, B.S.F. El Said, and S. R. Hallett, Numerical modelling of 3D woven preform deformations,, Comp. Struc. 108 (2014).

DOI: 10.1016/j.compstruct.2013.10.015

[11] X. Zeng, A. Endruweit, L. P. Brown, and A. C. Long, Numerical prediction of in-plane permeability for multilayer woven fabrics with manufacture-induced deformation,, Comp. Part A 77 (2015).

DOI: 10.1016/j.compositesa.2015.03.027

[12] E. E. Swery, P. Kelly, W. A. Walbran, and S. Bickerton, Numerical permeability prediction of woven textiles at different compaction levels,, TEXCOMP 11 Conference, Sep. (2013).

[13] B. Verleye, S. V. Lomov, A. C. Long, I. Verpoest, and D. Roose, Permeability prediction for the meso–macro coupling in the simulation of the impregnation stage of Resin Transfer Moulding,, Comp. Part A 41 (2010).

DOI: 10.1016/j.compositesa.2009.06.011

[14] A. Endruweit, X. Zeng, M. Matveev, and A. C. Long, Effect of yarn cross-sectional shape on resin flow through inter-yarn gaps in textile reinforcements,, Comp. Part A 108 (2018).

DOI: 10.1016/j.compositesa.2017.10.020

[15] E. Glatt, M. Kabel, B. Planas, C. Bauer, and T. Cvjetkovic, ElastoDict: Release 2017,, [Online] Available: https://www.geodict.com/Support/UserGuide.php.

[16] S. Linden, B. Planas, A. Wiegmann, and L. Cheng, FlowDict User Guide: Release 2018,, 2018. [Online] Available: https://www.geodict.com/Support/UserGuide.php.

[17] S. Linden, The LIR Space Partitioning System applied to the Stokes Equations,, Dissertation, Technische Universität Kaiserslautern, Kaiserslautern, (2014).

[18] G. Rieber, Einfluss von textilen Parametern auf die Permeabilität von Multifilamentgeweben für Faserverbundkunststoffe,, Zugl.: Kaiserslautern, Techn. Univ., Diss., 2011, Kaiserslautern.

[19] H. Grössing, D. Becker, S. Kaufmann, R. Schledjewski, and P. Mitschang, An evaluation of the reproducibility of capacitive sensor based in-plane permeability measurements: A Benchmarking Study,, Express Polymer Letters No. 9/(2015).

DOI: 10.3144/expresspolymlett.2015.14

[20] A. Endruweit and A. C. Long, Analysis of Compressibility and Permeability of Selected 3D Woven Reinforcements,, J. Comp. Mat. 44 (2010).

DOI: 10.1177/0021998310369586
