Investigation on the Influence of Pressure Terms in a Volume-Averaged Energy Balance in the Modelling of Liquid Composite Moulding Processes

Abstract:

The growing use of composite materials has generated interest in improving and optimising composite manufacturing processes such as Liquid Composite Moulding (LCM). In LCM, dry preforms are placed in a mould and impregnated with the matrix material. The efficiency of filling the moulds can be improved by using Computational Fluid Dynamics (CFD) filling simulations during the design of the mould. As part of an on-going effort to develop a CFD tool for the simulation of LCM processes, a volume averaged energy balance equation has been derived and implemented in a custom OpenFOAM solver. The energy balance is implemented in a custom OpenFOAM solver with and without the pressure terms for comparison with results from RTM experiments. It is found that the pressure terms do not significantly influence the results for LCM processes.

You might also be interested in these eBooks

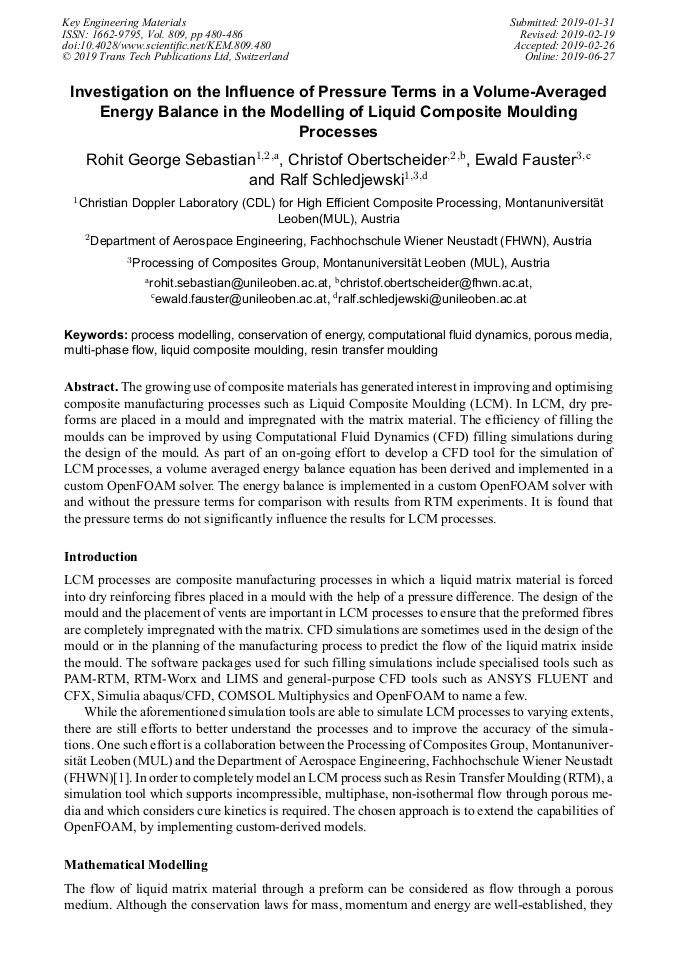

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 809)

Pages:

480-486

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.809.480

Citation:

Cite this paper

Online since:

June 2019

Authors:

Rohit George Sebastian*, Christof Obertscheider, Ewald Fauster, Ralf Schledjewski

Keywords:

Computational Fluid Dynamics, Conservation of Energy, Liquid Composite Moulding, Multi-Phase Flow, Porous Media, Process Modelling, Resin Transfer Moulding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R. G. Sebastian, Extension of OpenFOAM solvers for improved flow front prediction during Liquid Composite Moulding, Master Thesis, Fachhochschule Wiener Neustadt, (2018).

Google Scholar

[2] P. Forchheimer Wasserbewegung durch Boden, 45th Edition, Zeitschrift des Vereins deutscher Ingenieure, Düsseldorf, (1901).

Google Scholar

[3] H. Darcy Les fontaines publiques de la ville de Dijon, Victor Dalmont, Paris, 1856.

Google Scholar

[4] C. L. Tucker and R. B. Dessenberger Governing Equations for Flow and heat transfer in Stationary Fiber Beds In: Flow and Rheology in Polymer Composites Manufacturing, First Edition, Ed. by S.G. Advani, Elsevier Science, 1994, ISBN: 9780444893475.

Google Scholar

[5] D. A. Nield and A. Bejan, Convection in Porous Media, Fourth Edition, Springer, 2013, ISBN: 9781461455400.

DOI: 10.1007/978-1-4614-5541-7

Google Scholar
