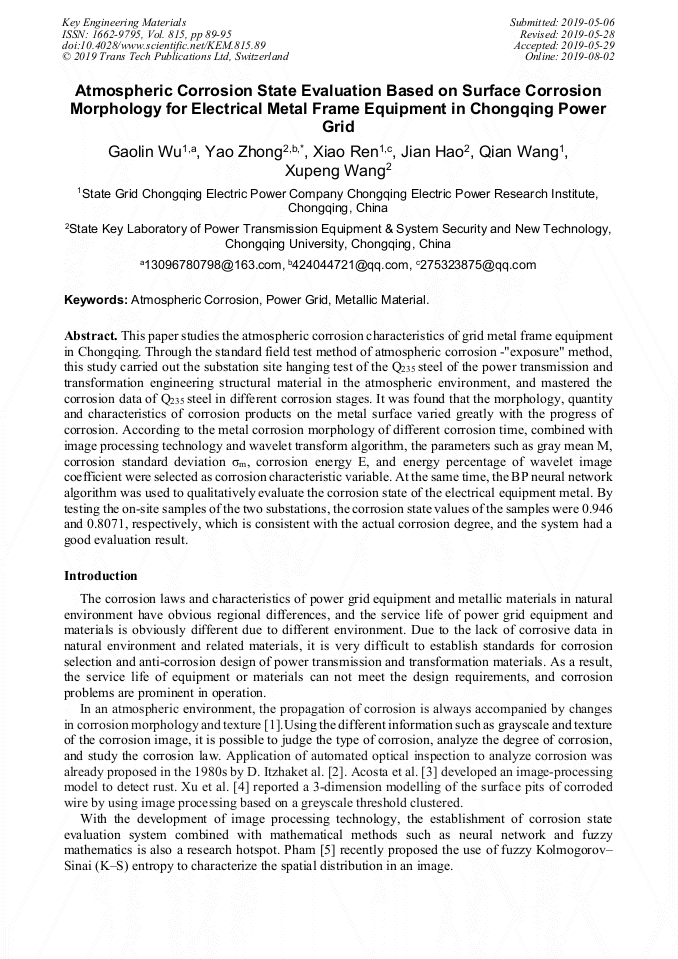

Atmospheric Corrosion State Evaluation Based on Surface Corrosion Morphology for Electrical Metal Frame Equipment in Chongqing Power Grid

Abstract:

This paper studies the atmospheric corrosion characteristics of grid metal frame equipment in Chongqing. Through the standard field test method of atmospheric corrosion -"exposure" method, this study carried out the substation site hanging test of the Q₂₃₅ steel of the power transmission and transformation engineering structural material in the atmospheric environment, and mastered the corrosion data of Q₂₃₅ steel in different corrosion stages. It was found that the morphology, quantity and characteristics of corrosion products on the metal surface varied greatly with the progress of corrosion. According to the metal corrosion morphology of different corrosion time, combined with image processing technology and wavelet transform algorithm, the parameters such as gray mean M, corrosion standard deviation σ_m, corrosion energy E, and energy percentage of wavelet image coefficient were selected as corrosion characteristic variable. At the same time, the BP neural network algorithm was used to qualitatively evaluate the corrosion state of the electrical equipment metal. By testing the on-site samples of the two substations, the corrosion state values of the samples were 0.946 and 0.8071, respectively, which is consistent with the actual corrosion degree, and the system had a good evaluation result.

• Periodical: Key Engineering Materials (Volume 815)
• Pages: 89-95
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.815.89
• Online since: August 2019
• Authors: Gao Lin Wu, Yao Zhong*, Xiao Ren, Jian Hao, Qian Wang, Xu Peng Wang
• Keywords: Atmospheric Corrosion, Metallic Material, Power Grid

References

[1] F.F. Feliciano and F.R. Leta, F.B. Mainier, Texture Digital analysis for corrosion monitoring, J. Sci. Corrosion Science. 2(2015) 138-147.

DOI: 10.1016/j.corsci.2015.01.017

[2] D.Itzhak, I. Dinstein and T. Zilberberg. Pitting corrosion evaluation by computer image processing, J. Sci. Corrosion Science, 21(1981) 17-22.

DOI: 10.1016/0010-938x(81)90059-7

[3] M.R. Gamarra Acosta, J.C. Vélez Díaz and N. Schettini Castro, An innovative image-processing model for rust detection using Perlin Noise to simulate oxide textures, J. Sci. Corrosion Science. 88(2014)141-151.

DOI: 10.1016/j.corsci.2014.07.027

[4] Y. Xu, H. Li, S. Li, X. Guan, 3-D modelling and statistical properties of surface pits of corroded wire based on image processing technique, J. Sci. Corrosion Science. 111(2016)275-287.

DOI: 10.1016/j.corsci.2016.05.015

[5] Feliciano, Flávio Felix, F. R. Leta and F. B. Mainier. Texture digital analysis for corrosion monitoring. J. Sci. Corrosion Science. 93(2015)138-147.

DOI: 10.1016/j.corsci.2015.01.017

[6] Liu Chenglong, MATLAB Image Processing. Tsinghua University Press, Bei Jing, 2017, pp.213-216.
