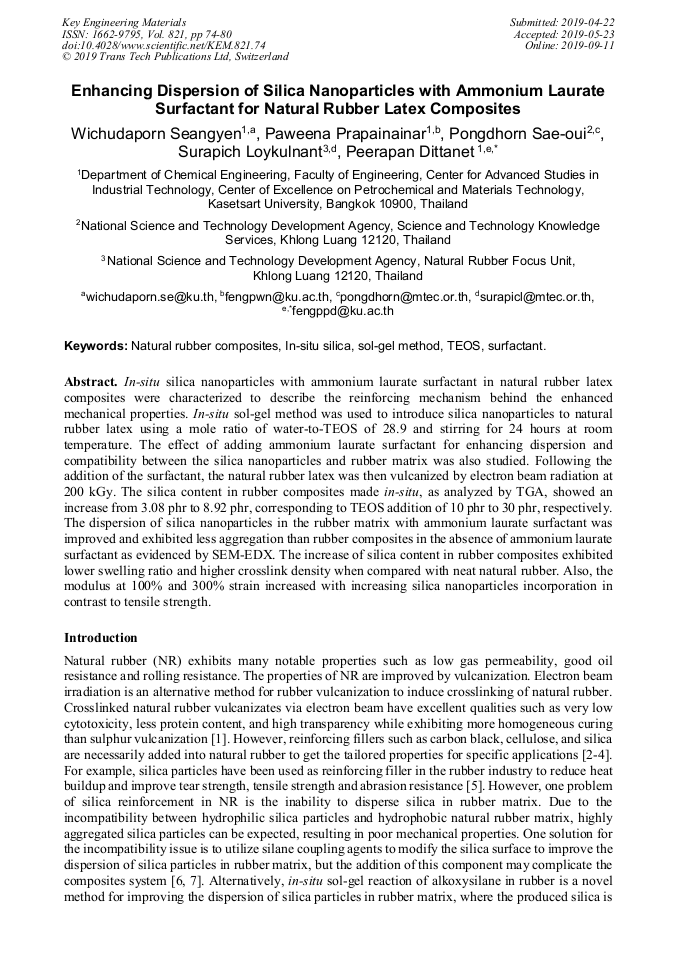

Enhancing Dispersion of Silica Nanoparticles with Ammonium Laurate Surfactant for Natural Rubber Latex Composites

Abstract:

In-situ silica nanoparticles with ammonium laurate surfactant in natural rubber latex composites were characterized to describe the reinforcement mechanism in enhanced mechanical properties. In-situ sol-gel method was introduced to generate silica nanoparticles in natural rubber latex using a mole ratio of water-to-TEOS of 28.9 stirring at room temperature for 24 hours. The addition and effect of adding ammonium laurate surfactant for enhancing dispersion and compatibility between silica nanoparticles and rubber matrix was also studied. The natural rubber latex was then vulcanized by electron beam radiation at 200 kGy. The silica content in rubber composites made in-situ, was analyzed by TGA, showed an increase from 3.08 phr to 8.92 phr, corresponding to addition of TEOS amounts of 10 phr to 30 phr, respectively. The dispersion of silica nanoparticles in rubber matrix with ammonium laurate surfactant was improved and exhibited less aggregation than rubber composites absent of ammonium laurate surfactant as evidenced by SEM-EDX. The increase of silica content in rubber composites exhibited lower swelling ratio and higher crosslink density when compared with neat natural rubber. Also, the modulus at 100% and 300% strain also increased with increasing silica nanoparticles incorporation in contrast to tensile strength.

• Periodical: Key Engineering Materials (Volume 821)
• Pages: 74-80
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.821.74
• Online since: September 2019
• Authors: Wichudaporn Seangyen*, Paweena Prapainainar, Pongdhorn Sae-Oui, Surapich Loykulnant, Peerapan Dittanet
• Keywords: In Situ Silica, Natural Rubber Composites, Sol-Gel Method, Surfactant, TEOS

References

[1] K. Makuuchi, An Introduction to Radiation Vulcanization of Natural Rubber Latex, T. R. I. Global, Bangkok, (2003).

[2] K. Pal, R. Rajasekar, D.J. Kang, Z.X. Zhang, S.K. Pal, C.K. Das, J.K. Kim, Effect of fillers on natural rubber/high styrene rubber blends with nano silica: Morphology and wear, Mater. Des. 31 (2010) 677-686.

DOI: 10.1016/j.matdes.2009.08.014

[3] W. Tappanawatch, P. Prapainainar, P. Sae-Oui, S. Loykulnant, P. Dittanet, Effect of Gamma Radiation on Properties of Cellulose Nanocrystal/Natural Rubber Nanocomposites, Key Eng. Mater. 772 (2018) 13-17.

DOI: 10.4028/www.scientific.net/kem.772.13

[4] W. Seangyen, P. Prapainainar, P. Sae-Oui, S. Loykulnant, P. Dittanet, Natural Rubber Reinforced with Silica Nanoparticles Extracted from Jasmine and Riceberry Rice Husk Ashes, Mater. Sci. Forum 936 (2018) 31-36.

DOI: 10.4028/www.scientific.net/msf.936.31

[5] A. Tohsan, P. Phinyocheep, S. Kittipoom, W. Pattanasiriwisawa, Y. Ikeda, Novel biphasic structured composite prepared by in situ silica filling in natural rubber latex, Polym. Adv. Technol. 23 (2012) 1335-1342.

DOI: 10.1002/pat.2051

[6] V. Tangpasuthadol, A. Intasiri, D. Nuntivanich, N. Niyompanich, S. Kiatkamjornwong, Sillica-Reinforced natural rubber prepared by the sol-gel process of ethoxysilanes in rubber latex, J. Appl. Polym. Sci. 109 (2008) 424-433.

DOI: 10.1002/app.28120

[7] S. Poompradub, M. Thirakulrati, P. Prasassarakich, In situ generated silica in natural rubber latex via sol-gel technique and properties of the silica rubber composites, Mater. Chem. Phys. 144 (2014), 122-131.

DOI: 10.1016/j.matchemphys.2013.12.030

[8] Information on https://www.iaea.org.

[9] H.M. Nilsson, B. Meany, J. Ticey, C.F. Ssun, Y.H. Wang, J. Cuming, Ammonium laurate surfactant for cleaner deposition of carbon nanotube, Langmuir. 31 (2015) 6948-6955.

DOI: 10.1021/acs.langmuir.5b01175

[10] T. Khamplod, S. Loykulnant, C. Kongkaew, P. Sureeyatanapas, P. Prapainainar, Electron beam radiation grafting of styrene on natural rubber using Taguchi's design, Polymer 79 (2015) 135-145.

DOI: 10.1016/j.polymer.2015.10.016

[11] B.P. Kapgate, C. Das, D. Basu, A. Das, G. Heinrich, Rubber composites based on silane-treated stober silica and nitrile rubber: Interaction of treated silica with rubber matrix, J. Elastomers Plast. 24(3) (2013) 248-261.

DOI: 10.1177/0095244313507807

[12] Y. Cai, H. Ke, J. Dong, Q. Wei, J. Lin, Y. Zhao, L. Song, Y. Hu, F. Huang, W. Gao, H. Fong, Effects of nano-SiO2 on morphology, thermal energy storage, thermal stability, and combustion properties of electrospun lauric acid/PET ultrafine composite fibers as form-stable phase change materials, Appl. Energy 88 (2011) 2106-2112.

DOI: 10.1016/j.apenergy.2010.12.071

[13] I. Surya, H. Ismail, A.R. Azura, Alkanolamide as an accelerator, filler-dispersant and a plasticizer in silica-filled natural rubber compound, Polym. Test. 32 (2013) 11313-1321.

DOI: 10.1016/j.polymertesting.2013.07.015

[14] B. Chaichua, P. Prasassarakich, S. Poompradub, In situ silica reinforcement of natural rubber by sol-gel process via rubber solution, J. Sol-Gel Sci. Technol. 52 (2009) 219-227.

DOI: 10.1007/s10971-009-2019-x
