Growth Rate of Small Surface-Cracks in Age Hardening Cu-Ni-Si Alloy under Cyclic Stressing

Masahiro Goto; Takaei Yamamoto; Junichi Kitamura; S.Z. Han; R. Takanami; Terutoshi Yakushiji; J.H. Lee

doi:10.4028/www.scientific.net/KEM.827.216

Paper Titles

Influence of Magnetite Dispersion on Tensile Properties
p.190

Fracture Toughness Evaluation of a Cracked Au Thin Film by Applying a Finite Element Analysis and Bulge Test
p.196

Utilization of Williams’ Power Series for Estimation of Crack Behavior under Mixed-Mode Loading
p.203

A Combined Numerical and Experimental Approach to Evaluate the Hardness of AA Aluminum 6063 T6 with A Ni-P Coating
p.209

Growth Rate of Small Surface-Cracks in Age Hardening Cu-Ni-Si Alloy under Cyclic Stressing
p.216

Prediction of the Ceramic Foam Structure Failure Using a Detailed Finite Element Model
p.222

A Comparison of the Fracture Behaviour of Various Concrete Grades under Mixed Mode I/II Loading
p.228

Numerical Studies of the Correlation between Inclusion Shape and Effective Elastic Properties of the Particle Reinforced Composites
p.234

On the Strength Weakening Effect of Stiffening Ribs in the Design of Machine Components
p.240

HomeKey Engineering MaterialsKey Engineering Materials Vol. 827Growth Rate of Small Surface-Cracks in Age...

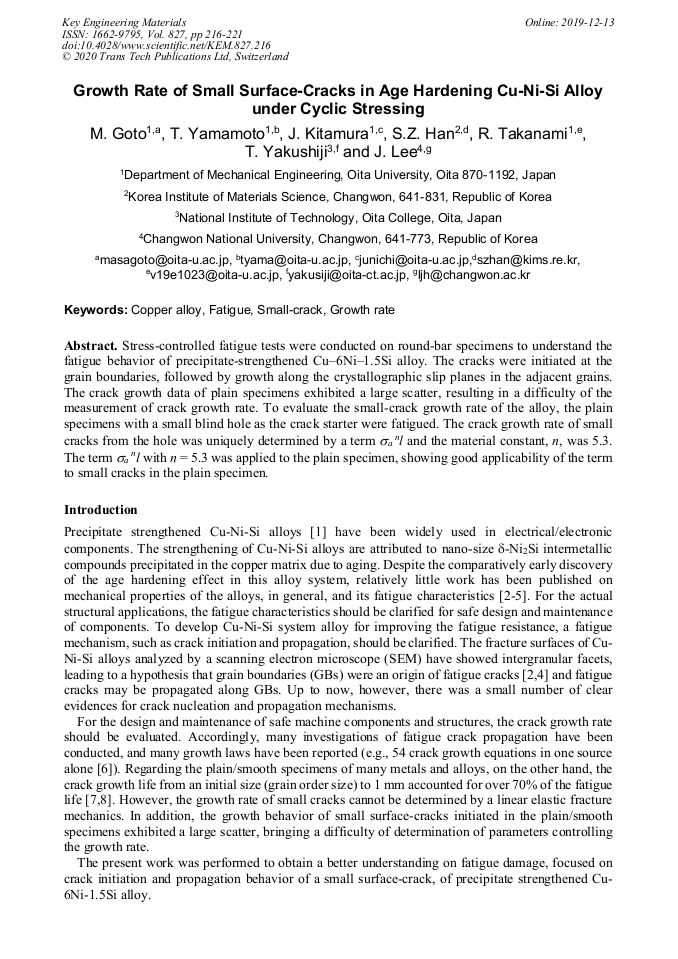

Growth Rate of Small Surface-Cracks in Age Hardening Cu-Ni-Si Alloy under Cyclic Stressing

Abstract:

Stress-controlled fatigue tests were conducted on round-bar specimens to understand the fatigue behavior of precipitate-strengthened Cu–6Ni–1.5Si alloy. The cracks were initiated at the grain boundaries, followed by growth along the crystallographic slip planes in the adjacent grains. The crack growth data of plain specimens exhibited a large scatter, resulting in a difficulty of the measurement of crack growth rate. To evaluate the small-crack growth rate of the alloy, the plain specimens with a small blind hole as the crack starter were fatigued. The crack growth rate of small cracks from the hole was uniquely determined by a term σ_a ⁿl and the material constant, n, was 5.3. The term σ_a ⁿl with n = 5.3 was applied to the plain specimen, showing good applicability of the term to small cracks in the plain specimen.
