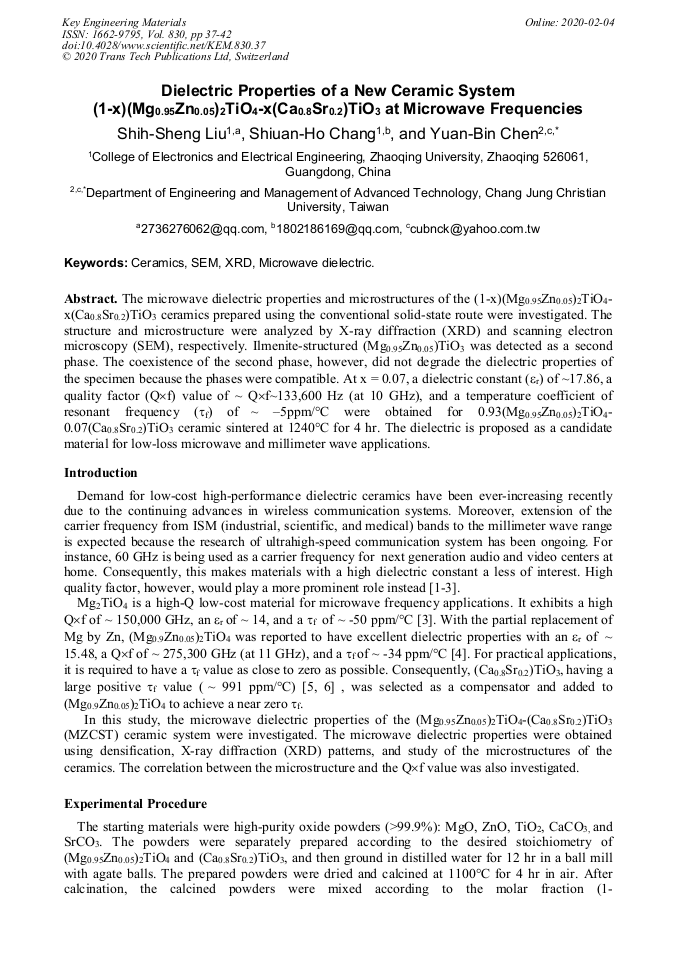

Dielectric Properties of a New Ceramic System (1-x)(Mg_0.95Zn_0.05)₂TiO₄-x(Ca_0.8Sr_0.2)TiO₃ at Microwave Frequencies

Abstract:

The microwave dielectric properties and microstructures of the (1-x)(Mg_0.95Zn_0.05)₂TiO₄-x (Ca_0.8Sr_0.2)TiO₃ ceramics prepared using the conventional solid-state route were investigated. The structure and microstructure were analyzed by X-ray diffraction (XRD) and scanning electron microscopy (SEM), respectively. Ilmenite-structured (Mg_0.95Zn_0.05)TiO₃ was detected as a second phase. The coexistence of the second phase, however, did not degrade the dielectric properties of the specimen because the phases were compatible. At x = 0.07, a dielectric constant (ε_r) of ~17.86, a quality factor (Q×f) value of ~ Q×f~133,600 Hz (at 10 GHz), and a temperature coefficient of resonant frequency (τ_f) of ~ –5ppm/°Cwere obtained for 0.93(Mg_0.95Zn_0.05)₂TiO₄-0.07(Ca_0.8Sr_0.2)TiO₃ ceramic sintered at 1240°C for 4 hr. The dielectric is proposed as a candidate material for low-loss microwave and millimeter wave applications.

• Periodical: Key Engineering Materials (Volume 830)
• Pages: 37-42
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.830.37
• Online since: February 2020
• Authors: Shih Sheng Liu, Shiuan Ho Chang, Yuan Bin Chen*
• Keywords: Ceramics, Microwave Dielectric, SEM, XRD

References

[1] J.J. Bian, Y. Fei Dong, G.X. Song, J. Am. Ceram. Soc., 91, 1182-1187(2008).

[2] C.L. Huang, J.J. Wang, Y.P. Chang, J. Am. Ceram. Soc., 90, 858-862 (2007).

[3] A. Belous, O. Ovchar, D. Durilin, M.M. Krzmanc, M.Valant, D. Suvorov, J. Am. Ceram. Soc., 89, 3441-3445 (2006).

DOI: 10.1111/j.1551-2916.2006.01271.x

[4] C.L. Huang, S.S. Liu, J. Am. Ceram. Soc., 91, 3428-3430 (2008).

[5] P.L. Wise, I.M. Reaney, W.E. Lee, J. Eur. Ceram. Soc., 21, 1723-1726 (2001).

[6] K. Yan, M. Fujii, T. Karaki, M. Adachi, Jpn. J. Appl. Phys., 46 7105-7107 (2007).

[7] K. Wakino, Ferroelectrics., 91, 69-86 (1989).

[8] R.C. Kell, A.C. Greenham, G.C.E. Olds, J. Am. Ceram. Soc., 56 352-354 (1973).

[9] A. Feteira, D.C. Sinclair, M.T. Lanagan, J. Mater. Res., 20, 2391-2399 (2005).

[10] C.L. Huang, S.S. Liu, Jpn. J. Appl. Phys., 46, 283-285(2007).

[11] Y. Xu, R.L. Fu, S. Agathopoulos, X. Wang, Y. Yang, J.D. Cai, Ceram. Int., 42 (13), 14573-14580 (2016).

[12] H.F. Zhou, K.G. Wang, W.D. Sun, X.L. Chen, H. Ruan, Mater. Lett. 217, 20-22 (2018).

[13] H.H. Xi, D. Zhou, H.D. Xie, B. He, Q.P. Wang, Raman spectra, J. Am. Ceram. Soc., 97 (2), 587-593 (2014).

[14] Z.X. Wang, C.L. Yuan, B.H. Zhu, Q. Feng, F. Liu, J.W. Xu, C.R. Zhou, G.H. Chen, Ceram. Int., 44, 6601-6606 (2018).
