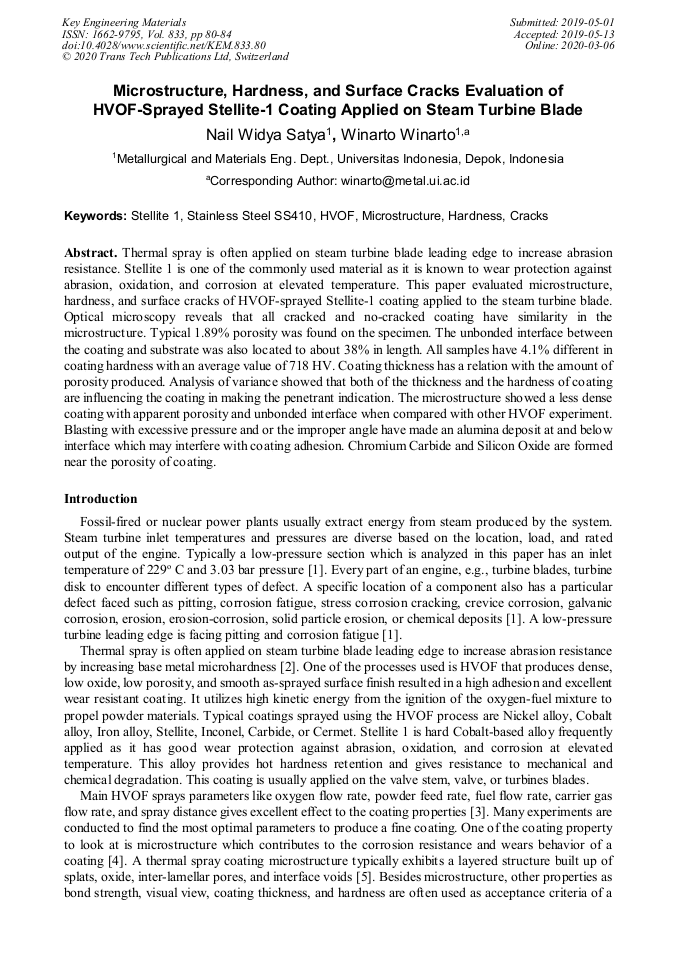

Microstructure, Hardness, and Surface Cracks Evaluation of HVOF-Sprayed Stellite-1 Coating Applied on Steam Turbine Blade

Abstract:

Thermal spray is often applied on steam turbine blade leading edge to increase abrasion resistance. Stellite 1 is one of the commonly used material as it is known to wear protection against abrasion, oxidation, and corrosion at elevated temperature. This paper evaluated microstructure, hardness, and surface cracks of HVOF-sprayed Stellite-1 coating applied to the steam turbine blade. Optical microscopy reveals that all cracked and no-cracked coating have similarity in the microstructure. Typical 1.89% porosity was found on the specimen. The unbonded interface between the coating and substrate was also located to about 38% in length. All samples have 4.1% different in coating hardness with an average value of 718 HV. Coating thickness has a relation with the amount of porosity produced. Analysis of variance showed that both of the thickness and the hardness of coating are influencing the coating in making the penetrant indication. The microstructure showed a less dense coating with apparent porosity and unbonded interface when compared with other HVOF experiment. Blasting with excessive pressure and or the improper angle have made an alumina deposit at and below interface which may interfere with coating adhesion. Chromium Carbide and Silicon Oxide are formed near the porosity of coating.

• Periodical: Key Engineering Materials (Volume 833)
• Pages: 80-84
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.833.80
• Online since: March 2020
• Authors: Nail Widya Satya, Winarto Winarto*
• Keywords: Cracks, Hardness, HVOF, Microstructure, Stainless Steel SS410, Stellite 1

References

[1] Zhou, S., & Turnbull, A. (2002). Steam Turbine Operating Conditions, Chemistry of Condensates, and Environment-Assisted Cracking – A Critical Review. Teddington: National Physical Laboratory, NPL Report MATC (A) 95.

[2] Ariati, M., Putra, W. N., & Rachmansyah, R. P. (2018). Optimizing the Substrate Preheating Process of High-Velocity Oxygen Fuel Cobalt-Based Alloy Coating on Alloyed and Carbon Steels Mechanical Properties. Materials Science Forum Vol. 929, pp.142-149.

DOI: 10.4028/www.scientific.net/msf.929.142

[3] Murugan, K., Ragupathy, A., Balasubramanian, V., & Sridhar, K. (2014). Optimizing HVOF Spray Parameters to attain minimum porosity and maximum hardness in WC-10Co-4Cr Coatings. Surf Coat Technol Vol. 247, pp.90-102.

DOI: 10.1016/j.surfcoat.2014.03.022

[4] Sassatelli, P., Bolelli, G., Gualtieri, M. L., Heinonen, E., Honkanen, M., Lusvarghi, L., Vippola, M. (2018). Properties of HVOF-sprayed Stellite-6 coatings. Surface & Coatings Technology Vol. 338, p.45–62.

DOI: 10.1016/j.surfcoat.2018.01.078

[5] Winarto, W., Priadi, D., Sofyan, N., & Wicaksono, A. (2017). Wear Resistance and Surface Hardness of Carbon Nanotube Reinforced Alumina Matrix Nanocomposite by Cold Sprayed Process. Procedia Engineering Vol. 170, p.108 – 112.

DOI: 10.1016/j.proeng.2017.03.020

[6] Vignesh, S., Shanmugam, K., Balasubramanian, V., & Sridhar, K. (2017). Identifying the optimal HVOF spray parameters to attain minimum porosity and maximum hardness in iron-based amorphous metallic coatings. Defense Technology Vol. 13, Issue 2, pp.101-110.

DOI: 10.1016/j.dt.2017.03.001
