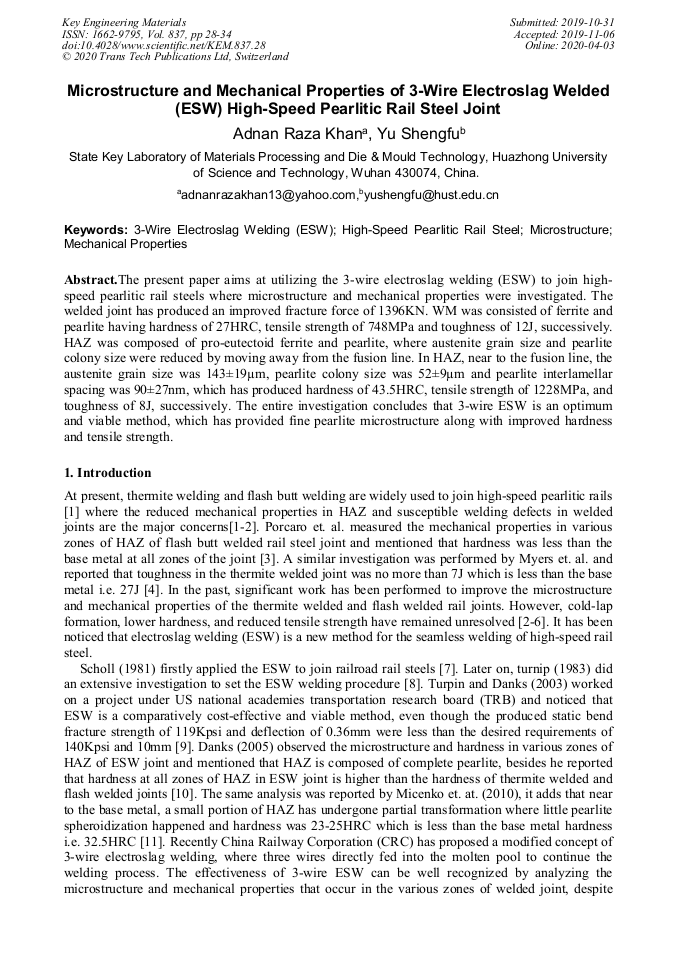

Microstructure and Mechanical Properties of 3-Wire Electroslag Welded (ESW) High-Speed Pearlitic Rail Steel Joint

Abstract:

The present paper aims at utilizing the 3-wire electroslag welding (ESW) to join high-speed pearlitic rail steels where microstructure and mechanical properties were investigated. The welded joint has produced an improved fracture force of 1396KN. WM was consisted of ferrite and pearlite having hardness of 27HRC, tensile strength of 748MPa and toughness of 12J, successively. HAZ was composed of pro-eutectoid ferrite and pearlite, where austenite grain size and pearlite colony size were reduced by moving away from the fusion line. In HAZ, near to the fusion line, the austenite grain size was 143±19μm, pearlite colony size was 52±9μm and pearlite interlamellar spacing was 90±27nm, which has produced hardness of 43.5HRC, tensile strength of 1228MPa, and toughness of 8J, successively. The entire investigation concludes that 3-wire ESW is an optimum and viable method, which has provided fine pearlite microstructure along with improved hardness and tensile strength.

• Periodical: Key Engineering Materials (Volume 837)
• Pages: 28-34
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.837.28
• Online since: April 2020
• Authors: Adnan Raza Khan*, Sheng Fu Yu
• Keywords: 3-Wire Electroslag Welding (ESW), High-Speed Pearlitic Rail Steel, Mechanical Properties, Microstructure

References

[1] Goldschmidt, 2009. D4.6.6-Weld performance in track test-Supervision of weld properties in terms of rail profile, Rail straightness and neutral temperature. Preliminary report for innotrack project no. TIP-CT-2006-0314150. http://www.innotrack.net/IMG/pdf/d466-f2-weld-performance_track-test.pdf.

[2] Chen, Y., Weld defect formation in rail thermite welds. Proceedings of the institution of the mechanical engineers, Part F: Journal of rapid and rapid transit 220, pp.373-384. http://dx.doi.org/10.1243/0954409JRRT44.(2006).

DOI: 10.1243/0954409jrrt44

[3] Porcaro, R.P., Faria, G.L., Godefroid, L.B., Apolonio, G.B., Candido, L.C., Pinto, L.S. Microstructure and mechanical properties of a flash butt welded pearlitic rail. Journal of materials processing technology 270, pp.20-27. http://dx.doi.org/10.1016/j.jmatprotec. 02.013. (2019).

DOI: 10.1016/j.jmatprotec.2019.02.013

[4] Myers, J., Geiger, G. H., Poirier, D. R., 1982. Structure and properties of thermite weld in rails. Journalof Welding research 61,pp.258-268. http://files.aws.org/wj/supplement/WJ_1982_08_s258.pdf.

[5] Tawfik, D., Mutton, P.J., Chiu, W.K., 2008. Experimental and numerical investigations: Alleviating tensile residual stresses in flash butt welds by localized rapid post weld heat treatment. Journal of materials processing technology 196, pp.279-291. https://doi.org/10.1016/j.jmatprotec.05.055.(2007).

DOI: 10.1016/j.jmatprotec.2007.05.055

[6] Muster, H., Schmedders, H., Wick, K., Pradier, H., 1996. Rail rolling contact fatigue, the performance of naturally hard and head-hardened rails in track. Wear 191, pp.54-64. https://doi.org/10.1016/0043-1648(95)06702-7.

DOI: 10.1016/0043-1648(95)06702-7

[7] Scholl, M.R., Alloy design for Electroslag welded railroad rail. OHSU Digital Collections. https://doi.org/10.6083/M4959FHV.(1981).

[8] Turpin, R.B., Adaptation of the electroslag welding process to joining of railroad rail. OSHU Digital Collections. https://doi.org/10.6083/M45M63M5.(1983).

[9] Turpin, B., Danks, D., Electroslag field welding of railroad rail. Final report for High-Speed rail IDEA project 37, Transportation research board, Washington DC. http://apps.trb.org/cmsfeed/TRBNetprojectDisplay.asp?projectID=2299.(2003).

[10] Danks, D.,Recent advances in field electroslag rail welding, report 49. https://www.arema.org/files/library/2005_Conference_Proceedings/00049.pdf.(2005).

[11] Micenko, P., Muruganant, Li, H., Xu, X. Double dip hardness profiles in rail weld heat affected zone-literature and research review report, Improvements to railway welding. CRC rail innovation, Australia., 2013. pp.1-28. http://www.railcrc.net.au/object/PDF/.

[12] Khan, A.R., Yu, S., Wang, H., Jiang, Y., Effect of cooling rate on microstructure and mechanical properties in the CGHAZ of electroslag welded pearlitic rail steel. Metals 9, pp.742-758. http://dx.doi.org/10.3390/met9070742.( 2019).

DOI: 10.3390/met9070742

[13] ASTM E-112-13, Standard test methods for determining average grain size. ASTM International, West Conshohocken, PA, USA.(2013).

[14] Krauss, G., 2005. Steel: Processing, Structure and Performance, 1st Ed. ASTM International, Materials Park, Ohio, pp.281-296. https://scholar.google.com/scholar_lookup?title=Steels%3A%20Processing%2C%20Structure%20and%20Performance&publication_year=2005&author=G.%20Krauss.

[15] ASTM E092-17, Standard test methods for Vickers hardness and knop hardness of metallic materials. ASTM International, West Conshohocken, PA, USA.(2017).

[16] ASTM E370-03a, Standard test methods and Definitions for mechanical testing of steel products. ASTM International, West Conshohocken, PA, USA.(2003).

[17] ASTM E23-02a, Standard test methods for notched bar impact testing of metallic materials. ASTM International, West Conshohocken, PA, USA.(2002).

[18] Godefroid, L.B., Faria, G.L., Candido, L.C., Viana, T.G., 2014. Fatigue failure of a flash butt welded rail. Procedia Materials Engineering, 20th European conference on fracture (ECF20) 3, pp.1896-1901. http://dx.oi.org/10.1016/j.mspro.06.036.(2014).

DOI: 10.1016/j.mspro.2014.06.306

[19] Luzginova, N.V., Zhao, L. Sietsma, J., The cementite spheroidization process in high carbon steels with different chromium contents. Metallurgical and material Transaction A 39A, pp.513-521. http://dx.doi.org/10.1007/s11661-007-9403-3.(2008).

DOI: 10.1007/s11661-007-9403-3
