Effect of Space Holder Size on the Porous High Purity Aluminum Property

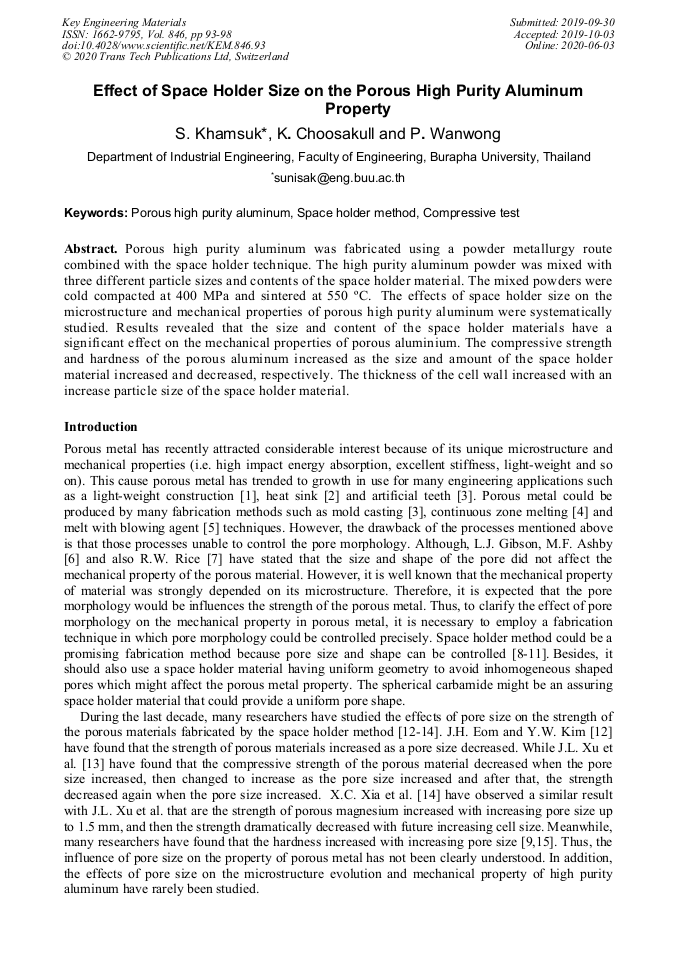

Abstract:

Porous high purity aluminum was fabricated using a powder metallurgy route combined with the space holder technique. The high purity aluminum powder was mixed with three different particle sizes and contents of the space holder material. The mixed powders were cold compacted at 400 MPa and sintered at 550 °C. The effects of space holder size on the microstructure and mechanical properties of porous high purity aluminum were systematically studied. Results revealed that the size and content of the space holder materials have a significant effect on the mechanical properties of porous aluminium. The compressive strength and hardness of the porous aluminum increased as the size and amount of the space holder material increased and decreased, respectively. The thickness of the cell wall increased with an increase particle size of the space holder material.

• Periodical: Key Engineering Materials (Volume 846)
• Pages: 93-98
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.846.93
• Online since: June 2020
• Authors: Sunisa Khamsuk*, K. Choosakull, P. Wanwong
• Keywords: Compressive Test, Porous High Purity Aluminum, Space Holder Method

References

[1] J. Banhart: Prog. Mater. Sci. Vol.46 (2001), p.559–632.

[2] H. Nakajima T. Hopler, F. Schorghuber, F. Simancık: The 1st International Conference on Metal Foams and Porous Metal Structures (1999), pp.79-82.

[3] H. Nakajima: Prog. Mater. Sci. Vol.52 (2007), p.1091–1173.

[4] K. Ota, K. Ohashi, H. Nakajima: Mat Sci Eng AVol. 341(2003), pp.139-143.

[5] A.E. Simone and L.J. Gibson: Acta Mater Vol.46 (1998), pp.3109-3123.

[6] L.J. Gibson, M.F. Ashby: Structure and Properties (2nd edn), Cambridge University Press (1997).

[7] R. W. Rice: J Am Ceram Soc Vol. 59 (1976), pp.536-537.

[8] B. Jiang, N.Q. Zhao, C.S. Shi, J.J. Li: Scr. Mater Vol. 53 (2005), pp.781-785.

[9] B. Jiang, Z. Wang and N. Zhao: Scr. Mater Vol. 56 (2007), pp.169-172.

[10] M. Hakamada, T. Kuromura, Y. Chen, H. Kusuda and M. Mabuchi: Mater Trans Vol. 48 (2007), p.32–36.

[11] S. Khamsuk A. Joosawat N. Panomtang and K. Wongtimnoi: ICMIM 2017 Conference Series: Mat Sci Eng Vol. 244 (2017).

DOI: 10.1088/1757-899x/244/1/012024

[12] J.H. Eom and Y.W. Kim: J Ceram Soc Jpn Vol.116 (2008), pp.1159-1163.

[13] J.L. Xu, L.Z. Bao, A.H. Liu, X.F. Jin, J.M. Luo, Z.C. Zhong and Y.F. Zheng: J Alloy Compd Vol. 645 (2015), p.137–142.

[14] X.C. Xia, X.W. Chen, Z. Zhang, X. Chen, W.M. Zhao, B. Liao and B. Hur: J Magnes Alloy Vol.1(2013), pp.330-335.

[15] C.Torres-Sanchez, John McLaughlin, Andrea Fotticchia: J Alloy Compd Vol. 731 (2018), pp.189-199.

[16] P.G. Karandikar, M. Headinger: Proceeding of America society for composite (1994), pp.538-545.

[17] N. Michailidis and F. Stergioudi, Mater. Des. Vol 32 (2011), p.1559–1564.

[18] H. Bafti and A. Habibolahzadeh: Mater. Des. Vol.31 (2010), p.4122–4129.

[19] T.G. Nieh, J.H. Kinney, and J. Wadsworth: Scripta Mater Vol. 38 (1998), p.1487–1494.
