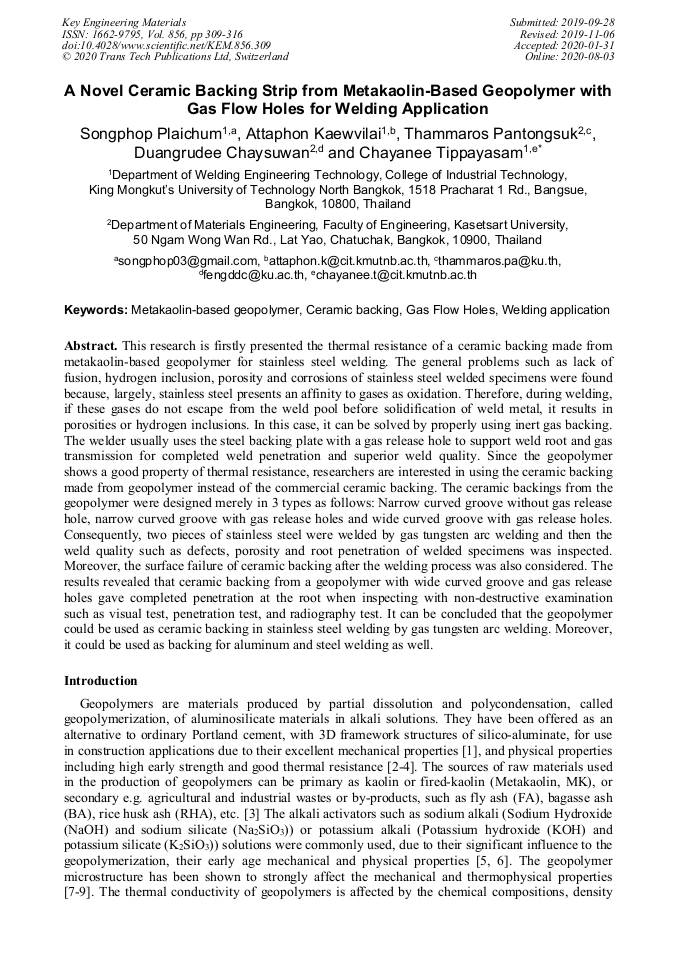

A Novel Ceramic Backing Strip from Metakaolin-Based Geopolymer with Gas Flow Holes for Welding Application

Abstract:

This research is firstly presented the thermal resistance of a ceramic backing made from metakaolin-based geopolymer for stainless steel welding. The general problems such as lack of fusion, hydrogen inclusion, porosity and corrosions of stainless steel welded specimens were found because, largely, stainless steel presents an affinity to gases as oxidation. Therefore, during welding, if these gases do not escape from the weld pool before solidification of weld metal, it results in porosities or hydrogen inclusions. In this case, it can be solved by properly using inert gas backing. The welder usually uses the steel backing plate with a gas release hole to support weld root and gas transmission for completed weld penetration and superior weld quality. Since the geopolymer shows a good property of thermal resistance, researchers are interested in using the ceramic backing made from geopolymer instead of the commercial ceramic backing. The ceramic backings from the geopolymer were designed merely in 3 types as follows: Narrow curved groove without gas release hole, narrow curved groove with gas release holes and wide curved groove with gas release holes. Consequently, two pieces of stainless steel were welded by gas tungsten arc welding and then the weld quality such as defects, porosity and root penetration of welded specimens was inspected. Moreover, the surface failure of ceramic backing after the welding process was also considered. The results revealed that ceramic backing from a geopolymer with wide curved groove and gas release holes gave completed penetration at the root when inspecting with non-destructive testing such as visual test, penetration test, and radiography test. It was concluded that the geopolymer could be used as ceramic backing in stainless steel welding by gas tungsten arc welding. Moreover, it could be used as backing for aluminum and steel welding as well.

• Periodical: Key Engineering Materials (Volume 856)
• Pages: 309-316
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.856.309
• Online since: August 2020
• Authors: Songphop Plaichum, Attaphon Kaewvilai, Thammaros Pantongsuk, Duangrudee Chaysuwan, Chayanee Tippayasam*
• Keywords: Ceramic Backing, Gas Flow Holes, Metakaolin-Based Geopolymer, Welding Application

References

[1] M. Mustafa, A. Bakri, H. Mohammed, H. Kamarudin, I.K. Niza, Y. Zarina, Review on fly ash-based geopolymer concrete without Portland cement, J. Eng. Technol. Res. 3 (2011) 1–4.

[2] J. Temuujin, A. Minjigmaa, W. Rickard, M. Lee, I Williams, A. van Riessen, Preparation of metakaolin based geopolymer coatings onmetal substrates as thermal barriers, Appl. Clay Sci. 46 (2009) 265–270.

DOI: 10.1016/j.clay.2009.08.015

[3] C. Tippayasam, S. Boonsalee, S. Sajjavanich, C. Ponzoni, E. Kamseu, D. Chaysuwan, Geopolymer development by powders of metakaolin and wastes in Thailand, Adv Sci Tech. 69 (2010) 63–68.

DOI: 10.4028/www.scientific.net/ast.69.63

[4] C. Tippayasam, P. Boonanunwong, J. Calvez, P. Thavorniti, P. Chindaprasirt, D. Chaysuwan, Effect of Porosity and Pore Size on Microstructures and Mechanical Properties of Metakaolin Blended with Ca(OH)2 and PLA as Porous Geopolymers, Key Eng. Mater. 690 (2016) 276-281.

DOI: 10.4028/www.scientific.net/kem.690.276

[5] P. Duxson, G.C. Lukey, J.S.J. Deventer, Physical evolution of Na-geopolymer derived from metakaolin up to 1000 °C, J. Mater. Sci. 42 (2007) 3044–3054.

DOI: 10.1007/s10853-006-0535-4

[6] K. Komnitsas, D. Zaharaki, Geopolymerisation: a reviewand prospects for theminerals industry, Miner. Eng. 20 (2007) 1261–1277.

DOI: 10.1016/j.mineng.2007.07.011

[7] P. Duxson, J.L. Provis, G.C. Lukey, S.W. Mallicoat, W.M. Kriven, J.S.J. van Deventer, Understanding the relationship between geopolymer composition, microstructure and mechanical properties, Colloids Surf. A Physicochem. Eng. Asp. 269 (2005) 47–58.

DOI: 10.1016/j.colsurfa.2005.06.060

[8] P. Duxson, A. Fernández-Jiménez, J.L. Provis, G.C. Lukey, A. Palomo, J.S.J. Deventer, Geopolymer technology: the current state of the art, J. Mater. Sci. 42 (2006) 2917–2933.

DOI: 10.1007/s10853-006-0637-z

[9] R. Arellano-Aguilar, O. Burciaga-Díaz, A. Gorokhovsky, J.I. Escalante-García, Geopolymer mortars based on a low grade metakaolin: Effects of the chemical composition, temperature and aggregate:binder ratio. Constr. Build. Mater. 50 (2014) 642–648.

DOI: 10.1016/j.conbuildmat.2013.10.023

[10] E. Kamseu, B. Nait-Ali, M.C. Bignozzi, C. Leonelli, S. Rossignol, D.S. Smith, Bulk composition and microstructure dependence of effective thermal conductivity of porous inorganic polymer cements. J. Eur. Ceram. Soc. 32 (2012) 1593–1603.

DOI: 10.1016/j.jeurceramsoc.2011.12.030

[11] Y.S. Ng, Y.M. Liew, C.Y. Heah, A.B. Abdullah, K. Hussin, Thermal Resistance of Fly Ash Geopolymers with Alumina as Additive, Solid State Phenom. 281 (2018) 182-188.

DOI: 10.4028/www.scientific.net/ssp.281.182

[12] S. Tongzhan, D. Huan, X. Zhimin, N. Xilin, Y. Jiancheng, Ceramic Backing Enhances One-Sided Welding. Weld J. 90 (2011) 48-51.
