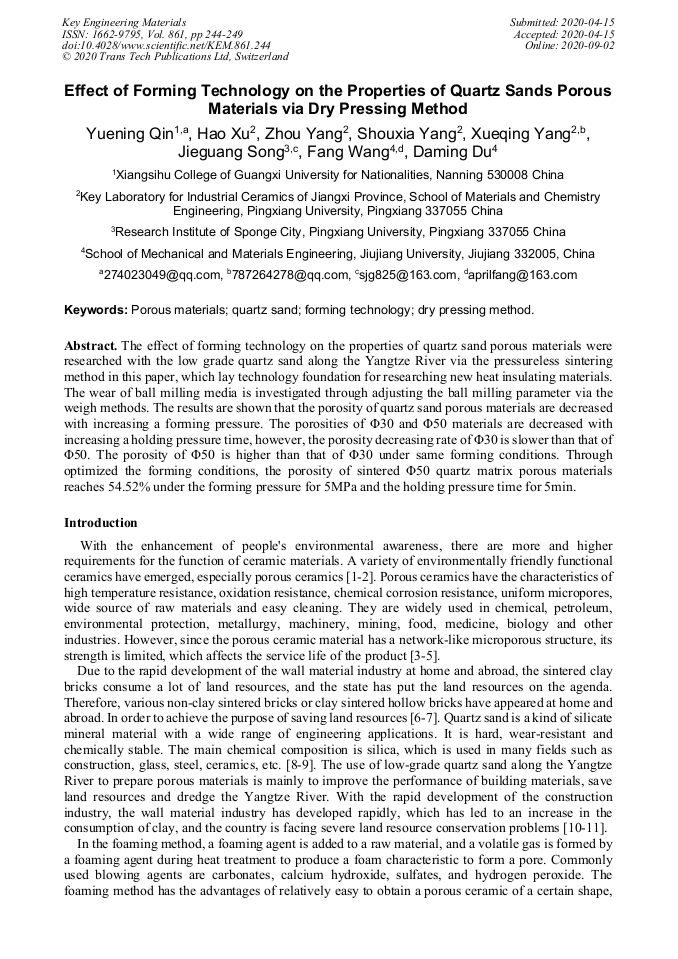

Effect of Forming Technology on the Properties of Quartz Sands Porous Materials via Dry Pressing Method

Abstract:

The effect of forming technology on the properties of quartz sand porous materials were researched with the low grade quartz sand along the Yangtze River via the pressureless sintering method in this paper, which lay technology foundation for researching new heat insulating materials. The wear of ball milling media is investigated through adjusting the ball milling parameter via the weigh methods. The results are shown that the porosity of quartz sand porous materials are decreased with increasing a forming pressure. The porosities of Φ30 and Φ50 materials are decreased with increasing a holding pressure time, however, the porosity decreasing rate of Φ30 is slower than that of Φ50. The porosity of Φ50 is higher than that of Φ30 under same forming conditions. Through optimized the forming conditions, the porosity of sintered Φ50 quartz matrix porous materials reaches 54.52% under the forming pressure for 5MPa and the holding pressure time for 5min.

• Periodical: Key Engineering Materials (Volume 861)
• Pages: 244-249
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.861.244
• Online since: September 2020
• Authors: Yue Ning Qin, Hao Xu, Zhou Yang, Shou Xia Yang, Xue Qing Yang, Jie Guang Song*, Fang Wang, Da Ming Du
• Keywords: Dry Pressing Method, Forming Technology, Porous Materials, Quartz Sand

References

[1] L. Swierczek, B. Michał Cieslik, P. Konieczka, The potential of raw sewage sludge in construction industry-A review, J. Clean. Prod. 200 (2018) 342-356.

[2] J.G. Song, G.C. Ji, S.B. Li. Effect of sintering behavior on the porous structure of porous quartz ceramics. Int. J. Mater. Res. 104 (2013) 93-98.

DOI: 10.3139/146.110829

[3] S.M. Wang, X.F. Zhang, F.H. Kuang, Preparation and properties of a new porous ceramic material used in clean energy field. J. Mater. Sci. Tech. 35 (2019) 1255-1260.

DOI: 10.1016/j.jmst.2019.03.038

[4] R.K. Nishihora, P.L. Rachadel, M.G. Quadri, D. Hotza, Manufacturing porous ceramic materials by tape casting-A review, J. Eur. Ceram. Soc. 38 (2018) 988-1001.

DOI: 10.1016/j.jeurceramsoc.2017.11.047

[5] J.G. Song, L. Chen, C.L. Pang, The effect of the sintering temperature on the properties of porous YAG ceramics, J. Ceram. Process. Res. 19(2018) 11-14.

[6] Z.H. Pan, J.L. Zhou, X. Jiang, Y.D. Xu, W. Chen, Investigating the effects of steel slag powder on the properties of self-compacting concrete with recycled aggregates, Construct. Build. Mater. 200 (2019) 570-577.

DOI: 10.1016/j.conbuildmat.2018.12.150

[7] J.L. Guo, Y.P. Bao, M. Wang, Steel slag in China: Treatment, recycling, and management, Waste Manag. 78 (2018) 318-330.

DOI: 10.1016/j.wasman.2018.04.045

[8] J.G. Song, B.L. Wu. Effect of technological condition on microstructures of high performance quartz sand sintered brick. Mater. Sci. Tech. 15 (2007) 569-571.

[9] Z.H. Pan, J.L. Zhou, X. Jiang, Y.D. Xu, W. Chen, Investigating the effects of steel slag powder on the properties of self-compacting concrete with recycled aggregates, Construct. Build. Mater. 200 (2019) 570-577.

DOI: 10.1016/j.conbuildmat.2018.12.150

[10] Q. Wan, F. Rao, S.X. Song, D.F. Gonzalez, N.L. Ortiz, Combination formation in the reinforcement of metakaolin geopolymers with quartz sand, Cement Concrete Comp. 80 (2017) 115-122.

DOI: 10.1016/j.cemconcomp.2017.03.005

[11] Q. Ren, Y.H. Ren, H. Li, X.L. Wu, O. Hai. Preparation and characterization of high silicon ceramic proppants using low grade bauxite and fly ash, Mater. Chem. Phys. 230 (2019) 355-361.

DOI: 10.1016/j.matchemphys.2019.04.009

[12] Z.P. Du, D.X Yao, Y.F Xia, K.H Zuo, Y.P. Zeng, The high porosity silicon nitride foams prepared by the direct foaming method, Ceram. Int. 45 (2019) 2124-2130.

DOI: 10.1016/j.ceramint.2018.10.118

[13] L. He, J.S. Li, M.H. Chen, Y. Yang, X.P. Lou, Effect of control technology on properties of quartz porous brick, Key Eng. Mater. 777 (2018) 564-568.

DOI: 10.4028/www.scientific.net/kem.777.564

[14] X.Y. Tang, Z.J. Zhang, X.Y. Zhang, W.L. Huo, Design and formulation of polyurethane foam used for porous alumina ceramics, J. Poly. Res. 25 (2018) 136-142.

DOI: 10.1007/s10965-018-1535-1

[15] E.V. Chaika, Isostatic, pressing of ceramic articles in thermoplastic molds, Glass Ceram. 73 (2016) 91-93.

DOI: 10.1007/s10717-016-9832-9

[16] W. Yi, X.Z. Hu, P. Ichim, X.D. Sun, Processing and properties of pressable ceramic with non-uniform reinforcement for selective-toughening, Mater. Sci. Eng. A 558 (2012) 543-549.

DOI: 10.1016/j.msea.2012.08.046

[17] O.A. Fomina, A.Y. Stolboushkin, Development of a novel mold design for manufacturing of hollow ceramic products from coal wastes, Mater. Today 11 (2019) 348-353.

DOI: 10.1016/j.matpr.2018.12.156

[18] F. Wang, M.H. Xu, A.X. Chen, L.T Liu, Effect of sintering temperature on properties of YAG porous ceramics via atmospheric sintering method, Solid State Phen. 281 (2018) 224-229.

DOI: 10.4028/www.scientific.net/ssp.281.224

[19] I. Himoto, S. Yamashita, H. Kita, Heat press molding of open-celled porous Si-SiC ceramics consisting of skeletal strut via gelcasting with flexible and thermosetting polyurethane resin, Adv. Powd. Tech. 27 (2016) 948-958.

DOI: 10.1016/j.apt.2016.02.031

[20] M.H. Chen, Y. Yang, W. Chen, Effect of molding method on the properties of prepared quartz sand sintered brick using the river sand, Solid State Phenomena, 279 (2018) 261-265.

DOI: 10.4028/www.scientific.net/ssp.279.261

[21] M. Aboras, A. Muchtar, C.H. Azhari, N. Yahaya, J.C.W. Mah, Enhancement of the microstructural and mechanical properties of dental zirconia through combined optimized colloidal processing and cold isostatic pressing, Ceram. Int. 45 (2019) 1831-1836.

DOI: 10.1016/j.ceramint.2018.10.072
