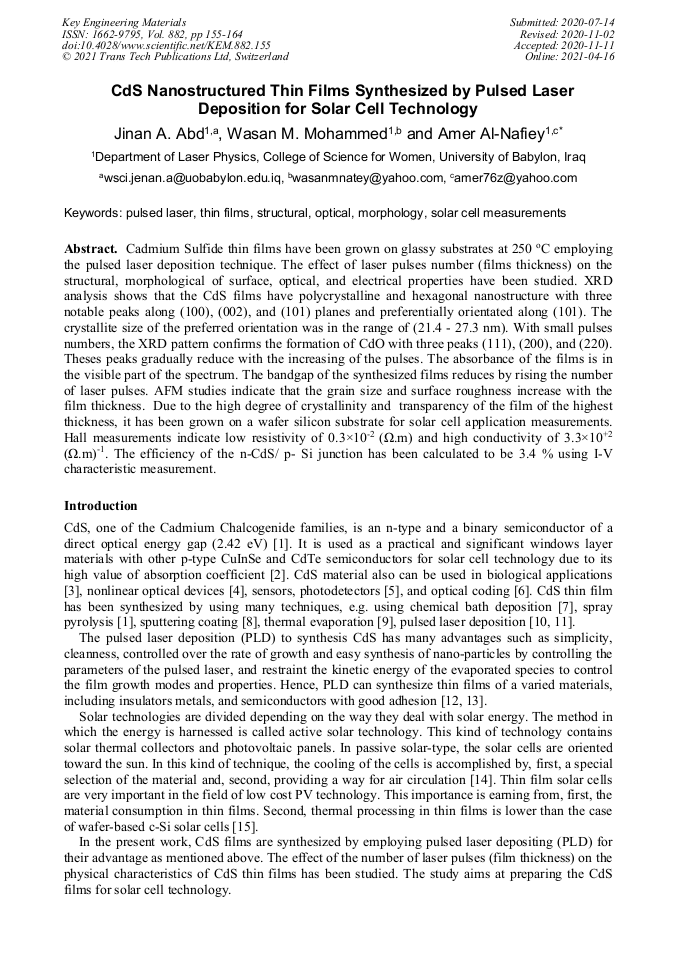

CdS Nanostructured Thin Films Synthesized by Pulsed Laser Deposition for Solar Cell Technology

Abstract:

CdS thin films have been grown on glass substrate at 250^o C employing pulsed laser deposition method. The effect of laser pulses number on the crystalline structure, surface morphology, optical properties, and films thickness have been studied. XRD analysis shows that the CdS films have polycrystalline and hexagonal nanostructure with three notable peaks along (100), (002), and (101) planes and preferentially orientated along (101). The crystallite size of the preferred orientation was in the range of (21.4 - 27.3 nm). With small pulses number, XRD pattern confirms the formation of CdO with three peaks (111), (200), and (220). Theses peaks gradually reduce with the increasing of the pulses. The absorbance of the films is in the visible part of the spectrum. The band gap of the synthesized films reduces by rising the number of laser pulses. AFM studies indicate that the grain size and surface roughness increase with the film thickness. Due to the good crystalline structure and optical properties of the film of the highest thickness, it has been grown on a wafer silicon substrate for solar cell applications measurements. Hall measurements indicate low resistivity of 0.3×10-2 (Ω.m) and high conductivity of 3.3×10+2 (Ω.m)-1. The efficiency of the n-CdS/ p-Si junction has been calculated to be 3.4 % using I-V characteristic measurement. Keywords: pulsed laser, thin films, structural, optical, morphology, solar cell measurements

• Periodical: Key Engineering Materials (Volume 882)
• Pages: 155-164
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.882.155
• Online since: April 2021
• Authors: Jinan A. Abd, Wasan M. Mohammed, Amer Al-Nafiey*
• Keywords: Morphology, Optical, Pulsed Laser, Solar Cell Measurements, Structural, Thin Films

References

[1] Sivaraman, T., V. Narasimman, V. S. Nagarethinam, and A. R. Balu. Effect of chlorine doping on the structural, morphological, optical and electrical properties of spray deposited CdS thin films., Progress in Natural Science: Materials International 25, no. 5 (2015): 392-398.

DOI: 10.1016/j.pnsc.2015.09.010

[2] Meshram, R. S., B. M. Suryavanshi, R. M. Thombre, D. Chandrapur, and D. Gadchiroli. Structural and optical properties of CdS thin films obtained by spray pyrolysis., Adv. Appl. Sci. Res 3 (2012): 1563-1571.

[3] Santos, B. S., P. M. A. Farias, A. Fontes, A. G. Brasil Jr, C. N. Jovino, A. G. C. Neto, D. C. N. Silva, F. D. de Menezes, and R. Ferreira. Semiconductor nanocrystals obtained by colloidal chemistry for biological applications., Applied surface science 255, no. 3 (2008): 796-798.

DOI: 10.1016/j.apsusc.2008.07.026

[4] Cao, Guozhong, and Dawei Liu. Template-based synthesis of nanorod, nanowire, and nanotube arrays., Advances in colloid and interface science 136, no. 1-2 (2008): 45-64.

DOI: 10.1016/j.cis.2007.07.003

[5] Rafea Tuama Ahmed and Amer Al-Nafiey Saif M. Alshrefi, Mohammed H.K. Al-Mamoori, Mohammed J. Jader Preparation and Study of CdO/ZnO/Fe2O3 Nanoparticles by Laser Ablation, Journal of Engineering and Applied Sciences 3 SI, no.14(2019): 6036 – 6041.

DOI: 10.36478/jeasci.2019.6036.6041

[6] Rondiya, Sachin, Avinash Rokade, Bharat Gabhale, Subhash Pandharkar, Madhavi Chaudhari, Abhijit Date, Minakshi Chaudhary, Habib Pathan, and Sandesh Jadkar. Effect of bath temperature on optical and morphology properties of CdS thin films grown by chemical bath deposition., Energy Procedia 110 (2017): 202-209.

DOI: 10.1016/j.egypro.2017.03.128

[7] Lisco, Fabiana, Piotr M. Kaminski, Ali Abbas, Kevin Bass, Jake W. Bowers, Gianfranco Claudio, Maria Losurdo, and J. M. Walls. The structural properties of CdS deposited by chemical bath deposition and pulsed direct current magnetron sputtering., Thin solid films 582 (2015): 323-327.

DOI: 10.1016/j.tsf.2014.11.062

[8] Rajpal, S., and V. Bandyopadhyay. Structural and optical properties of CdS thin film grown by chemical bath deposition., Журнал нано-та електронної фізики 5,№ 3 (1) (2013): 03021-1.

[9] Trajić, J., M. Gilić, N. Romčević, M. Romčević, G. Stanišić, B. Hadžić, M. Petrović, and Y. S. Yahia. Raman spectroscopy of optical properties in CdS thin films., Science of Sintering 47, no. 2 (2015): 145-152.

DOI: 10.2991/978-94-6239-157-4_12

[10] Liang, Qian, Guanggen Zeng, Bing Li, Wenwu Wang, Haibo Jiang, Jingquan Zhang, Wei Li, Lili Wu, and Lianghuan Feng. Deposition methods and properties of polycrystalline CdS thin films., Journal of Wuhan University of Technology-Mater. Sci. Ed. 30, no. 2 (2015): 307-310.

DOI: 10.1007/s11595-015-1144-3

[11] Martínez-Landeros, V. H., N. Hernandez-Como, G. Gutierrez-Heredia, Manuel A. Quevedo-López, and F. S. Aguirre-Tostado. Structural, chemical and electrical properties of CdS thin films fabricated by pulsed laser deposition using varying background gas pressure., Thin Solid Films 682 (2019): 24-28.

DOI: 10.1016/j.tsf.2019.05.014

[12] Liu, Z.. Laser Applied Coatings. Shreir's Corrosion, Elsevier publisher (2010): 2622–2635.

[13] Abhishek S.Oswal, M. R. Birajdar, Mohammed Hussien Rady, and S. A. Kale, Study of Performance Analysis of Modern Materials for Transparent Thin Film Solar Cells, in Edited Book: Renewable Energy Systems, Nova Science Publishers, Inc., New York (2016), 53-66, ISBN: 978-153610441-7;978-153610423-3.

[14] Deshmukh, Sampat G., and Vipul Kheraj. A comprehensive review on synthesis and characterizations of Cu 3 BiS 3 thin films for solar photovoltaics., Nanotechnology for Environmental Engineering 2, no. 1 (2017): 15.

DOI: 10.1007/s41204-017-0025-8

[15] Falk, F., and G. Andrä. Laser crystallization—a way to produce crystalline silicon films on glass or on polymer substrates., Journal of crystal growth 287, no. 2 (2006): 397-401.

DOI: 10.1016/j.jcrysgro.2005.11.052

[16] Abd, Jinan A., and Wasan M. Mohammed. Indium oxide: Synthesis and characterization for future industrial applications., In AIP Conference Proceedings, vol. 2123, no. 1, p.020010. AIP Publishing LLC, (2019).

[17] N. F. Habubi , R.A. Al-Anssari ,and Jinan A. Abd , Structural, optical and electrical properties of indium doped cadmium oxide thin films, Nano Science and Nano Technology An Indian Journal, 7(5), (2013), 172-178.

[18] Angelin Prema, R. John Xavier, P. Arockia Sahayaraj, C. Pragathiswaran, and V. Dharmalingam, Characterization of cadmium sulfide thin film grown by chemical bath deposition technique with SEM, XRD, EDAX and AFM analysis , Der Pharma Chemica, 8(4), (2016) ,96-100.

[19] Al-Hussam, Abdullah MA, and Salah Abdul-Jabbar Jassim. Synthesis, structure, and optical properties of CdS thin films nanoparticles prepared by chemical bath technique., Journal of the Association of Arab Universities for Basic and Applied Sciences 11, no. 1 (2012): 27-31.

DOI: 10.1016/j.jaubas.2011.10.001

[20] Al-Anssari, Ramiz A., Nadir F. Habubi, and Jinan Ali Abd. Fabrication and characterization of n-CdO: In/p-Si thin film solar cell., Journal of Electron Devices 17 (2013): 1457-1464.
