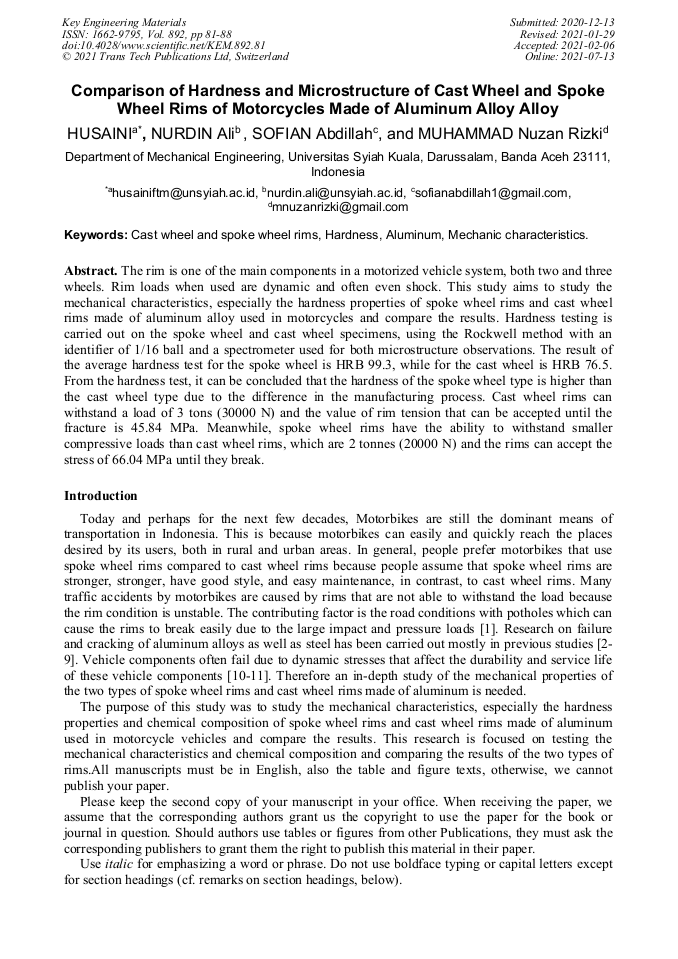

Comparison of Hardness and Microstructure of Cast Wheel and Spoke Wheel Rims of Motorcycles Made of Aluminum Alloy Alloy

Abstract:

The rim is one of the main components in a motorized vehicle system, both two and three wheels. Rim loads when used are dynamic and often even shock. This study aims to study the mechanical characteristics, especially the hardness properties of spoke wheel rims and cast wheel rims made of aluminum alloy used in motorcycles and compare the results. Hardness testing is carried out on the spoke wheel and cast wheel specimens, using the Rockwell method with an identifier of 1/16 ball and a spectrometer used for both microstructure observations. The result of the average hardness test for the spoke wheel is HRB 99.3, while for the cast wheel is HRB 76.5. From the hardness test, it can be concluded that the hardness of the spoke wheel type is higher than the cast wheel type due to the difference in the manufacturing process. Cast wheel rims can withstand a load of 3 tons (30000 N) and the value of rim tension that can be accepted until the fracture is 45.84 MPa. Meanwhile, spoke wheel rims have the ability to withstand smaller compressive loads than cast wheel rims, which are 2 tonnes (20000 N) and the rims can accept the stress of 66.04 MPa until they break.

• Periodical: Key Engineering Materials (Volume 892)
• Pages: 81-88
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.892.81
• Online since: July 2021
• Authors: Husaini Husaini*, Nurdin Ali, Abdillah Sofian, Nuzan Rizki Muhammad
• Keywords: Aluminum, Cast Wheel, Hardness, Mechanic Characteristics, Spoke Wheel Rims

References

[1] Ningtyas A, and Lubi J, Jurusan Teknik Mesin, Fakultas Teknologi Industri, (in: Indonesia: Institut Teknologi Sepuluh Nopember Surabaya). (2013).

DOI: 10.30596/rmme.v2i1.3067

[2] Husaini, K KISHIMOTO, M HANJI, M NOTOMI, Investigations of the mixed mode crack growth behavior of an aluminum alloy, ARPN J.of Eng. and Appl. Sci. 11 (2016) 885-890.

[3] Husaini, Nurdin Ali, Agustian B, Analysis on The Surface of Broken Screw Spring Front Car Suspension (in Indonesian), Seminar Nasional Teknologi Rekayasa (SNTR-3) (2016) 111-117.

[4] Husaini, Zuhaimi, Mixed Mode Fracture Behavior of An Aluminum Alloy A6061 Investigated By Using Compact Tension Shear Specimens, Int. J. of Techn. 7 (2016) 456-462.

DOI: 10.14716/ijtech.v7i3.1924

[5] Husaini, N Ali, R Riantoni, TE Putra, H Husin, Study of leaf spring fracture behavior used in the suspension systems in the diesel truck vehicles, IOP Conf. Series: Mater. Sci. and Eng. 541 (2019) 012046.

DOI: 10.1088/1757-899x/541/1/012046

[6] Suharto D, Husaini, Siswosuwarno M, Proc. of The First Austral. Cong. Appl. Mech.: ACAM-96 Barton Australia. 1 (1996) 227-232.

[7] Husaini, Ali N, Putra TE, Armia F, Akhyar, Study on Fracture Failures of the Super Heater Water Pipe Boiler, Def. and Diff. Forum 402 (2020) 20-26.

DOI: 10.4028/www.scientific.net/ddf.402.20

[8] Husaini, Putra T E, Novriandika S, Study of Failure Analysis of a Fracture Crankshaft Pulley Used on a Truck Engine, IOP Conf. Ser.: Mater. Sci. Eng. 739 (2020) 012018.

DOI: 10.1088/1757-899x/739/1/012018

[9] Josip Brnic, Goran Turkalj, Domagoj Lanc, Marko Canadija, Marino Brcic, Goran Vukelic, Comparison of material properties: Steel 20MnCr5 and similar steels, J.l of Constr. Steel Res. 95 (2014) 81-89.

DOI: 10.1016/j.jcsr.2013.11.024

[10] Putra T E, Husaini, Ikbal M, Hasanuddin I, Rizal M, Machmud M N, Fatigue Life Assessments of the AISI 1513 Carbon Steel Subjected to Road Surface Strains, Def. and Diff. Forum 402 (2020) 39-44.

DOI: 10.4028/www.scientific.net/ddf.402.39

[11] Putra T E, Husaini, Prakasa H, Prediction of the Fatigue Life of the SAE 5160 Carbon Steel Coil Spring Based on Strain-Life Approach, Key Eng. Mat. 841 (2020) 381-386.

DOI: 10.4028/www.scientific.net/kem.841.381

[12] Tahu F, Limbong U K E, Jurusan Teknik Mesin,(Indonesai: Universitas Nusa Cendana). (2015).

[13] ASTM E18–15, Stand. Test Meth. Rockw. Hard. Met. Materials (USA: ASTM International). (2015).

[14] Husaini, Putra T E, Rizky M R, Akmal R, Hasanuddin I, Rizal M, Ali N, Fatigue Life Assessments of the AISI 1513 Carbon Steel of a Vehicle Lower Arm Subjected to Clockwise and Counter-Clockwise Road Strains, Def. and Diff. Forum 402 (2020) 45-49.

DOI: 10.4028/www.scientific.net/ddf.402.45

[15] Putra T E, Husaini, Machmud M N, Predicting the fatigue life of an automotive coil spring considering road surface roughness, Eng. Fail. Aanaly. 116 (2020) 104722.

DOI: 10.1016/j.engfailanal.2020.104722

[16] Andoko A, Harjanto B, Estriyanto Y, Jurusan Pendidikan Teknik dan Kejuruan (in: Indonesia: Universitas Sebelas Maret Surakarta). (2013).

DOI: 10.20961/jiptek.v10i2.16922
