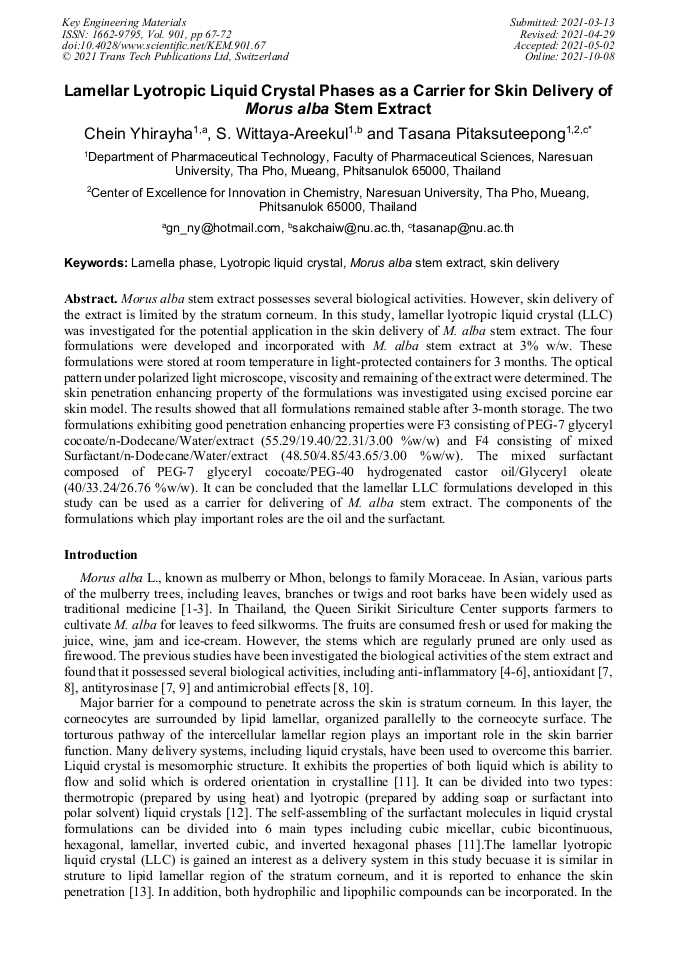

Lamellar Lyotropic Liquid Crystal Phases as a Carrier for Skin Delivery of Morus alba Stem Extract

Abstract:

Morus alba stem extract possesses several biological activities. However, skin delivery of the extract is limited by the stratum corneum. In this study, lamellar lyotropic liquid crystal (LLC) was investigated for the potential application in the skin delivery of M. alba stem extract. The four formulations were developed and incorporated with M. alba stem extract at 3% w/w. These formulations were stored at room temperature in light-protected containers for 3 months. The optical pattern under polarized light microscope, viscosity and remaining of the extract were determined. The skin penetration enhancing property of the formulations was investigated using excised porcine ear skin model. The results showed that all formulations remained stable after 3-month storage. The two formulations exhibiting good penetration enhancing properties were F3 consisting of PEG-7 glyceryl cocoate/n-Dodecane/Water/extract (55.29/19.40/22.31/3.00 %w/w) and F4 consisting of mixed Surfactant/n-Dodecane/Water/extract (48.50/4.85/43.65/3.00 %w/w). The mixed surfactant composed of PEG-7 glyceryl cocoate/PEG-40 hydrogenated castor oil/Glyceryl oleate (40/33.24/26.76 %w/w). It can be concluded that the lamellar LLC formulations developed in this study can be used as a carrier for delivering of M. alba stem extract. The components of the formulations which play important roles are the oil and the surfactant.

• Periodical: Key Engineering Materials (Volume 901)
• Pages: 67-72
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.901.67
• Online since: October 2021
• Authors: Chein Yhirayha, Sakchai Wittaya-Areekul, Tasana Pitaksuteepong*
• Keywords: Lamella Phase, Lyotropic Liquid Crystal, Morus alba Stem Extract, Skin Delivery

References

[1] J. Zhishen, T. Mengcheng, W. Jianming, The determination of flavonoid contents in mulberry and their scavenging effects on superoxide radicals, Food Chem. 64 (1999) 555-559.

DOI: 10.1016/s0308-8146(98)00102-2

[2] T. Katsube, N. Imawaka, Y. Kawano, Y. Yamazaki, K. Shiwaku, Y. Yamane, Antioxidant flavonol glycosides in mulberry (Morus alba L.) leaves isolated based on LDL antioxidant activity, Food Chem. 97 (2006) 25-31.

DOI: 10.1016/j.foodchem.2005.03.019

[3] P. Chen, F. Zheng, Y. Zhang, F. Gao, Y. Chen, G. Shi, Ethnobotanical study of medicinal plants on arthritis used by Chaoshan in Guangdong, China, Med. Chem. (Los Angeles) 6 (2016) 715-723.

DOI: 10.4172/2161-0444.1000420

[4] A. Khunakornvichaya, S. Lekmeechai, P.P. Pham, W. Himakoun, W., T. Pitaksuteepong, N.P. Morales, W. Hemstapat, Morus alba L. stem extract attenuates pain and articular cartilage damage in the anterior cruciate ligament transection-Induced rat model of osteoarthritis, Pharmacology, 98 (2016) 209-216.

DOI: 10.1159/000447973

[5] N. Soonthornsit, C. Pitaksutheepong, W. Hemstapat, P. Utaisincharoen, T. Pitaksuteepong, In vitro anti-inflammatory activity of Morus alba L. stem extract in LPS-stimulated RAW 264.7 cells, Evid. Based Complement. Alternat. Med. 2017.

DOI: 10.1155/2017/3928956

[6] T. Wongwat, K. Srihaphon, C. Pitaksutheepong, W. Boonyo, T Pitaksuteepong, Suppression of inflammatory mediators and matrix metalloproteinase (MMP)-13 by Morus alba stem extract and oxyresveratrol in RAW 264.7 cellsa and C28/I2 human chondrocytes, J. Tradit. Complement Med. 10 (2020) 132-140. https://doi.org/10.1016/j.jtcme.2019.03.006.

DOI: 10.1016/j.jtcme.2019.03.006

[7] P. Thongsuk. In-vitro and clinical study of mulberry extract for skin whitening product. [Master's Thesis, Naresuan University, Phitsanulok, Thailand], (2007).

[8] W. Wang, Y. Zu, Y. Fu, T. Efferth, In vitro antioxidant and antimicrobial activity of extracts from Morus alba L. leaves, stems and fruits, Am. J. Chin. Med. 40 (2012) 349-356.

DOI: 10.1142/s0192415x12500279

[9] C. Yhirayha.Formulation and skin penetration study of lyotropic liquid crystal incorporating mulberry stem (Morus alba L.) extract. [Master's Thesis, Naresuan University, Phitsanulok, Thailand], (2013).

[10] K. Srihaphon, S. Lamlertthon, T. Pitaksuteepong, Investigation on the Potential Application of Morus alba Stem Extract for Inflammatory Acne Vulgaris, Songklanakarin J. Sci. Technol. 42 (2020) 1319-1325.

[11] F.B. Rosevear, Liquid Crystals: The Mesomorphic Phases of Surfactant Compositions, J. Soc. Cosmet. Chem. 19 (1968) 581-594.

[12] V.B. Patravale, S.D. Mandawgade, Novel cosmetic delivery systems: an application update, Int. J. Cosmet. Sci. 30 (2008) 19–33.

DOI: 10.1111/j.1468-2494.2008.00416.x

[13] J.A. Bouwstra, P.L.H. Nguyena, G.S. Gooris, M. Ponec, Structure of the skin barrier and its modulation by vesicular formulations, Prog. Lipid Res. 42 (2003) 1–36.

DOI: 10.1016/s0163-7827(02)00028-0

[14] C. Yhirayha, S. Soontaranon, S. Wittaya-areekul, T. Pitaksuteepong, Formulation of lyotropic liquid crystal containing mulberry stem extract: Influences of formulation ingredients on the formation and the nanostructure, Int. J. Cosmet. Sci. 36 (2014) 213-220.

DOI: 10.1111/ics.12116

[15] K.O. Chung, B.Y. Kim, M.H. Lee, Y.R. Kim, H.Y. Chung, J.H. Park, J.O. Moon, In-vitro and in-vivo anti-inflammatory effect of oxyresveratrol from Morus alba L, J. Pharm. Pharmacol. 55 (2003) 1695-1700.

DOI: 10.1211/0022357022313

[16] C. Rivière, S. Krisa, L. Péchamat, M. Nassra, J.C. Delaunay, A. Marchal, A. Badoc, P. Waffo-Teguo, J.M. Merillon, Polyphenols from the stems of Morus alba and their inhibitory activity against nitric oxide production by lipopolysaccharide-activated microglia, Fitoterapia. 97 (2014) 253-260.

DOI: 10.1016/j.fitote.2014.06.001

[17] L. Joel, L. Belinda, Surfactants in cosmetics, 2nd ed., Mrcel Dekker Inc. New York, (1997).
