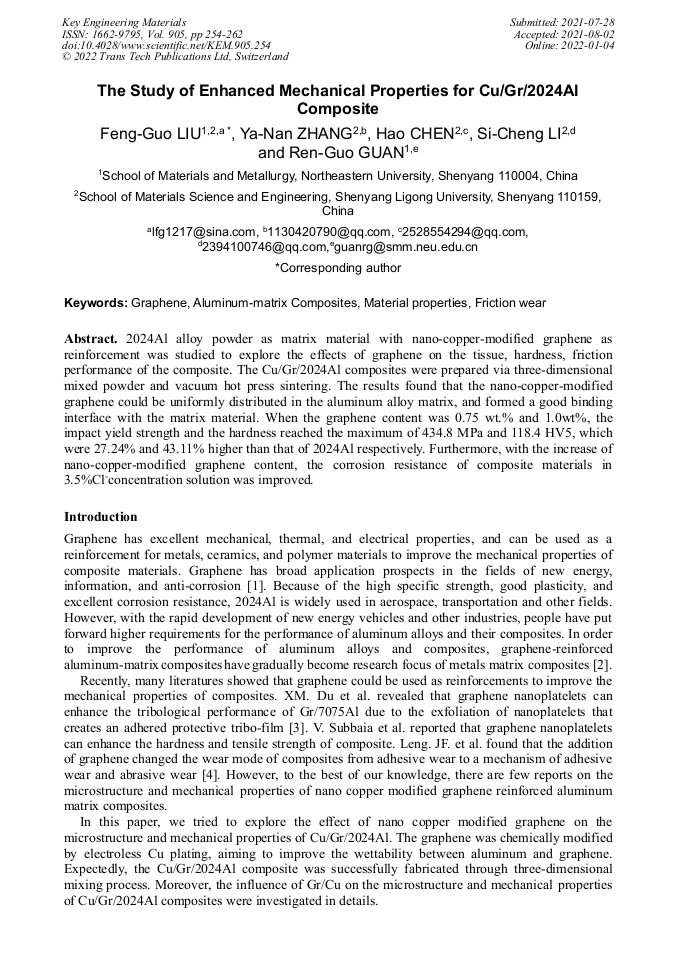

The Study of Enhanced Mechanical Properties for Cu/Gr/2024Al Composite

Abstract:

2024Al alloy powder as matrix material with nanocopper-modified graphene as reinforcement was studied to explore the effects of graphene on the tissue, hardness, friction performance of the composite. The Cu/Gr/2024Al composites were prepared via three-dimensional mixed powder and vacuum hot press sintering. The results found that the nanocopper-modified graphene could be uniformly distributed in the aluminum alloy matrix, and formed a good binding interface with the matrix material. When the graphene content was 0.75 wt.% and 1.0wt%, the impact yield strength and the hardness reached the maximum of 434.8 MPa and 118.4 HV5, which were 27.24% and 43.11% higher than that of 2024Al respectively. Furthermore, with the increase of nanocopper-modified graphene content, the corrosion resistance of composite materials in 3.5%Cl^-concentration solution was improved.

• Periodical: Key Engineering Materials (Volume 905)
• Pages: 254-262
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.905.254
• Online since: January 2022
• Authors: Feng Guo Liu*, Ya Nan Zhang, Hao Chen, Si Cheng Li, Ren Guo Guan
• Keywords: Aluminum-Matrix Composites, Friction Wear, Graphene, Material Properties

References

[1] Wang XL. The application and development of metal matrix composites in the field of aerospace [J]. Science and Technology Innovation Herald2016,06: 16-17,90.

[2] K.K. Ma, H.M. Wen, et al. Mechanical behavior and strengthening mechanisms in ultrafine grain precipitation-strengthened aluminum alloy. Acta Mater, 62 (2014) 141-155.

DOI: 10.1016/j.actamat.2013.09.042

[3] Li JJ. Study on the Effect of Si Cp on Graphene-Aluminum Matrix Composites [J]. Journal of Shenyang Ligong University, 2020, 2: 30-34.

[4] Wang K. Preparation and Mechanical Properties of Graphene Reinforced Aluminum Matrix Composite by Stirring Casting [D]. Jinan：Ji Nan University，(2020).

[5] Peng Yitian. Research on Tribological properties of Novel Copper/ Graphene Slip Ring with Electric Current[D]. Shanghai: Donghua University, (2016).

[6] Wei Chaolong, Ye Nan, Hong Lekang, et al. Scalable Preparation of Ultrathin Graphene-Reinforced Copper Composite Foils with High Mechanical Properties and Excellent Heat Dissipation[J]. ACS Applied Materials & Interfaces, 13(18), April (2021).

DOI: 10.1021/acsami.1c01519

[7] D. Berman, A. Erdemir, A.V. Sumant. Few layers graphene to reduce wear and friction on sliding steel surfaces[J]. Carbon, 54 (2013) 454-459.

DOI: 10.1016/j.carbon.2012.11.061

[8] Gao HX. Research progress of hybrid particles reinforced aluminum matrix composites [J]. Powder Metallurgy Industry, 2019, 29(3): 1-7.

[9] M.V. Farahani, E. Emadoddin, et al. Effect of grain refinement on mechanical properties and sliding wear resistance of extruded Sc-free 7042 aluminum alloy[J]. Mater Design, 54 (2014) 361-367.

DOI: 10.1016/j.matdes.2013.08.044

[10] Vencl A, Vučetić F, Bobić B, et al. Tribological characterisation in dry sliding conditions of compocasted hybrid A356/SiC p/Gr p composites with graphite macroparticles[J]. The International Journal of Advanced Manufacturing Technology, 2019, 100(9-12): 2135-2146.

DOI: 10.1007/s00170-018-2866-0

[11] Shi XL. Study on tribological performance of Ni Al matrix self-lubricating composite with addition of graphene[D]. WuHan: Wuhan University of Technology,(2016).

[12] Zhu RF. Electroless Deposition of Copper on Surface of Carbon Nanofibers [J]. Chinese Journal of Rare Metals, 2010, 04: 552-556.

[13] Pérez-Bustamante R., Pérez-Bustamante F, Estrada-Guel I, et al. Effect of milling time and CNT concentration on hardness of CNT/Al2024 composites produced by mechanical alloying[J]. Materials Characterization, 2013, 75: 13-19.

DOI: 10.1016/j.matchar.2012.09.005

[14] Du X M, Zheng K F, Liu F G. Effect of clustering on the mechanical properties of SiCp reinforced aluminum metal matrix composites[J]. Digest Journal of Nanomaterials and Biostructures, 2018, 13(1): 253– 261.x.

[15] Subbaiah V, Palampalle B, Brahmaraju K. Microstructural analysis and mechanical properties of pure Al–GNPs composites by stir casting method[J]. Journal of The Institution of Engineers (India): Series C, 2019, 100(3): 493-500.

DOI: 10.1007/s40032-018-0491-1

[16] Du X M, Zheng K F, Zhao T, et al. Fabrication and characterization of al7075 hybrid composite reinforced with graphene and sic nanoparticles by powder metallurgy[J]. Digest journal of nanomaterials and biostructures, 2018, 13(4): 1133-1140.

[17] Williamson G K, Hall W H. X-ray line broadening from filed aluminium and wolfram[J]. Acta metallurgica, 1953, 1(1): 22-31.

DOI: 10.1016/0001-6160(53)90006-6

[18] Y.W. Zhu, S. Murali, et al. Graphene and Graphene Oxide: Synthesis, Properties, and Applications[J]. Advanced materials, 22 (2010) 3906-3924.

DOI: 10.1002/adma.201001068

[19] Alam S N, Kumar L. Mechanical properties of aluminium based metal matrix composites reinforced with graphite nanoplatelets[J]. Materials Science and Engineering: A, 2016, 667: 16-32.

DOI: 10.1016/j.msea.2016.04.054

[20] Gao X, Yue H, Guo E, et al. Preparation and tensile properties of homogeneously dispersed graphene reinforced aluminum matrix composites[J]. Materials & Design, 2016, 94: 54-60.

DOI: 10.1016/j.matdes.2016.01.034

[21] Shahrdami L, Sedghi A, Shaeri M H. Microstructure and mechanical properties of Al matrix nanocomposites reinforced by different amounts of CNT and SiCW[J]. Composites Part B: Engineering, 2019, 175: 107081.

DOI: 10.1016/j.compositesb.2019.107081

[22] Baradeswaran A, Vettivel S C, Perumal A E, et al. Experimental investigation on mechanical behaviour, modelling and optimization of wear parameters of B4C and graphite reinforced aluminium hybrid composites[J]. Materials & Design, 2014, 63: 620-632.

DOI: 10.1016/j.matdes.2014.06.054

[23] Zhang Yubing. Study on the Graphene/silicon Nitride based Composite Ceramic tools and their Friction and Wear Properties[D]. Jinan：Qilu University, (2017).

[24] Akbarpour M R, Alipour S, Safarzadeh A, et al. Wear and friction behavior of self-lubricating hybrid Cu-(SiC + xCNT) composites[J]. Composites Part B, 2019,158: 92–101.

DOI: 10.1016/j.compositesb.2018.09.039

[25] Suresha S, Sridhara B K. Wear characteristics of hybrid aluminium matrix composites reinforced with graphite and silicon carbide particulates[J]. Composites Science and Technology, 2010, 70(11): 1652-1659.

DOI: 10.1016/j.compscitech.2010.06.013
