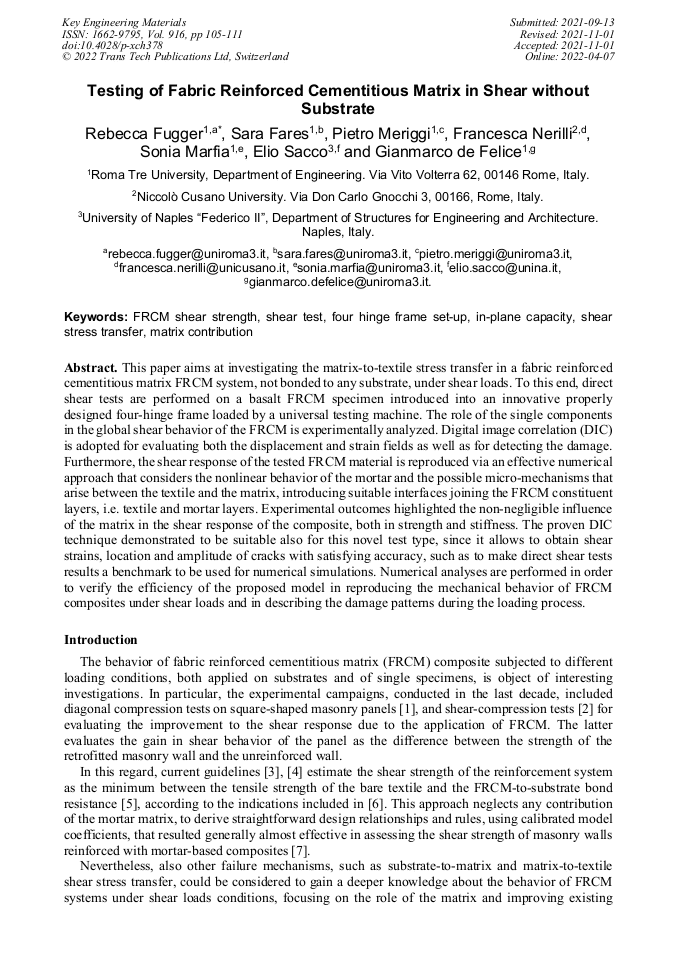

Testing of Fabric Reinforced Cementitious Matrix in Shear without Substrate

Abstract:

This paper aims at investigating the matrix-to-textile stress transfer in a fabric reinforced cementitious matrix FRCM system, not bonded to any substrate, under shear loads. To this end, direct shear tests are performed on a basalt FRCM specimen introduced into an innovative properly designed four-hinge frame loaded by a universal testing machine. The role of the single components in the global shear behavior of the FRCM is experimentally analyzed. Digital image correlation (DIC) is adopted for evaluating both the displacement and strain fields as well as for detecting the damage. Furthermore, the shear response of the tested FRCM material is reproduced via an effective numerical approach that considers the nonlinear behavior of the mortar and the possible micro-mechanisms that arise between the textile and the matrix, introducing suitable interfaces joining the FRCM constituent layers, i.e. textile and mortar layers. Experimental outcomes highlighted the non-negligible influence of the matrix in the shear response of the composite, both in strength and stiffness. The proven DIC technique demonstrated to be suitable also for this novel test type, since it allows to obtain shear strains, location and amplitude of cracks with satisfying accuracy, such as to make direct shear tests results a benchmark to be used for numerical simulations. Numerical analyses are performed in order to verify the efficiency of the proposed model in reproducing the mechanical behavior of FRCM composites under shear loads and in describing the damage patterns during the loading process.

• Periodical: Key Engineering Materials (Volume 916)
• Pages: 105-111
• DOI: https://doi.org/10.4028/p-xch378
• Online since: April 2022
• Authors: Rebecca Fugger*, Sara Fares, Pietro Meriggi, Francesca Nerilli, Sonia Marfia, Elio Sacco, Gianmarco de Felice
• Keywords: Four Hinge Frame Set-Up, FRCM Shear Strength, In-Plane Capacity, Matrix Contribution, Shear Stress Transfer, Shear Test

References

[1] M. Del Zoppo, M. Di Ludovico, A. Balsamo, and A. Prota, Experimental In-Plane Shear Capacity of Clay Brick Masonry Panels Strengthened with FRCM and FRM Composites, Journal of Composites for Construction. 23 (5) (2019).

DOI: 10.1061/(asce)cc.1943-5614.0000965

[2] C.G. Papanicolaou, T.C. Triantafillou, K. Karlos, and M. Papathanasiou, Textile-reinforced mortar (TRM) versus FRP as strengthening material of URM walls: in-plane cyclic loading, Materials and Structures 40 (2007) 1081-1097.

DOI: 10.1617/s11527-006-9207-8

[3] ACI American Concrete Institute. ACI 549.6R-20: Guide to Design and Construction of Externally Bonded Fabric-Reinforced Cementitious Matrix (FRCM) and Steel-Reinforced Grout (SRG) Systems for Repair and Strengthening Masonry Structures. Farmington Hills, MI, USA, (2020).

DOI: 10.14359/51702356

[4] National Research Council. CNR-DT 215/2018: Guide for the design and construction of Externally Bonded Fibre Reinforced Inorganic Matrix systems for strengthening existing structures. Rome 06/02/2019, version 6 February (2020).

[5] G. de Felice, M. Aiello, C. Caggegi, F. Ceroni, S. De Santis, E. Garbin, N. Gattesco, L. Hojdys, P. Krajewski, A. Kwiecien´, M. Leone, G.P. Lignola, C. Mazzotti, D.V. Oliveira, C.G. Papanicolaou, C. Poggi, T. Triantafillou, M. Valluzzi, and A. Viskovic A, Recommendation of RILEM Technical Committee 250-CSM: Composites for Sustainable Strengthening of Masonry. Test method to characterize the Textile Reinforced Mortar to substrate bond behavior, Materials and Structures 51:95 (2018).

DOI: 10.1617/s11527-018-1216-x

[6] European Organisation for Technical Assessment (EOTA), European Assessment Document – EAD 340275-00-0104: Externally-bonded composite systems with inorganic matrix for strengthening of concrete and masonry structures. (2020).

[7] P. Meriggi, S. De Santis, S. Fares, G. de Felice, Design of the shear strengthening of masonry walls with fabric reinforced cementitious matrix, Constr Build Mater 279 (2021) 122452.

DOI: 10.1016/j.conbuildmat.2021.122452

[8] C. Carloni, T. D'Antino, L.H. Sneed, and C. Pellegrino, Role of the Matrix Layers in the Stress-Transfer Mechanism of FRCM Composites Bonded to a Concrete Substrate, Journal of Engineering Mechanics 141 (2015).

DOI: 10.1061/(asce)em.1943-7889.0000883

[9] F. Nerilli, S. Marfia, E. Sacco, Micromechanical modeling of the constitutive response of FRCM composites, Constr Build Mater 236 (2020) 117539.

DOI: 10.1016/j.conbuildmat.2019.117539

[10] F. Nerilli, S. Marfia, E. Sacco, Nonlocal damage and interface modeling approach for the micro-scale analysis of FRCM, Computers & Structures 254 (2021) 106582.

DOI: 10.1016/j.compstruc.2021.106582

[11] M. Tekieli, S. De Santis, G. de Felice, A. Kwiecien´, F. Roscini, Application of Digital Image Correlation to composite reinforcements testing, Compos Struct 160 (2017) 670-688.

DOI: 10.1016/j.compstruct.2016.10.096

[12] J. Blaber, B. Adair, and A. Antoniou. 2015, Ncorr: open-source 2D digital image correlation matlab software, Experimental Mechanics 55(6) 1105–22.

DOI: 10.1007/s11340-015-0009-1

[13] CEN European Committee for Standardization. UNI EN998-1. Specification for mortar for masonry - Part 1: Rendering and plastering mortar. (2016).

DOI: 10.3403/02918815

[14] S. De Santis, G. de Felice, F. Roscini, Retrofitting of Masonry Vaults by Basalt Textile-Reinforced Mortar Overlays, International Journal of Architectural Heritage 13 (2016) 1061–1077.

DOI: 10.1080/15583058.2019.1597947

[15] American Society for Testing and Materials. ASTM E519-07. Standard Test Method for Diagonal Tension (shear) in Masonry Assemblages, (2007).

[16] Taylor RL. Feap - A finite element analysis program, (2014).
