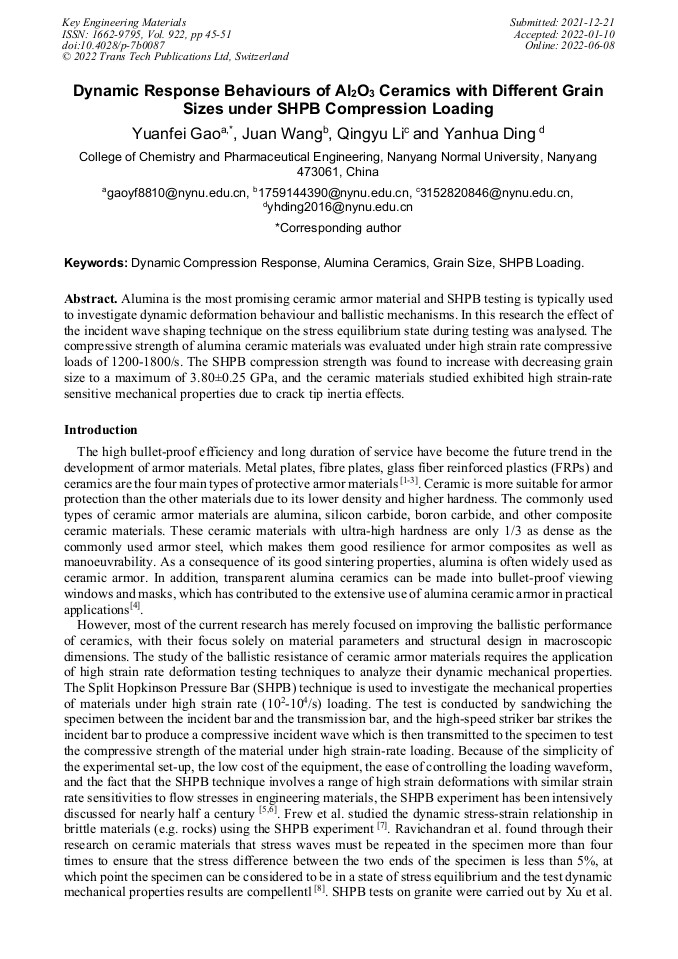

Dynamic Response Behaviours of Al₂O₃ Ceramics with Different Grain Sizes under SHPB Compression Loading

Abstract:

Alumina is the most promising ceramic armor material and SHPB testing is typically used to investigate dynamic deformation behaviour and ballistic mechanisms. In this research the effect of the incident wave shaping technique on the stress equilibrium state during testing was analysed. The compressive strength of alumina ceramic materials was evaluated under high strain rate compressive loads of 1200-1800/s. The SHPB compression strength was found to increase with decreasing grain size to a maximum of 3.80±0.25 GPa, and the ceramic materials studied exhibited high strain-rate sensitive mechanical properties due to crack tip inertia effects.

You might also be interested in these eBooks

View Preview

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 922)

Pages:

45-51

DOI:

https://doi.org/10.4028/p-7b0087

Citation:

Cite this paper

Online since:

June 2022

Authors:

Yuan Fei Gao*, Juan Wang, Qing Yu Li, Yan Hua Ding

Keywords:

Alumina Ceramics, Dynamic Compression Response, Grain Size, SHPB Loading

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Acharya, S. Bysakh, V. Parameswaran, et al, Deformation and failure of alumina under high strain rate compressive loading, Ceram. Int. 41 (2015) 6793-6801.

DOI: 10.1016/j.ceramint.2015.01.126

Google Scholar

[2] B.K. Yıldız, H.Y. Yılmaz, Y.K. Tür, Evaluation of mechanical properties of Al2O3–Cr2O3 ceramic system prepared in different Cr2O3 ratios for ceramic armour components, Ceram. Int. 45 (2019) 20575-20582.

DOI: 10.1016/j.ceramint.2019.07.037

Google Scholar

[3] Y. Xu, F. Dai, Dynamic response and failure mechanism of brittle rocks under combined compression-shear loading experiments, Rock Mech. Rock Eng. 51 (2018) 747-764.

DOI: 10.1007/s00603-017-1364-2

Google Scholar

[4] Y.F. Gao, S.Z. Si, L.J. Wang , et al, Stress Distribution and Deformation Behavior of Alumina Ceramic after Mini Bullet Dynamic Impact, Key Eng. Mater. 768 (2018) 140-145.

DOI: 10.4028/www.scientific.net/kem.768.140

Google Scholar

[5] J.L. Habberstad, Two-Dimensional Numerical Solution for Elastic Waves in Variously Configured Rods, J. Appl. Mech. 38 (1971) 62-70.

DOI: 10.1115/1.3408768

Google Scholar

[6] L.D. Bertholf, C.H. Karnes, Two-dimensional Analysis of the split Hopkinson Pressure Bar System, J. Mech. Phys. Solids. 23 (1975) 1-19.

DOI: 10.1016/0022-5096(75)90008-3

Google Scholar

[7] D.J. Frew, M.J. Forrestal, W. Chen, A SHPB Technique to Determine Compression Stress-strain Data for Rock Materials, Energ. Mater. 42 (2002) 40-46.

Google Scholar

[8] G. Ravichandran, G. Subhash, A Micro Mechanical Model for High Strain Rate Behavior of Ceramics, Int. J. Solids Struct. 32 (1995) 2627-2650.

DOI: 10.1016/0020-7683(94)00286-6

Google Scholar

[9] J. Xu, Y. Kang, Z. Wang, et al, Dynamic Mechanical Behavior of Granite under the Effects of Strain Rate and Temperature, Int. J. Geomech. 20 (2020) 04019177.

DOI: 10.1061/(asce)gm.1943-5622.0001583

Google Scholar

[10] Y.F. Gao, S.Z. Si, X.Y. Wang, et al, Measurement of High Strain Rate Indentation-Induced Deformations in Al2O3/SiCp Composite Ceramics, Mater. Sci. Forum. 1001 (2020) 35-40.

Google Scholar
