Damage and Fracture in Creep of a Cast B1914 Superalloy

Abstract:

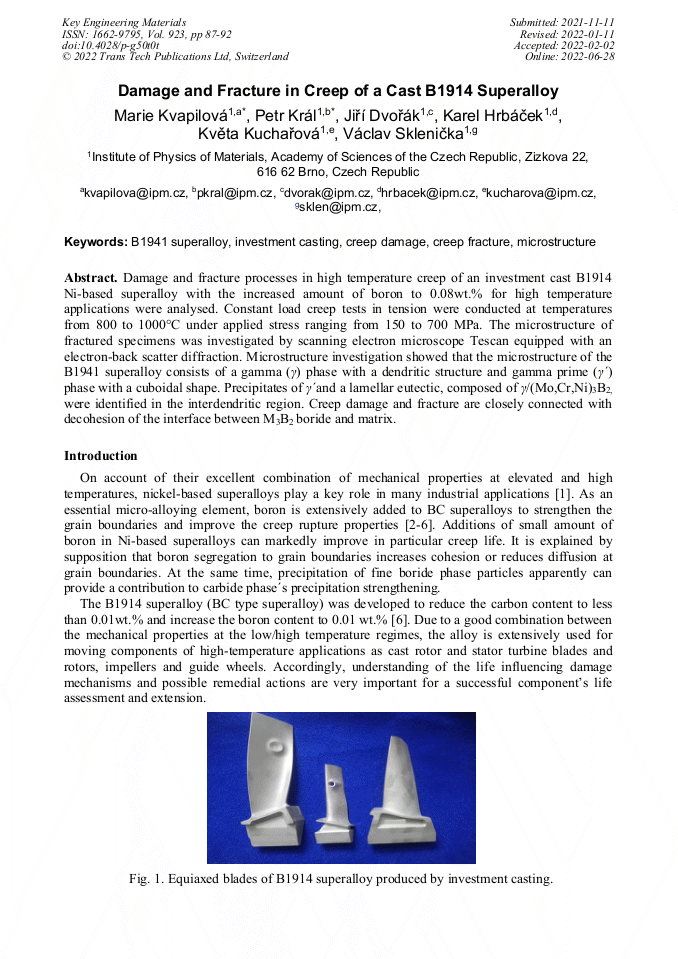

Damage and fracture processes in high temperature creep of an investment cast B1914 Ni-based superalloy with the increased amount of boron to 0.08wt.% for high temperature applications were analysed. Constant load creep tests in tension were conducted at temperatures from 800 to under applied stress ranging from 150 to 700 MPa. The microstructure of fractured specimens was investigated by scanning electron microscope Tescan equipped with an electron-back scatter diffraction. Microstructure investigation showed that the microstructure of the B1941 superalloy consists of a gamma (γ) phase with a dendritic structure and gamma prime (γ ́) phase with a cuboidal shape. Precipitates of γ ́and a lamellar eutectic, composed of γ/(Mo,Cr,Ni)₃B_2, were identified in the interdendritic region. Creep damage and fracture are closely connected with decohesion of the interface between M₃B₂ boride and matrix.

• Periodical: Key Engineering Materials (Volume 923)
• Pages: 87-92
• DOI: https://doi.org/10.4028/p-g50t0t
• Online since: June 2022
• Authors: Marie Kvapilová*, Petr Král, Jiří Dvořák, Karel Hrbáček, Květa Kuchařová, Václav Sklenička
• Keywords: B1941 Superalloy, Creep Damage, Creep Fracture, Investment Casting, Microstructure

References

[1] R.C. Reed, The Superalloys, Cambridge University Press, Cambridge, UK, 2006. ISBN 978-0-521-85904-2.

[2] G.L.R. Durber, Stress rupture properties and structural stability of the BC alloys, Proc. Conf. High Temperature Alloys, September 1978, Liege, pp.459-465.

[3] G.L.R Durber, C.A. Hamersley, Production experience with the boron modified nickel high temperature casting alloys, Metallurgia 46 (1979) 628-633.

[4] A.V. Shulga, Boron and carbon behavior in the cast Ni-base superalloy EP962, J. Alloys Compd. 436 (2007) 155-160.

DOI: 10.1016/j.jallcom.2006.07.051

[5] P.J. Zhou, J.J. Xu, X.F. Sun, H.R. Guan, Z.Q. Hu, The role of boron on a convential nickel-based superalloy, Mater. Sci. Eng. A, 491 (2008) 159-163.

[6] A.M. Da Silva Costa, C.A. Nunes, R. Baldan, G.C. Coelho, Thermodynamic evaluation of the phase stability and microstructural characterization of a cast B1914 superalloy, J. Mater Eng. Performance 23 (2014) 819-825.

DOI: 10.1007/s11665-013-0814-6

[7] M. Kvapilova, P. Kral, J. Dvorak, V.Sklenicka, High temperature creep behaviour of cast nickel-based superalloys INC 713 LC, B1914 and MAR -M247, Metals 11 (2021) No.152.

DOI: 10.3390/met11010152

[8] V. Sklenička, M. Kvapilová, P. Král, J. Dvořák, M. Svoboda, B. Podhorná, J. Zýka, K. Hrbáček, A. Joch, Degradation processes in high-temperature creep of cast cobalt-based superalloys, Mater. Charact. 144 (2018) 479-489.

DOI: 10.1016/j.matchar.2018.08.006

[9] K. Maruyama, Fracture mechanism map and fundamental aspects of creep fracture, in F. Abe, T-U. Kern, R. Viswanathan (Eds.), Creep-resistant steel; Woodhead Publishing Ltd., Cambridge, England, 2008, Chapter No. 12, pp.350-364.

DOI: 10.1533/9781845694012.2.350

[10] J. Čadek, Creep in metallic materials, Academia, Prague, (1988).

[11] M.J. Starink, R.C. Thomson, Modelling microstructural evolution in conventionally cast Ni-based superalloys during high temperature service, in: Strang A., McLean M (Eds.), Modelling of microstructural evolution in creep resistant materials, IOM Communications Ltd., London, UK, 19998, pp.357-371.

DOI: 10.1887/0750307420/b873c23

[12] H. Riedel, Fracture at High Temperatures, Springer-Verlag, Berlin, Germany, (1987).

[13] C.C. Law, M.J. Blackburn, Creep-rupture in powder metallurgical nickel-base super-alloys at intermediate temperatures, Met. Trans. A 11 (1980) 495-507.

DOI: 10.1007/bf02654573

[14] K. Shiokawa, J.R. Weertman, Studies of nucleation mechanisms and the role of residual stresses in the grain boundary cavitation of a super-alloy. Acta Metall. 31 (1983) 993-1004.

DOI: 10.1016/0001-6160(83)90194-3

[15] V. Sklenička, High temperature intergranular damage and fracture, Mater. Sci. Eng. A 234 (1997) 30-36.
