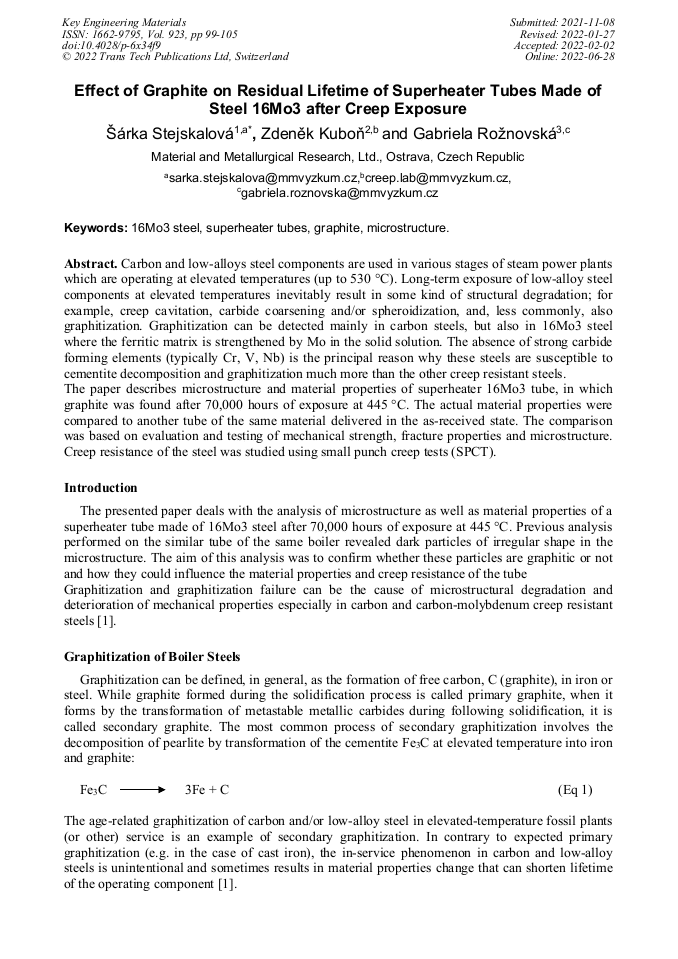

Effect of Graphite on Residual Lifetime of Superheater Tubes Made of Steel 16Mo3 after Creep Exposure

Abstract:

Carbon and low-alloys steel components are used in various stages of steam power plants which are operating at elevated temperatures (up to 530°C). Long-term exposure of low-alloy steel components at elevated temperatures inevitably result in some kind of structural degradation; for example, creep cavitation, carbide coarsening and/or spheroidization, and, less commonly, also graphitization. Graphitization can be detected mainly in carbon steels, but also in 16Mo3 steel where the ferritic matrix is strengthened by Mo in the solid solution. The absence of strong carbide forming elements (typically Cr, V, Nb) is the principal reason why these steels are susceptible to cementite decomposition and graphitization much more than the other creep resistant steels. The paper describes microstructure and material properties of superheater 16Mo3 tube, in which graphite was found after 70,000 hours of exposure at 445 °C. The actual material properties were compared to another tube of the same material delivered in the as-received state. The comparison was based on evaluation and testing of mechanical strength, fracture properties and microstructure. Creep resistance of the steel was studied using small punch creep tests (SPCT).

• Periodical: Key Engineering Materials (Volume 923)
• Pages: 99-105
• DOI: https://doi.org/10.4028/p-6x34f9
• Online since: June 2022
• Authors: Šárka Stejskalová*, Zdeněk Kuboň, Gabriela Rožnovská
• Keywords: 16Mo3 Steel, Graphite, Microstructure, Superheater Tubes

References

[1] FOULDS, R., VISWANATHAN, R., Graphitization of Steels in Elevated-Temperature Service, J. Mater. Eng. Perform., 2001, 10(4), p.484–492.

DOI: 10.1361/105994901770344935

[2] FARROW, M., The graphitization of low alloy steels, Steels for reactor pressure circuits, Special Report No. 69, THE IRON AND STEEL INSTITUTE1961, pp.89-100.

[3] FABRITIUS, H., Stahl und Eisen, 1971, p.1073.

[4] SOBOTKA, J., VODÁREK, V., TOMÁŠOVÁ, M., SOBOTKOVÁ, M., On the question of graphite formation during creep exposure of low alloy steel 15 020, in Czech, Hutník, Volume 36, 1986, pp.267-274.

[5] Stejskalová., Š. and co., Assessment of the residual lifetime of the superheater tube of the boiler K5 of the Krnov heating plant, Technical report T- 50/2019,in Czech, Ostrava Material and Metallurgical research, Ltd.,November (2019).

[6] ČSN EN 10216-2+A2 Seamless steel tubes for pressure vessels and equipment - Technical delivery conditions - Part 2: Alloy and non-alloy steel tubes with guaranteed elevated temperature properties. 2014BHARADVAJ, M., Study of Graphitization in Carbon Steel Weldments for Remaining Life Assessment, PhD diss, University of Tennessee, (2016).

DOI: 10.3403/02591066
