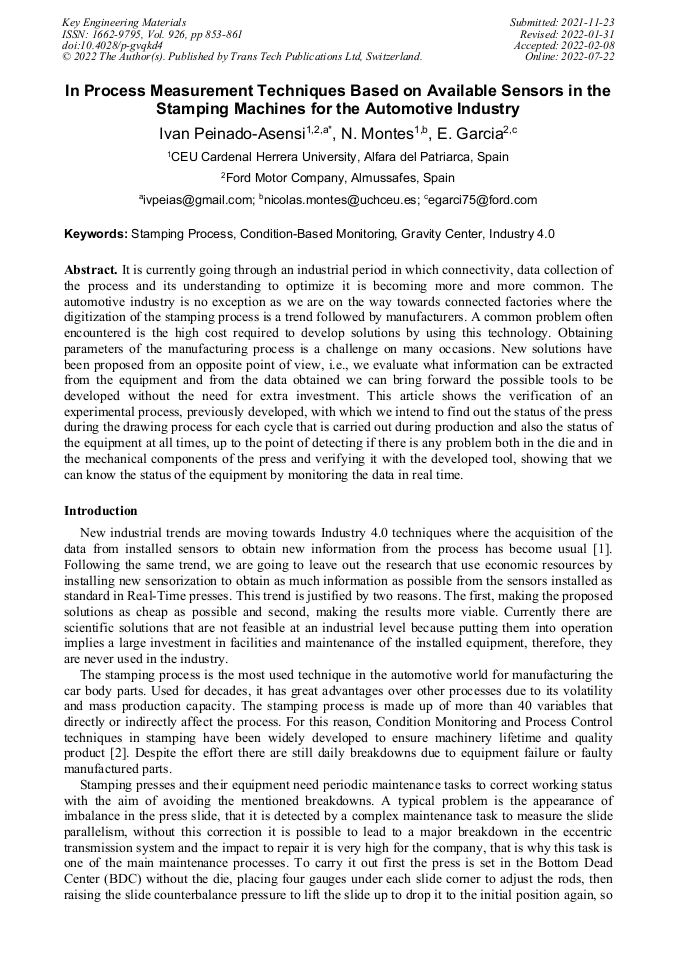

In Process Measurement Techniques Based on Available Sensors in the Stamping Machines for the Automotive Industry

Abstract:

We are currently going through an industrial period in which connectivity, data collection of the process and its understanding to optimize it is becoming more and more common. The automotive industry is no exception as we are on the way towards connected factories where the digitization of the stamping process is a trend followed by manufacturers. A common problem often encountered is the high cost required to develop solutions by using this technology. Obtaining parameters of the manufacturing process is a challenge on many occasions. New solutions have been proposed from an opposite point of view, i.e., we evaluate what information can be extracted from the equipment and from the data obtained we can bring forward the possible tools to be developed without the need for extra investment. This article shows the verification of an experimental process, previously developed, with which we intend to find out the status of the press during the drawing process for each cycle that is carried out during production and also the status of the equipment at all times, up to the point of detecting if there is any problem both in the die and in the mechanical components of the press and verifying it with the developed tool, showing that we can know the status of the equipment by monitoring the data in real time.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 853-861
• DOI: https://doi.org/10.4028/p-gvqkd4
• Online since: July 2022
• Authors: Ivan Peinado-Asensi*, Nicolas Montes, E. García
• Keywords: Condition-Based Monitoring, Gravity Center, Industry 4.0, Stamping Process

References

[1] E. Garcia, N. Montés. Mini-term a novel paradigm for fault detection. IFAC-PapersOnLine, Vol 52, Is 13, pp.165-170, (2019).

DOI: 10.1016/j.ifacol.2019.11.170

[2] Y. Lim, A. G. Ulsoy, and R. Venugopal. Process control for sheet-metal stamping. Springer, New York, (2013).

[3] Schuler GmbH, Metal Forming Handbook, Springer, Berlin, Heidelberg, (1998).

[4] S. Purr, J. Meinhardt, A. Lipp, A. Werner, M. Ostermair, & B. Glück. Stamping plant 4.0–basics for the application of data mining methods in manufacturing car body parts. In Key Engineering Materials, 639 (2015) 21-30, Trans Tech Publications Ltd.

DOI: 10.4028/www.scientific.net/kem.639.21

[5] I. Peinado-Asensi, E. Garcia, N. Montés. Towards Real Time Predictive System for Mechanical Stamping Presses to Assure Correct Slide Parallelism. SciTePress, ICINCO, (2021).

DOI: 10.5220/0010547200002994

[6] B. M. Voss, M. P. Pereira, B. F. Rolfe, M. C. Doolan. Using stamping punch force variation for the identification of changes in lubrication and wear mechanism. IOP Publishing. In Journal of Physics: Conference Series. 896 (2017) 012028.

DOI: 10.1088/1742-6596/896/1/012028

[7] P. Niemietz, J. Pennekamp, I. Kunze, D. Trauth, K. Wehrle, T. Bergs. Stamping process modelling in an Internet of Production. Procedia Manufacturing, 49 (2020) 61-68.

DOI: 10.1016/j.promfg.2020.06.012

[8] C. K. H. Koh, J. Shi, J. M. Black, & J. Ni. Tonnage signature attribute analysis for stamping process. Transactions – North American Manufacturing Research Institution of SME, 193-198, (1996).

[9] J. Jin, J. Shi. Diagnostic feature extraction from stamping tonnage signals based on design of experiments. J. Manuf. Sci. Eng. 122.2 (2000) 360-369.

DOI: 10.1115/1.538926

[10] A. M. Bassiuny, L. Xiaoli, R. Du. Fault diagnosis of stamping process based on empirical mode decomposition and learning vector quantization. International Journal of Machine Tools and Manufacture 47.15 (2007) 2298-2306.

DOI: 10.1016/j.ijmachtools.2007.06.006

[11] C. Zhang, J. Liang, D. Yu, H. Xiao, M. Wang. Application MEMS multi-sensors for monitoring the forming load of stamping press. 2012 IEEE International Conference on Mechatronics and Automation. IEEE, (2012) 1518-1523.

DOI: 10.1109/icma.2012.6284362

[12] T. Tsuruya, M. Danseko, K. Sasaki, S. Honda, R. Takeda. Process monitoring of deep drawing using machine learning. In 2019 IEEE/ASME International Conference on Advanced Intelligent Mechatronics (AIM) (2019) 1227-1232. IEEE.

DOI: 10.1109/aim.2019.8868512

[13] L. Wang, and T. C. Lee. Controlled strain path forming process with space variant blank holder force using RSM method. Journal of Materials Processing Technology 167.2-3 (2005) 447-455.

DOI: 10.1016/j.jmatprotec.2005.06.017
