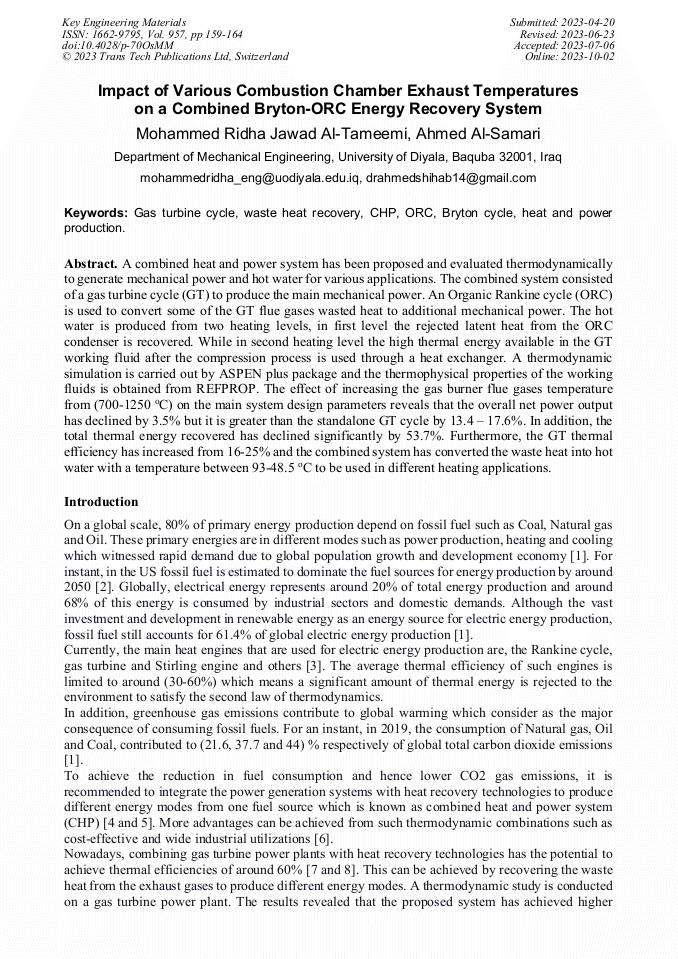

Impact of Various Combustion Chamber Exhaust Temperatures on a Combined Bryton-ORC Energy Recovery System

Abstract:

A combined heat and power system has been proposed and evaluated thermodynamically to generate mechanical power and hot water for various applications. The combined system consisted of a gas turbine cycle (GT) to produce the main mechanical power. An Organic Rankine cycle (ORC) is used to convert some of the GT flue gases wasted heat to additional mechanical power. The hot water is produced from two heating levels, in first level the rejected latent heat from the ORC condenser is recovered. While in second heating level the high thermal energy available in the GT working fluid after the compression process is used through a heat exchanger. A thermodynamic simulation is carried out by ASPEN plus package and the thermophysical properties of the working fluids is obtained from REFPROP. The effect of increasing the gas burner flue gases temperature from (700-1250 °C) on the main system design parameters reveals that the overall net power output has declined by 3.5% but it is greater than the standalone GT cycle by 13.4 – 17.6%. In addition, the total thermal energy recovered has declined significantly by 53.7%. Furthermore, the GT thermal efficiency has increased from 16-25% and the combined system has converted the waste heat into hot water with a temperature between 93-48.5 °C to be used in different heating applications.

• Periodical: Key Engineering Materials (Volume 957)
• Pages: 159-164
• DOI: https://doi.org/10.4028/p-70OsMM
• Online since: October 2023
• Authors: Mohammed Ridha Jawad Al-Tameemi*, Ahmed Al-Samari
• Keywords: Bryton Cycle, CHP, Gas Turbine Cycle, Heat and Power Production, ORC, Waste Heat Recovery

References

[1] F. Birol, "Key World Energy Statistics", IEA, pp.6-7, (2021).

[2] S. Nalley, "Annual Energy Outlook 2022 with projections to 2050". US Energy Information Administration, 2022.

[3] S. Sanaye, M. Meybodi and S. Shokrollahi, "Selecting the prime movers and nominal powers in combined heat and power systems", Appl. Therm. Eng., Vol. 28, Iss. 10, p.1177–88, (2008).

DOI: 10.1016/j.applthermaleng.2007.08.003

[4] M. Al-Tameemi, Thermal analysis of combined Organic Rankine-Vapour compression system for heating and cooling applications, PhD thesise, University of Glasgow, (2019).

[5] H. Jouhara, N. Khordehgah, S. Almahmoud, B. Delpech, A. Chauhan and S. Tassou, "Waste heat recovery technologies and applications", Therm. Sci. Eng. Prog., Vol. 6, p.268–89, (2018).

DOI: 10.1016/j.tsep.2018.04.017

[6] J. Nondy and T. Gogoi, "Tri-objective optimization of two recuperative gas turbine-based CCHP systems and 4E analyses at optimal conditions", Appl. Energy, Vol. 323, No. 119582, (2022).

DOI: 10.1016/j.apenergy.2022.119582

[7] M. Valenti, "Reaching for 60 Percent", Mechanical Engineering, Vol. 124, Iss. 04, pp.35-39, (2002).

DOI: 10.1115/1.2002-apr-1

[8] D. Robb, "CCGT: Breaking the 60 per cent efficiency barrier", Power Engineering International, Vol. 18, p.28–32, (2010).

[9] A., Aghaei, and R. Saray, "Optimization of a combined cooling, heating, and power (CCHP) system with a gas turbine prime mover: A case study in the dairy industry", Energy, Vol. 229, No. 120788, (2021).

DOI: 10.1016/j.energy.2021.120788

[10] S. Kang, H. Li, J. Lei, L. Liu, B. Cai and G. Zhang, "A new utilization approach of the waste heat with mid-low temperature in the combined heating and power system integrating heat pump", Appl. Energy, Vol. 160, pp.185-193, (2017).

DOI: 10.1016/j.apenergy.2015.09.054

[11] B. Cai, H. Li, Y. Hu, L. Liu, J. Huang, A. Lazzaretto and G. Zhang, "Theoretical and experimental study of combined heat and power (CHP) system integrated with ground source heat pump (GSHP)", Appl. Therm. Eng., Vol. 127, pp.16-27, (2017).

DOI: 10.1016/j.applthermaleng.2017.07.154

[12] D. Balanescu and V . Homutescu, "Perfromnace analysis of a gas turbine combined cycle power plant with waste heat recovery in Organic Rankine Cycle", The 12th Int. Conference Interdisciplinarity in Engineering, Tirgu Mures, Romania, Vol. 32, p.520–528, (2019).

DOI: 10.1016/j.promfg.2019.02.248

[13] R. Farmer, B. deBiasi, J. Isles, H. Jaeger, M. Asquino, M. Cornett, J. Hanson and V. deBiasi, "Gas Turbine World Performance Specs", 30th edition, Vol. 44, No. 1, p.7, (2014).
