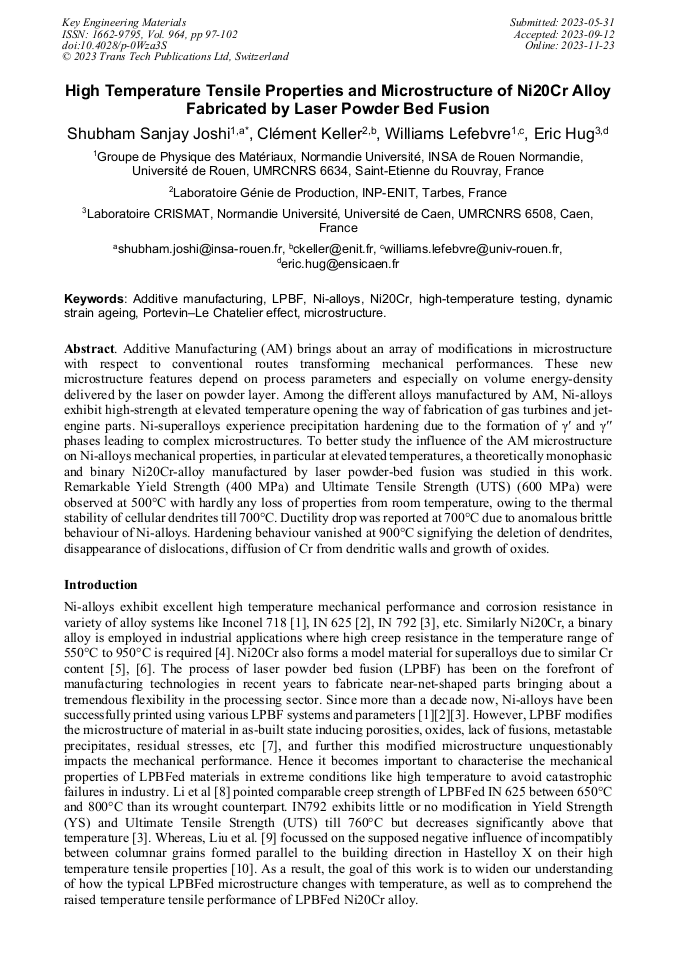

High Temperature Tensile Properties and Microstructure of Ni20Cr Alloy Fabricated by Laser Powder Bed Fusion

Abstract:

Additive Manufacturing (AM) brings about an array of modifications in microstructure with respect to conventional routes transforming mechanical performances. These new microstructure features depend on process parameters and especially on volume energy-density delivered by the laser on powder layer. Among the different alloys manufactured by AM, Ni-alloys exhibit high-strength at elevated temperature opening the way of fabrication of gas turbines and jet-engine parts. Ni-superalloys experience precipitation hardening due to the formation of γ′ and γ′′ phases leading to complex microstructures. To better study the influence of the AM microstructure on Ni-alloys mechanical properties, in particular at elevated temperatures, a theoretically monophasic and binary Ni20Cr-alloy manufactured by laser powder-bed fusion was studied in this work. Remarkable Yield Strength (400 MPa) and Ultimate Tensile Strength (UTS) (600 MPa) were observed at 500°C with hardly any loss of properties from room temperature, owing to the thermal stability of cellular dendrites till 700°C. Ductility drop was reported at 700°C due to anomalous brittle behaviour of Ni-alloys. Hardening behaviour vanished at 900°C signifying the deletion of dendrites, disappearance of dislocations, diffusion of Cr from dendritic walls and growth of oxides.

• Periodical: Key Engineering Materials (Volume 964)
• Pages: 97-102
• DOI: https://doi.org/10.4028/p-0Wza3S
• Online since: November 2023
• Authors: Shubham Sanjay Joshi*, Clément Keller, Williams Lefebvre, Eric Hug
• Keywords: Additive Manufacturing, Dynamic Strain Ageing, High-Temperature Testing, LPBF, Microstructure, Ni20Cr, Ni-Alloys, Portevin-Le Châtelier Effect

References

[1] E. Paccou et al., "Investigations of powder reusing on microstructure and mechanical properties of Inconel 718 obtained by additive manufacturing," Materials Science and Engineering: A, vol. 828, p.142113, Nov. 2021.

DOI: 10.1016/j.msea.2021.142113

[2] A. Banerjee et al., "The mechanical response of additively manufactured IN625 thin-walled structures," Scripta Materialia, vol. 205, p.114188, Dec. 2021.

DOI: 10.1016/j.scriptamat.2021.114188

[3] B. Du, L. Sheng, Z. Hu, C. Cui, J. Yang, and X. Sun, "Investigation on the microstructure and tensile behavior of a Ni-based IN792 superalloy," Advances in Mechanical Engineering, vol. 10, no. 2, p.1687814017752167, Feb. 2018.

DOI: 10.1177/1687814017752167

[4] M. Rudloff, "Etude des mécanismes de transition volume/surface du comportement mécanique d'un alliage Ni20Cr," PhD dissertation, Université Caen Normandie, 2010.

[5] G. Calvarin-Amiri, A. F. Gourgues, A. M. Huntz, and R. Molins, "Effect of environment on the mechanical behavior of Ni–20Cr thin strip," Materials Science and Engineering: A, vol. 298, no. 1, p.200–208, Jan. 2001.

DOI: 10.1016/S0921-5093(00)01319-8

[6] S. S. Joshi, C. Keller, L. Mas, W. Lefebvre, E. Hug, and J.-P. Couzinie, "On the origin of the strain hardening mechanisms of Ni20Cr alloy manufactured by laser powder bed fusion," International Journal of Plasticity, vol. 165, p.103610, Jun. 2023.

DOI: 10.1016/j.ijplas.2023.103610

[7] S. Gorsse, C. Hutchinson, M. Gouné, and R. Banerjee, "Additive manufacturing of metals: a brief review of the characteristic microstructures and properties of steels, Ti-6Al-4V and high-entropy alloys," Science and Technology of Advanced Materials, vol. 18, no. 1, p.584–610, Dec. 2017.

DOI: 10.1080/14686996.2017.1361305

[8] S. Li, Q. Wei, Y. Shi, Z. Zhu, and D. Zhang, "Microstructure Characteristics of Inconel 625 Superalloy Manufactured by Selective Laser Melting," Journal of Materials Science & Technology, vol. 31, no. 9, p.946–952, Sep. 2015.

DOI: 10.1016/j.jmst.2014.09.020

[9] M. Liu et al., "High-Temperature Tensile Properties of Hastelloy X Produced by Laser Powder Bed Fusion with Different Heat Treatments," Metals, vol. 12, no. 9, Art. no. 9, Sep. 2022.

DOI: 10.3390/met12091435

[10] M. Montero Sistiaga, S. Nardone, C. Hautfenne, and J. Van Humbeeck, "Effect of heat treatment of 316L stainless steel produced by selective laser melting (SLM)," in Proceedings of the 27th Annual International Solid Freeform Fabrication Symposium - An Additive Manufacturing Conference, Solid Freeform Fabrication, Aug. 2016, p.558–565. Accessed: Jun. 14, 2022. [Online]. Available: https://lirias.kuleuven.be/1942281

DOI: 10.32656/2018_29sff_symposium

[11] Y. M. Wang et al., "Additively manufactured hierarchical stainless steels with high strength and ductility," Nature Mater, vol. 17, no. 1, Art. no. 1, Jan. 2018.

DOI: 10.1038/nmat5021

[12] K.-S. Kim, T.-H. Kang, M. E. Kassner, K.-T. Son, and K.-A. Lee, "High-temperature tensile and high cycle fatigue properties of inconel 625 alloy manufactured by laser powder bed fusion," Additive Manufacturing, vol. 35, p.101377, Oct. 2020, doi: 10.1016/j.addma. 2020.101377.

DOI: 10.1016/j.addma.2020.101377
