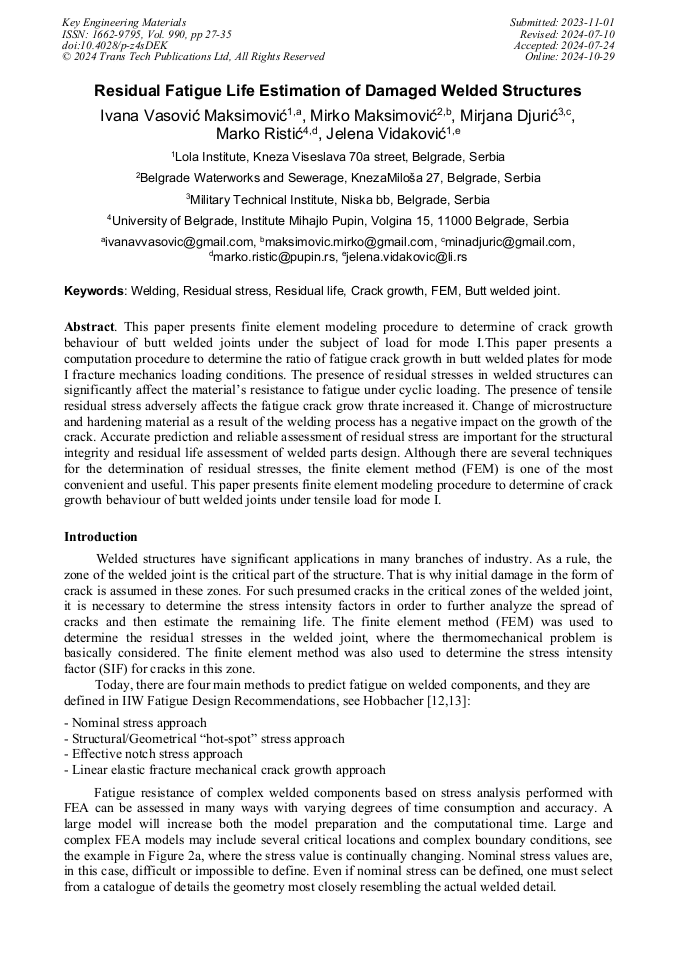

Residual Fatigue Life Estimation of Damaged Welded Structures

Abstract:

This paper presents a finite element modeling procedure to determine of crack growth behaviour of butt welded joints under the subject of load for mode I. This paper presents a computation procedure to determine the ratio of fatigue crack growth in butt welded plates for mode I fracture mechanics loading conditions. The presence of residual stresses in welded structures can significantly affect the material’s resistance to fatigue under cyclic loading. The presence of tensile residual stresses adversely affects the fatigue crack growth rate increased it. Change of microstructure and hardening material as a result of the welding process also has a negative impact on the growth of the crack. Accurate prediction and reliable assessment of the residual stress are important for the structural integrity and residual life assessment of welded parts design. Although there are several techniques for the determination of residual stresses, the finite element method (FEM) is one of the most convenient and useful. This paper presents a finite element modeling procedure to determine of crack growth behaviour of butt welded joints under tensile load for mode I. Keywords: Welding, Residual stress, Residual life, Crack growth, FEM, Butt welded joint

• Periodical: Key Engineering Materials (Volume 990)
• Pages: 27-35
• DOI: https://doi.org/10.4028/p-z4sDEK
• Online since: October 2024
• Authors: Ivana Vasovic Maksimović*, Mirko Maksimović, Mirjana Djuric, Marko Ristic, Jelena Vidakovic
• Keywords: Butt Welded Joint, Crack Growth, FEM, Residual Life, Residual Stress, Welding

References

[1] G. Servette, X. Yhang: Predicted fatigue crack growth rate in a welded butt joint: the role of effective R ratio in accounting for residual stresses effects, Engineering Mechanical Fracture, vol.76 (2009), pp.1589-15602

DOI: 10.1016/j.engfracmech.2009.02.015

[2] Z. Barsoum, I. Barsoum: Residual stress effects on fatigue life of welded structures using LEFM, Engineering Failure Analysis, vol.16 (2009), pp.449-467

DOI: 10.1016/j.engfailanal.2008.06.017

[3] Y. Lei, N.P. O'Dowd, G.A. Webster: Fracture mechanics analysis of a crack in residual stress filed, International Journal Fracture, vol.106 (2000), pp.195-216

[4] Y.C Hou., J. Pan: A fracture parameter for welded structures with residual stresses, Computation Mechanics, vol.22 (1998), pp.281-288

DOI: 10.1007/s004660050360

[5] M.J. Pavier, C.G.S. Poussard, D.J. Smith:Effect of residual stress around lod worked holes on fracture under superimposed mechanical load, Engineering Mechanical Fracture, vol.63 (1999), pp.751-773

DOI: 10.1016/s0013-7944(99)00050-8

[6] K.H. Chank, C.H. Lee: Residual stresses and fracture mechanics analysis of a crack in welds of high strength steel, Engineering Fracture Mechanics, vol.74 (2007), pp.980-994.

DOI: 10.1016/j.engfracmech.2006.08.012

[7] G. Servetti, X. Yhang: Predicted fatigue crack growth rate in a welded butt joint: the role of effective R ratio in accounting for residual stresses effect. Engineering Fracture Mechanics, vol.76 (2009), pp.1589-1602

DOI: 10.1016/j.engfracmech.2009.02.015

[8] D. Stamenković, K. Maksimović, V. Nikolić-Stanojević, S. Maksimović, S. Stupar, I. Vasović: Fatigue Life Estimation of Notched Structural Components, Strojniški vestnik - Journal of Mechanical Engineering, Vol.56, No.12 (2010), pp.860-866

[9] S. Boljanović, S. Maksimović: Analysis of the crack growth propagation process under mixed mode loading, Engineering Fracture Mechanics, Vol. 78, No.8 (2011), pp.1565-1576

DOI: 10.1016/j.engfracmech.2011.02.003

[10] ANSYS Finite Element Software Code- Theoretical Mannuals

[11] T. Stenberg, E. Lindgren, Z. Barsoum, I. Barmicho, Fatigue assessment of cut edges in high strength steel – Influence of surface quality, Mat.-wiss. u. Werkstofftech, 48 (2017), p.1–14

DOI: 10.1002/mawe.201600707

[12] A. Hobbacher. Recommendation for fatigue design of welded joints and components. IIW document XIII-2151-07 / XV-1254-07

[13] Zuheir Barsoum, Guidelines for Fatigue and Static Analysis of Welded and Un-Welded Steel Structures, ISBN: 978-91-7873-478-8 KTH Royal Institute of Technology, Stockholm, (2020) TRITA-SCI-RAP
